Sugar Glider Prop Assembly

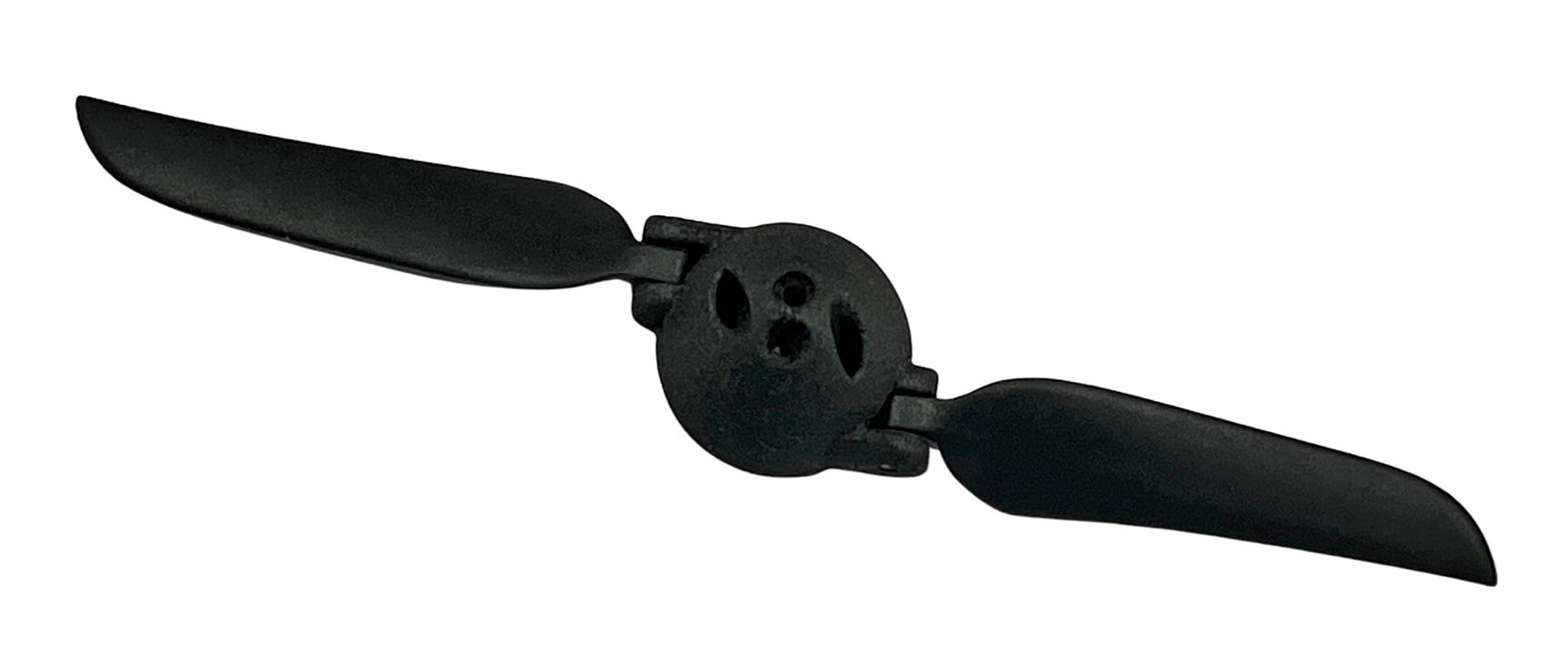

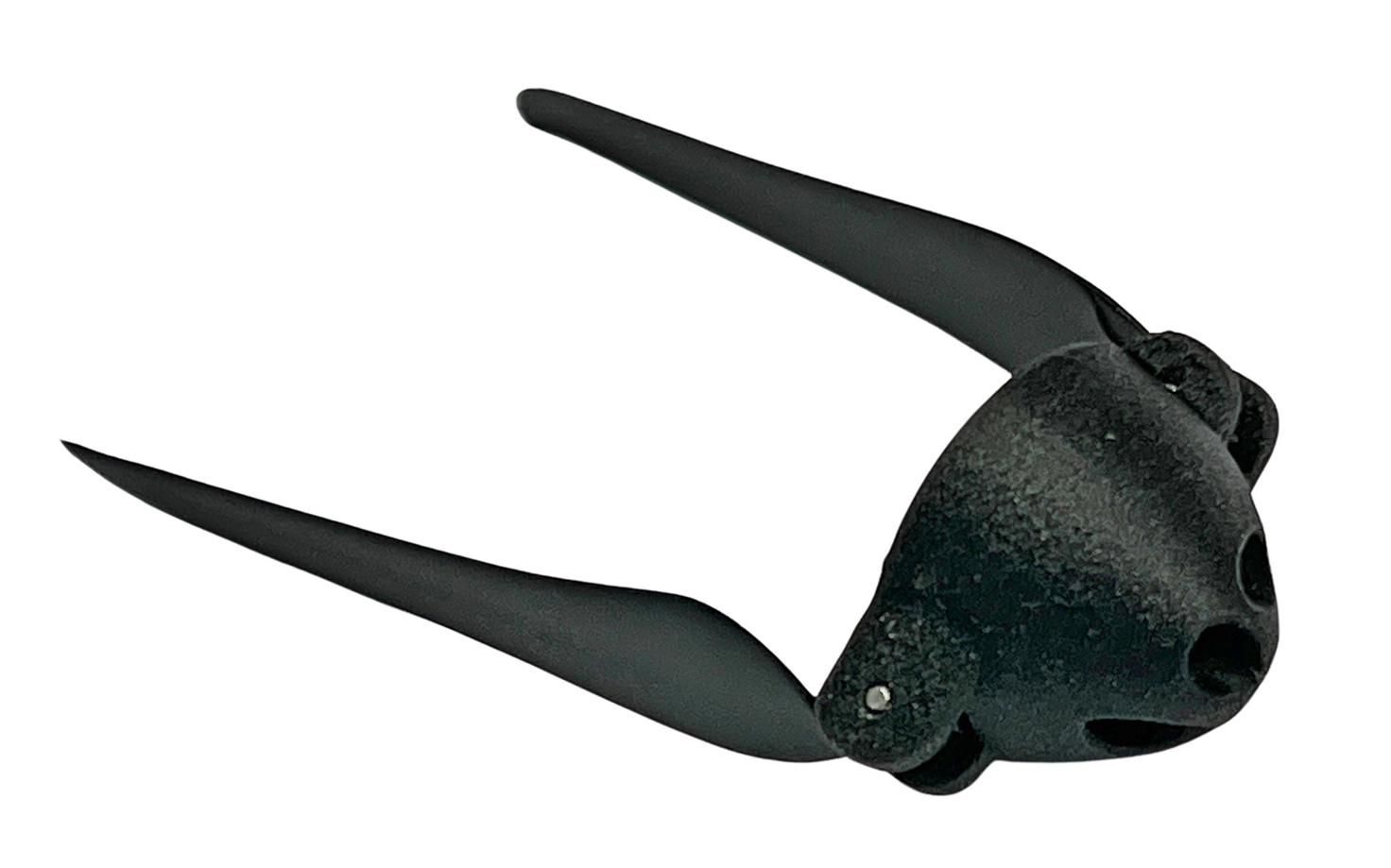

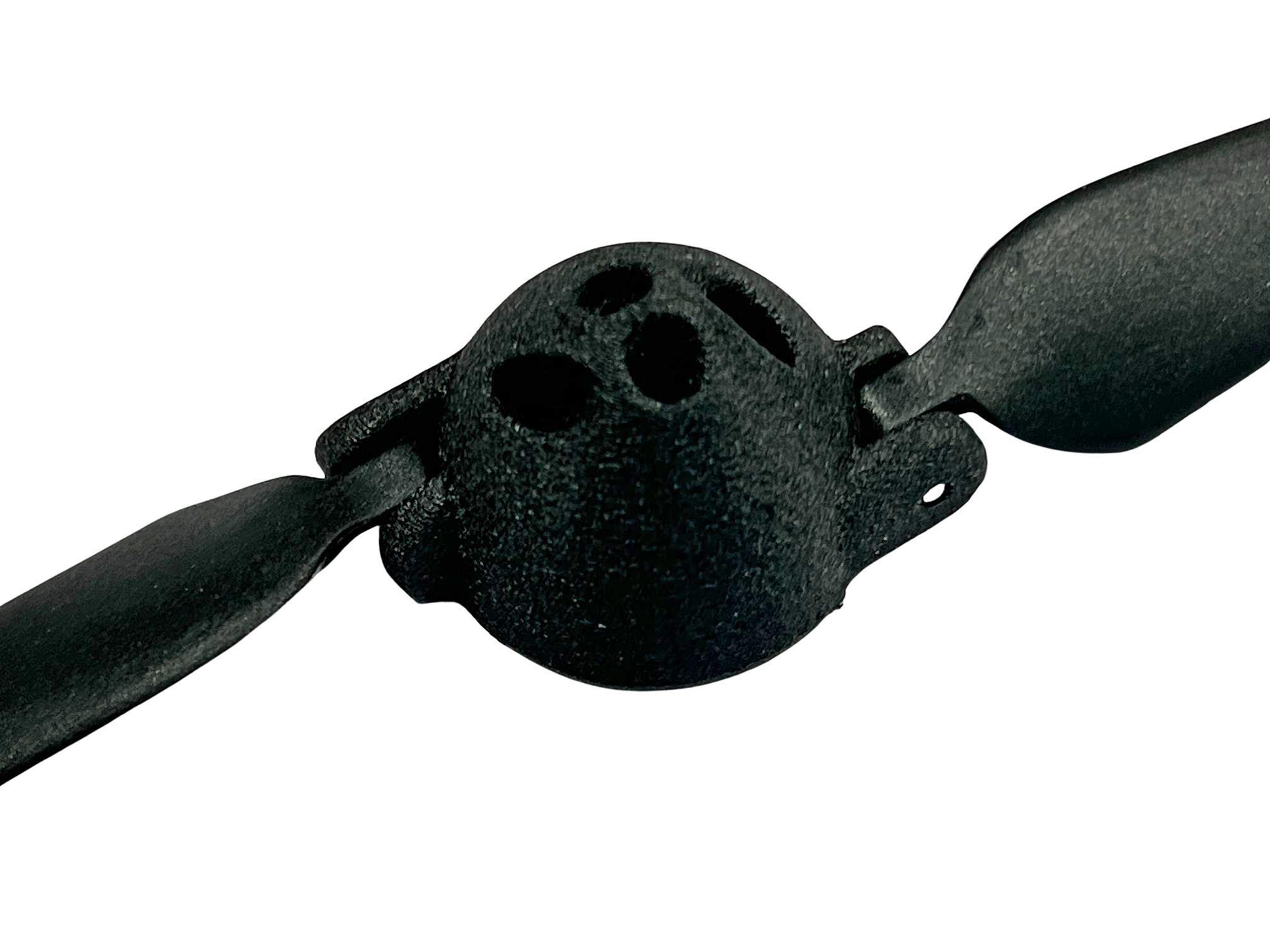

The Sugar Glider Prop Assembly consists of a clever 3D printed 25.5mm diameter folding spinner mated with a pair of lightweight plastic 5.5" x 3.3" folding prop bades.

The spinner cone encloses the T-Motor F1404 motor it is intended to be paired with, though it will probably work will other similar small outrunner motors.

Mounts using two M2 bolts onto the front of the motor (supplied with motor).

Sugar Glider Prop Assembly Specification
Diameter	25.5 mm
Motor shaft	N/A
Prop diameter	14 cm	5.5 in
Prop pitch	8.4 cm	3.3 in
Distance across hinge pins	26 mm
Prop hinge pin diameter	1.5 mm
Prop blade root width	4.1 mm
Weight	4.2 g
Max power	75 W
