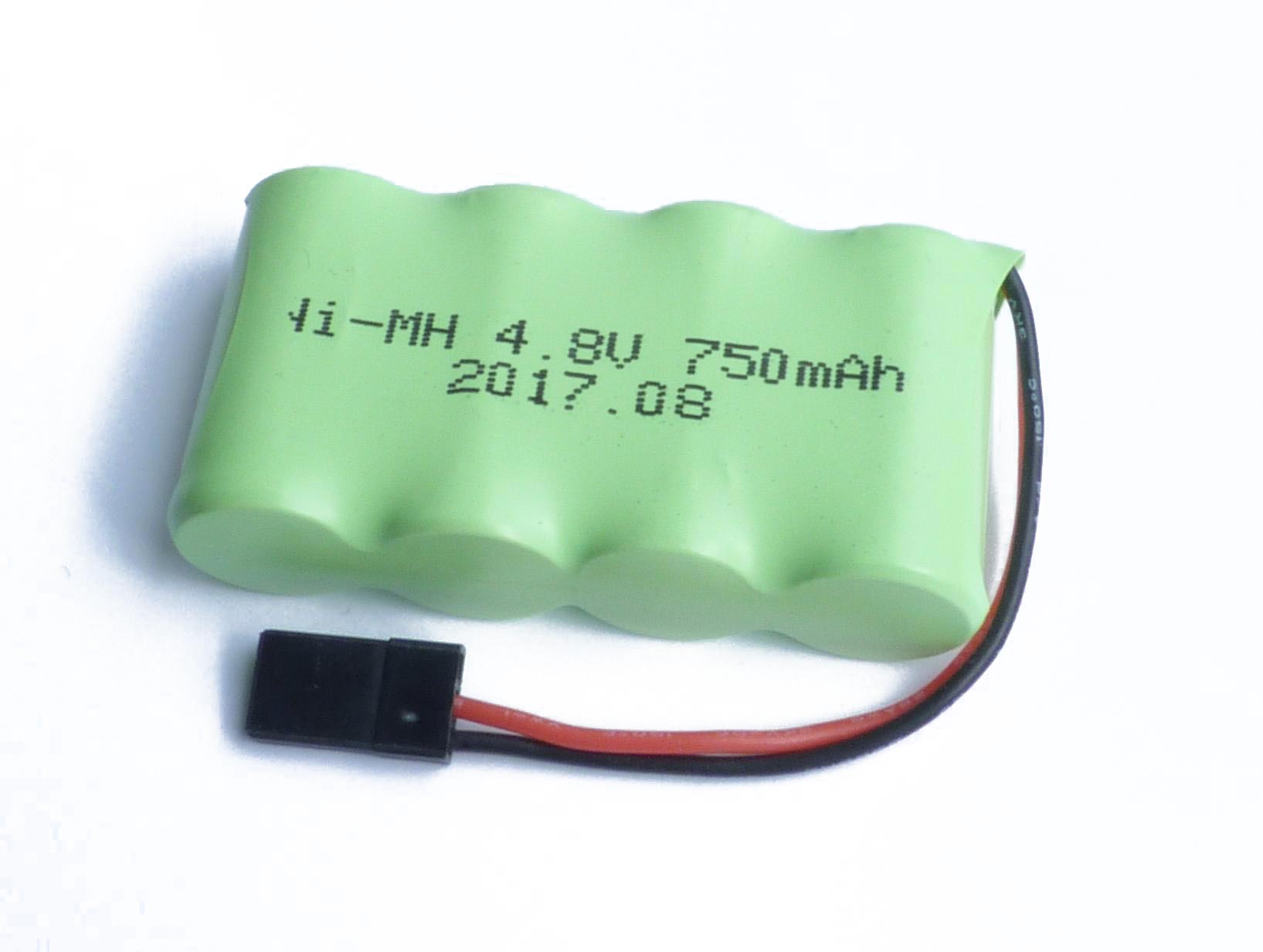

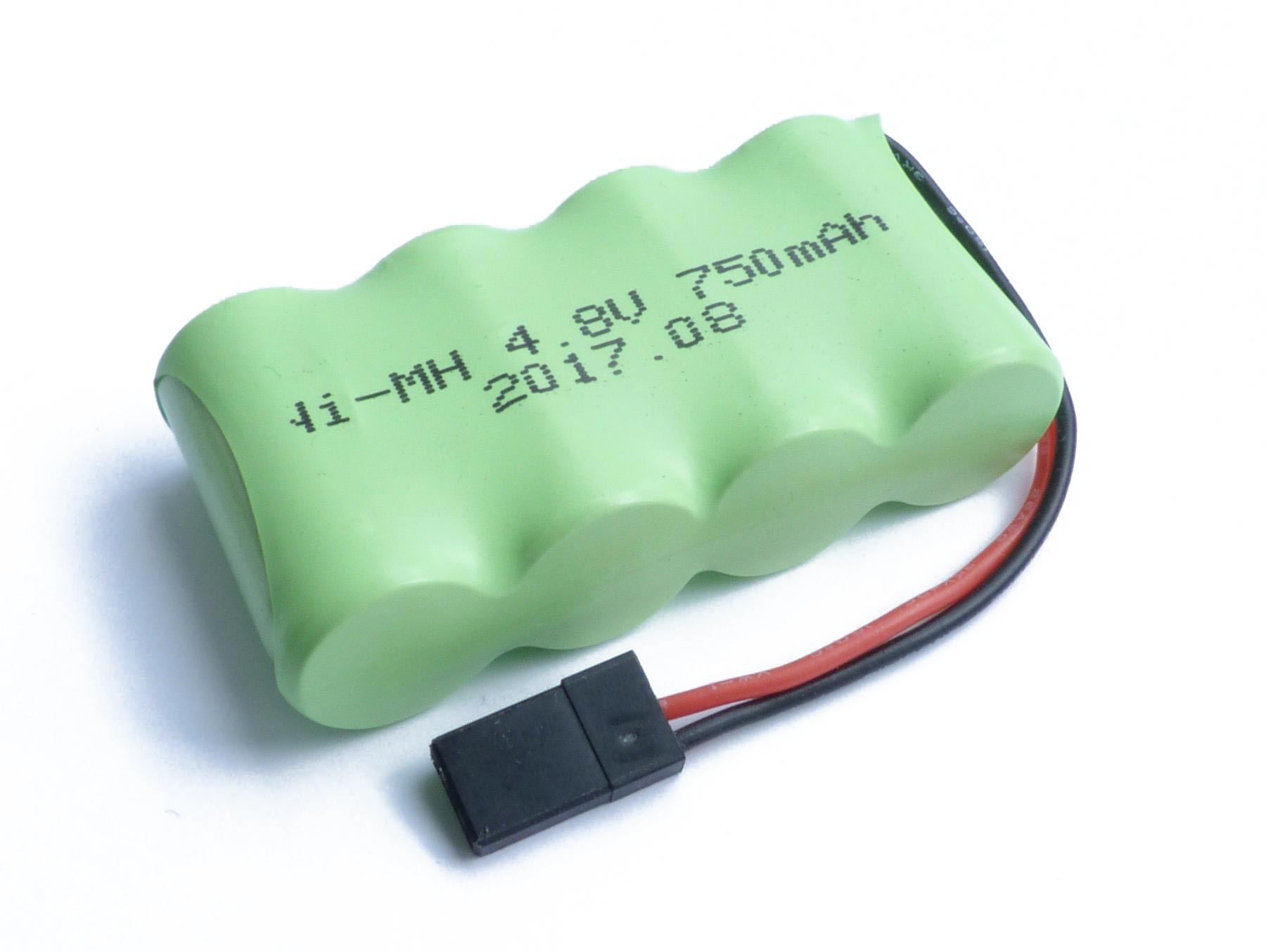

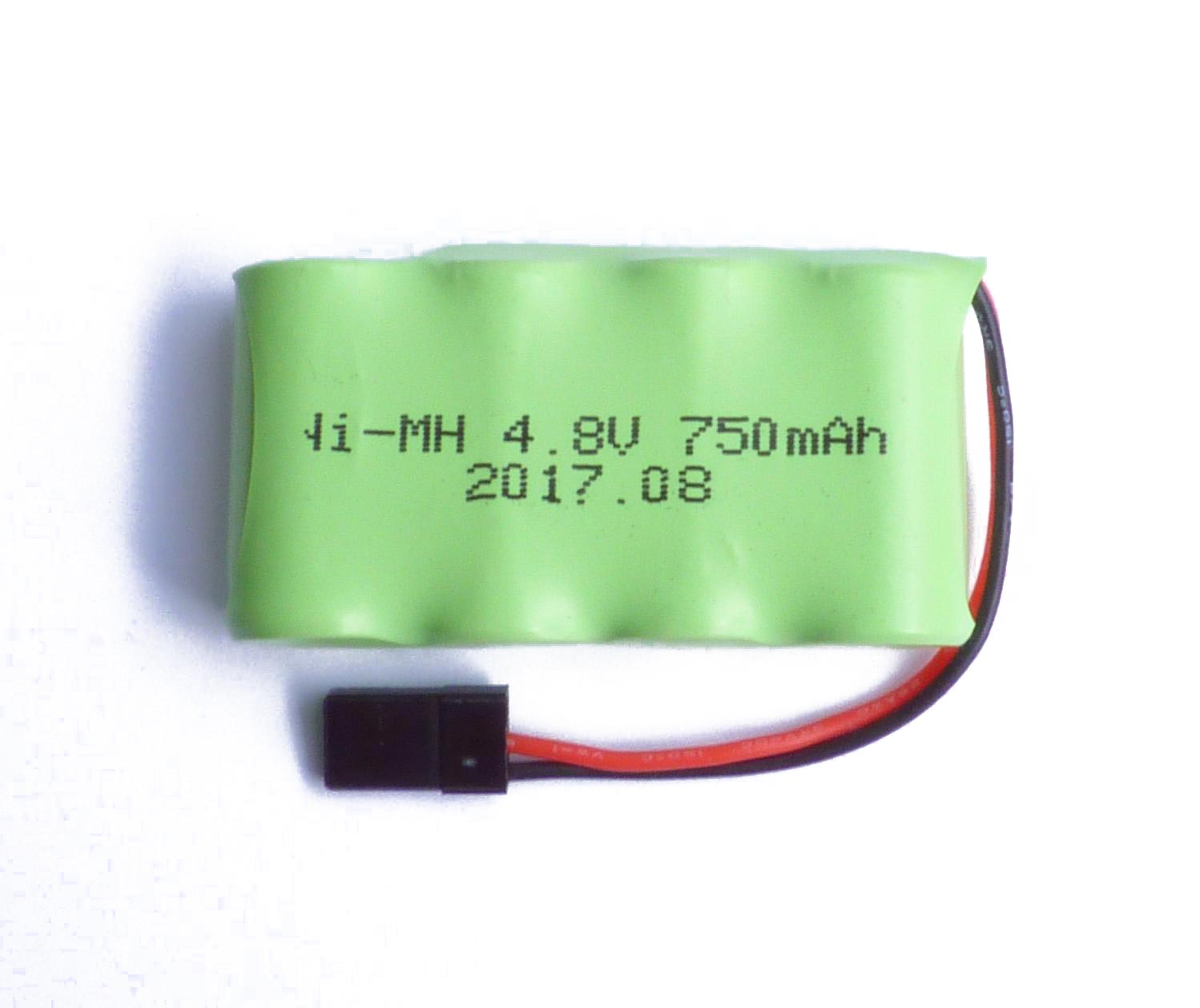

HyperFlight 700 mAh 4.8V NiMH Flat Battery

This high quality four cell 4.8V 700 mAh NiMH battery is suitable for many RC models. This battery is assembled from 4 x 2/3AA sized cells and is suitable for the Dream-Flight Ahi and similar models.

The battery comes with a universal (JR type) RC plug.

This battery should be trickle charged at 70 mA for approx 14 hrs. You can make up a charge lead using a 100 ohm 0.5W (or larger) resistor. Charge from a 12V DC voltage source.

This battery is similar in size to the Dream-Flight 700mAh NiMH battery supplied in the Ahi flight pack.

HyperFlight 700 mAh NiMH Battery Specification
Chemistry	Nickel Metal Hydride
Number of cells	4
Voltage	4.8V nominal
Capacity	700 mAh
Charge current range	50 mA - 200 mA
Trickle charge	70 mA for 14 hrs
Weight	502g
Length	57 mm
Width	30 mm
Height	14 mm
Lead length	10 cm
