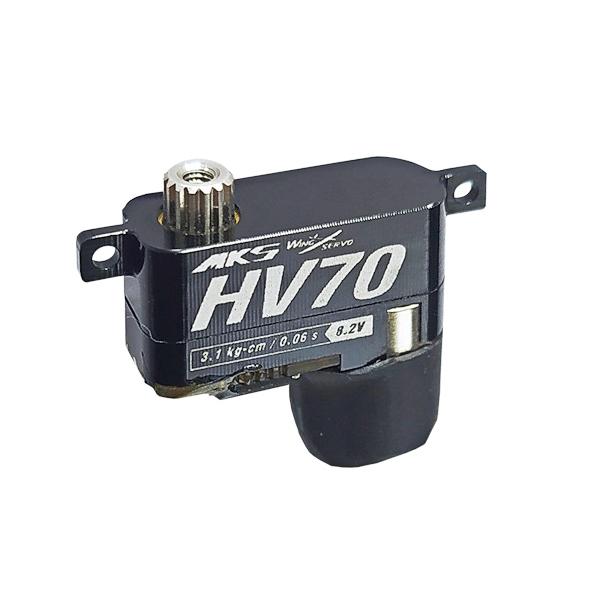

MKS HV70 Wing Servo - 3.1Kg.cm 0.06s 5.4g 7mm

The MKS HV70 is a version of the HV70 range with horizontal lugs (also called mounting tabs), to facilitate mounting in wings and tail surfaces

The MKS HV70 servo is tiny and is ideal for 1m DLGs, F3K, F3L, F5D, and all small models that require excellent precision, massive torque, and adequate speed. It is just 7 mm thick and has an incredible torque of 3.1Kg cm and an excellent speed of 0.06s per 60 degrees, at 8.2V.

Smaller than the lamented SD100/D47, smaller and lighter than the KST X06, and more powerful than both, it is undoubtedly the best small glider servo available in 2022.

The MKS HV70 is actually a low-medium-high voltage servo as it works on 1S and 2S LiPo as and well as 4.8V - 6V NiMH batteries.

The supplied accessories include a pulley type output disk, making this servo ideal for pull-spring tail surface connections, as popularised on DLGs but also finding favour in other classes of models. Although old school modellers are reticent about trying pull-spring it is actually very quick and easy to set up, and results in a lightweight and totally slop free control surface linkage. Easily implemented using our torque springs and pull cord sets.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

MKS HV70 Wing Servo Specifications

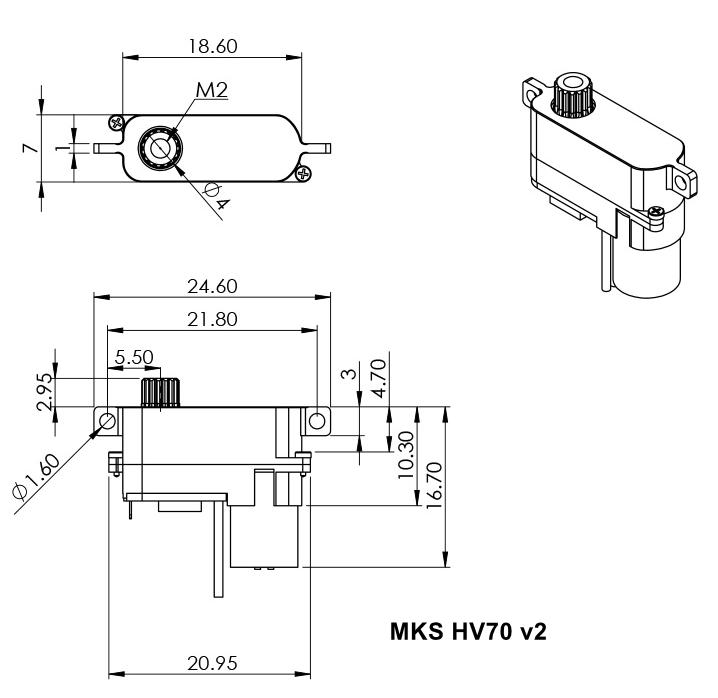

Body dimensions	18.6 mm wide x 7.0 mm thick x 16.7 mm high	0.73" wide x 0.28" thick x 0.66" high
Max dimensions	24.6 mm wide x 7.0 mm thick x 20.0 mm high	0.97" wide x 0.28" thick x 0.79" high
Stall torque (3.7V)	1.5 Kg.cm	21 oz.in
Stall torque (4.8V)	2 Kg.cm	28 oz.in
Stall torque (8.2V)	3.1 Kg.cm	43 oz.in
Weight	5.4 g	0.19 oz
Lead length	14 cm	5.5 in
Operating speed (3.7V)	0.125 sec/60°
Operating speed (4.8V)	0.11 sec/60°
Operating speed (8.2V)	0.06 sec/60°
Operating voltage	3.7V to 8.4V
Operating temperature	0 to 50 °C
Bearings	1 copper bushing
Gear material	7075 Chrome-Titanium alloy
Case material	6061 Aluminum alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs - (0°) 1520 µs- (R) 2120 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	1 plastic output arm, 1 plastic pulley, 1 arm retaining screw, 4 mounting screws
Optional accessories	Ply Frame For MKS HV70, MKS Metal Servo Output Arms for HV6120

We are now selling the updated HV70 v2 servo.
