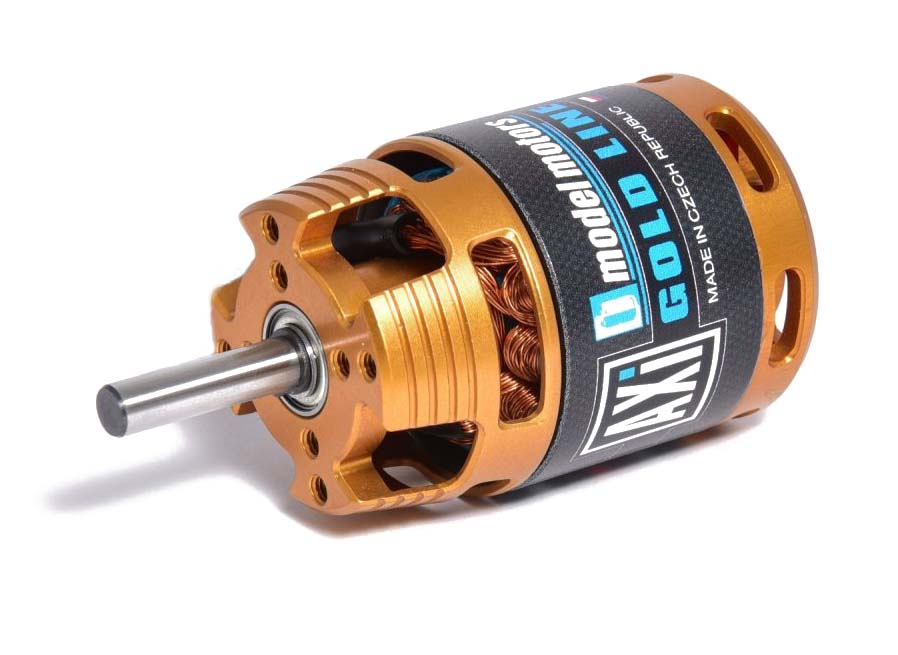

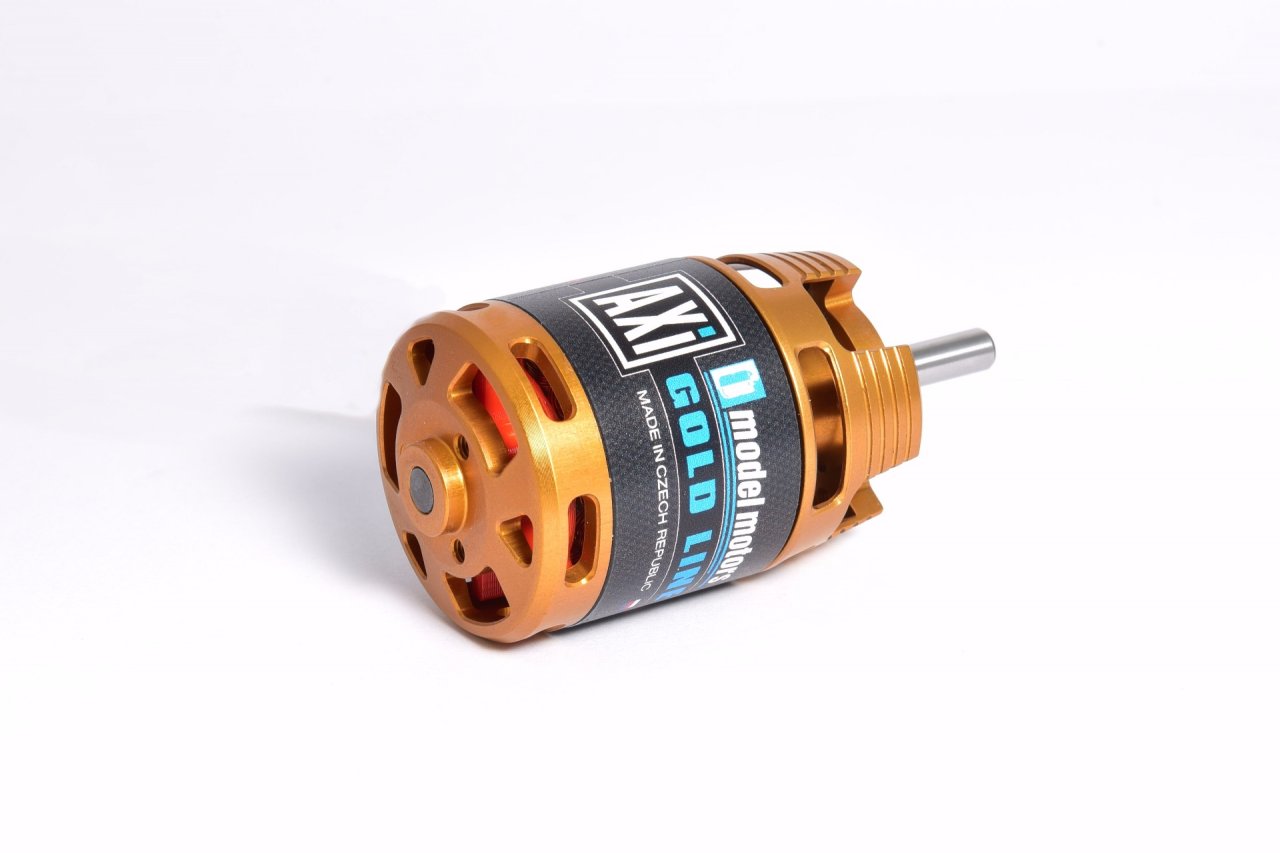

High torque brushless motor with rotating drum and high power neodym magnets suitable for gliders and hotliners up to 3000g weight. The hardened steel 5mm diameter shaft and is supported by four ball bearings and overall robust but lightweight construction ensure very long lifetime.
No. of cells 2-3 Li-Poly
Kv 1130 RPM/V
Max. efficiency 85%
Max. efficiency current 25-37 A
No load current 2,8 A
Current capacity 57A/60s
Internal Resistance 13 mohm

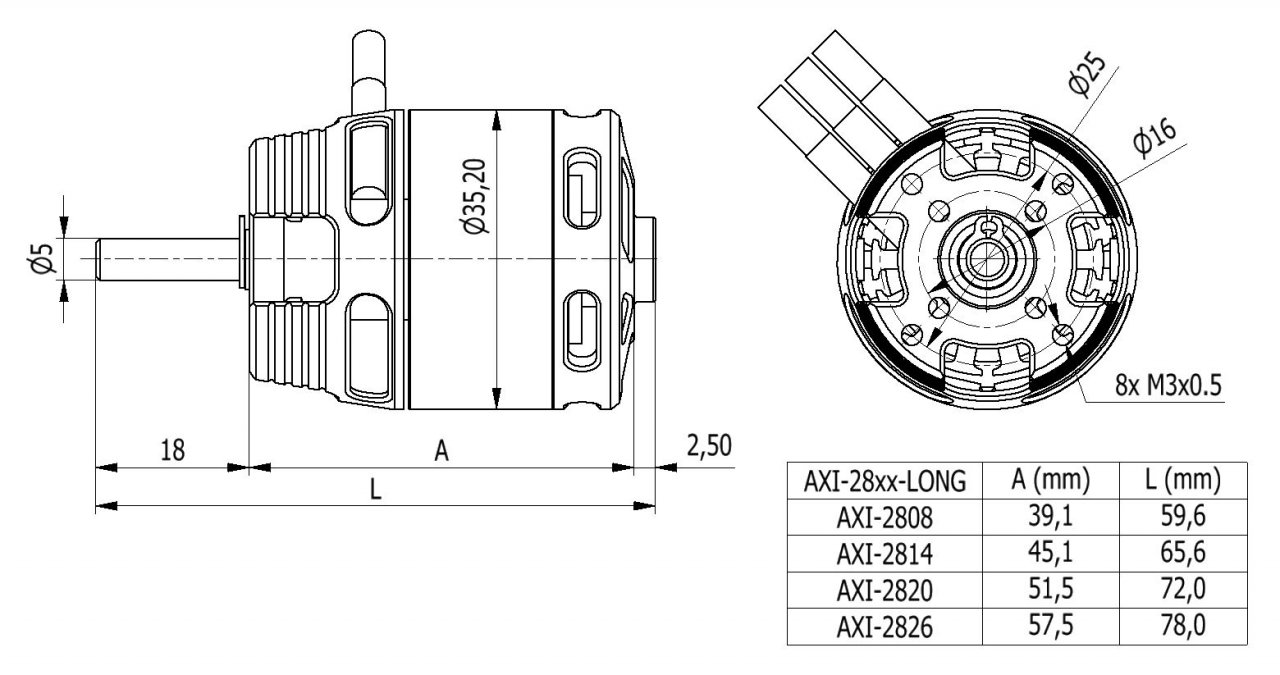

Dimensions (Ø x L) 35x57,5 mm
Shaft diameter 5 mm
Weight 187 g
Max. Power 570 W
