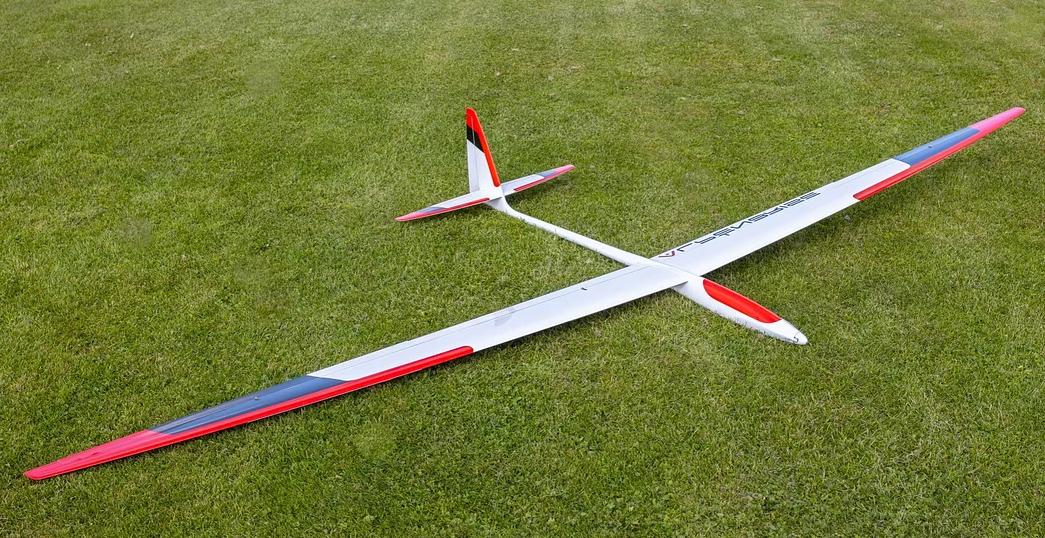

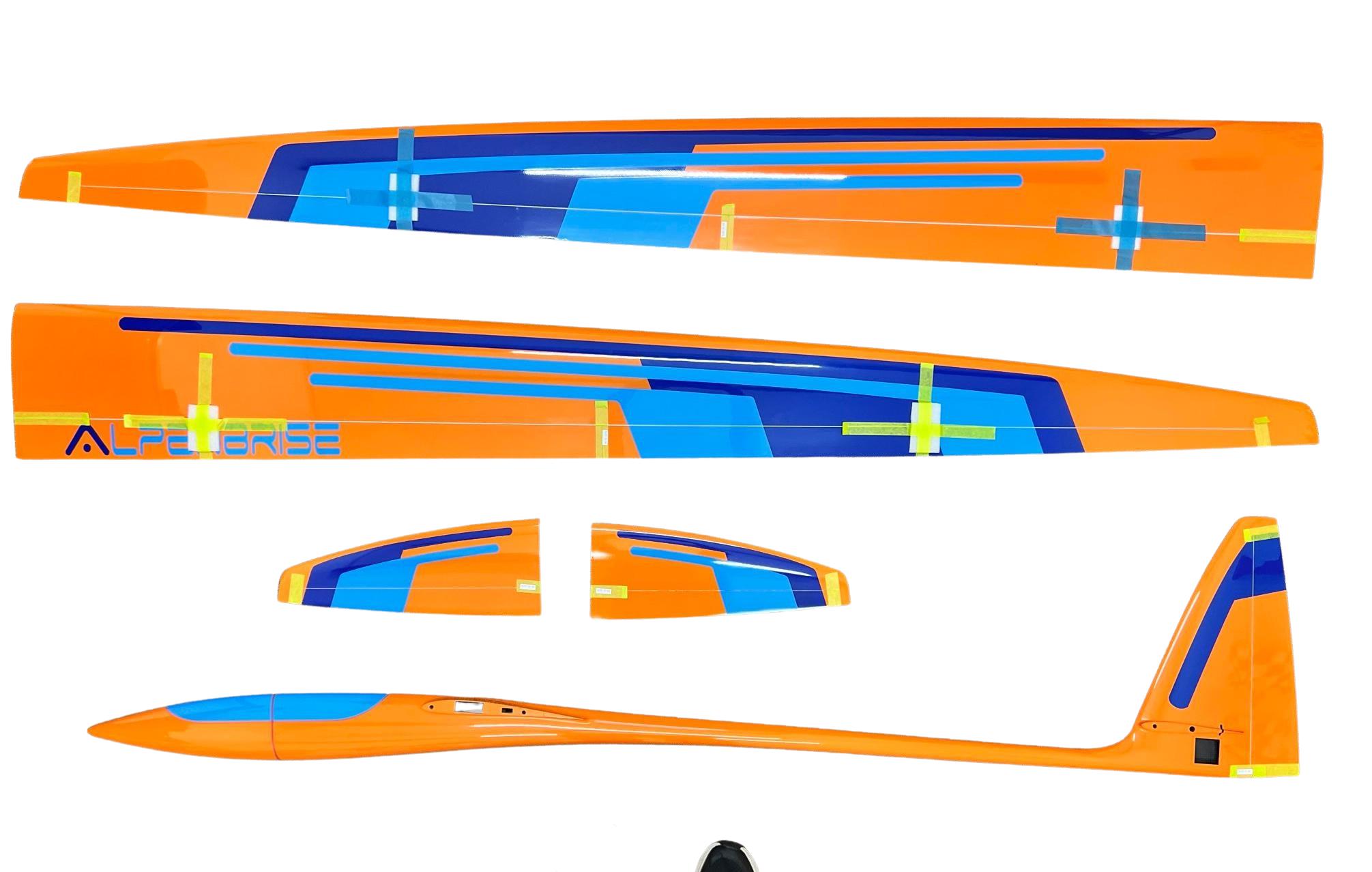

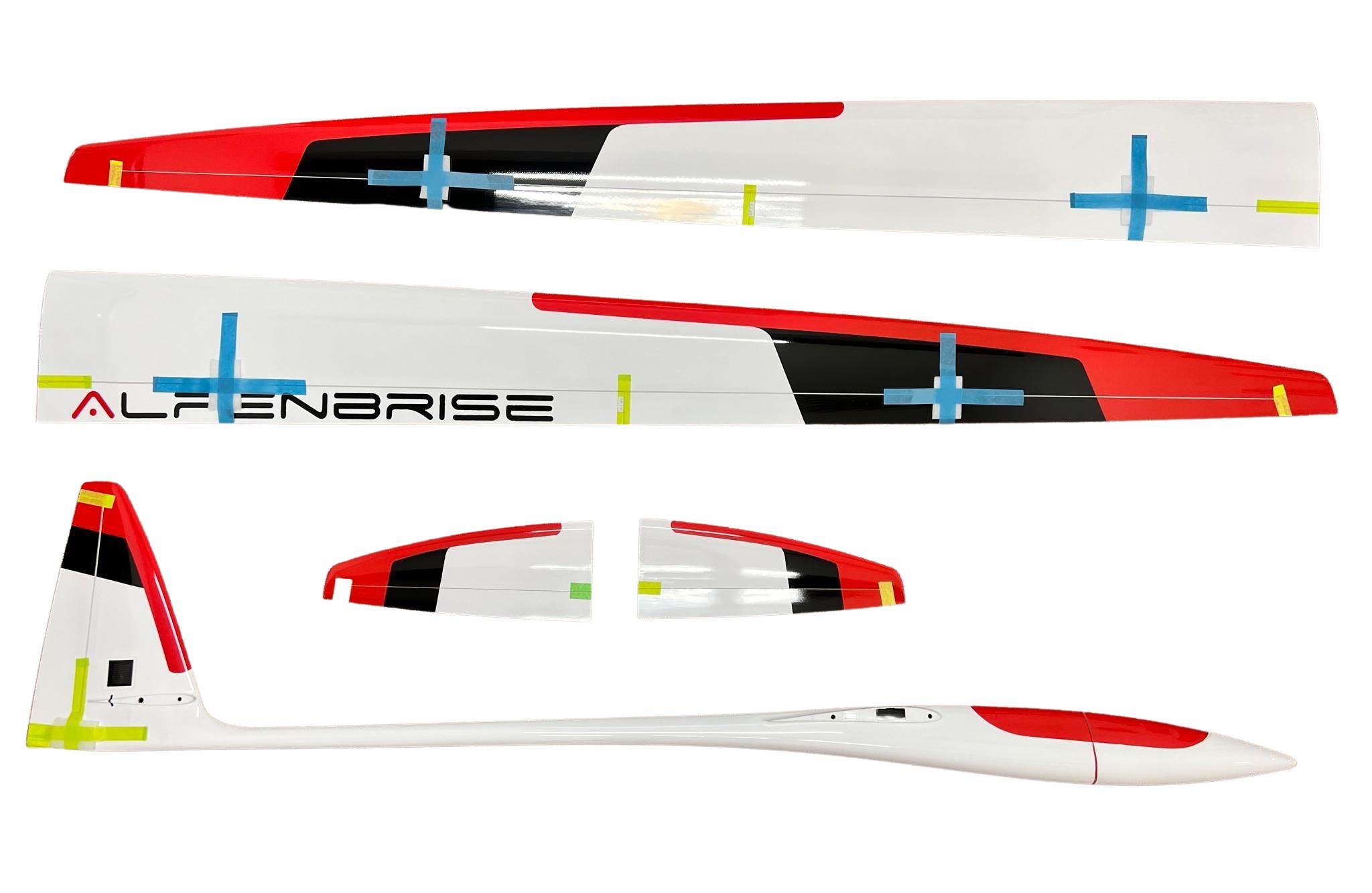

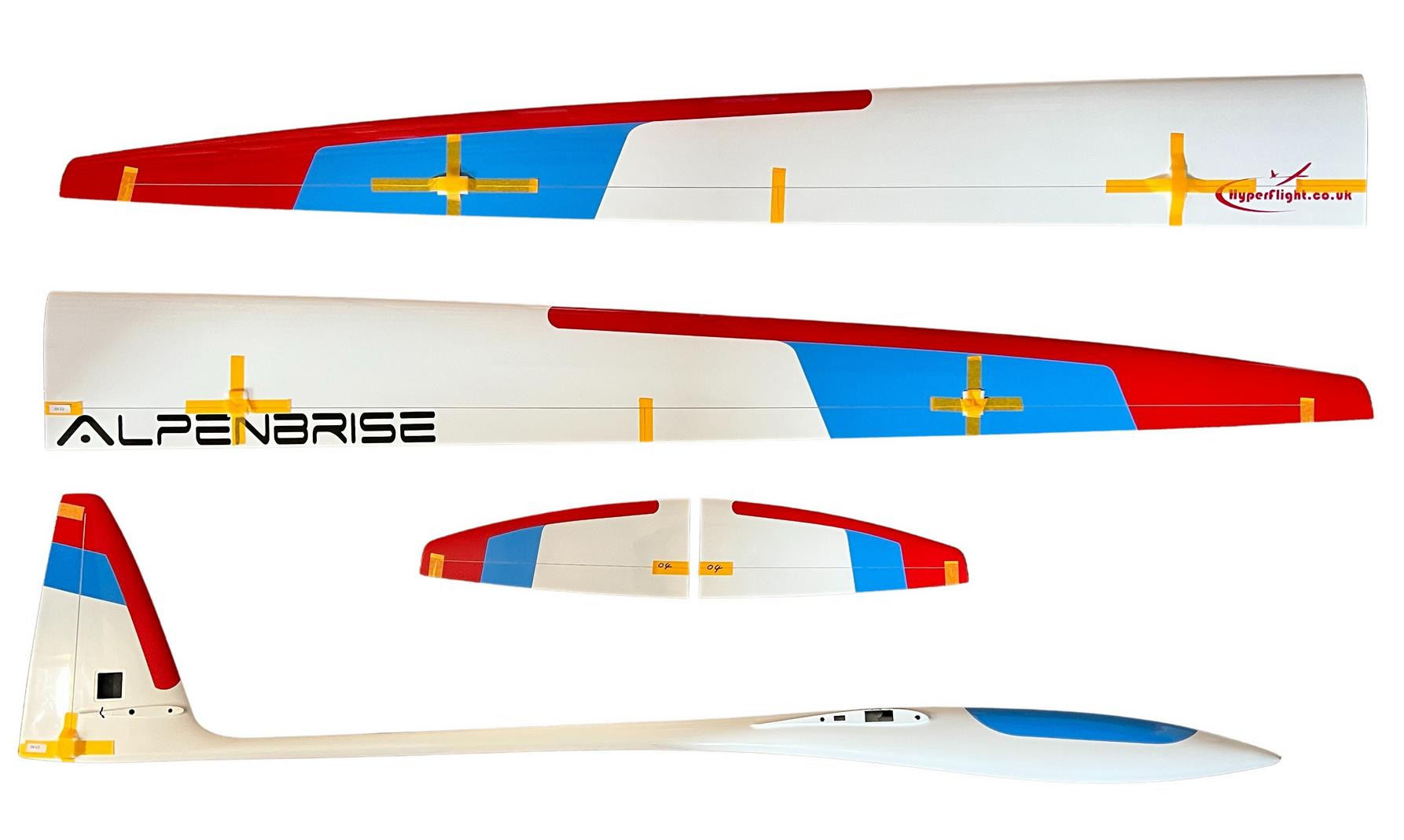

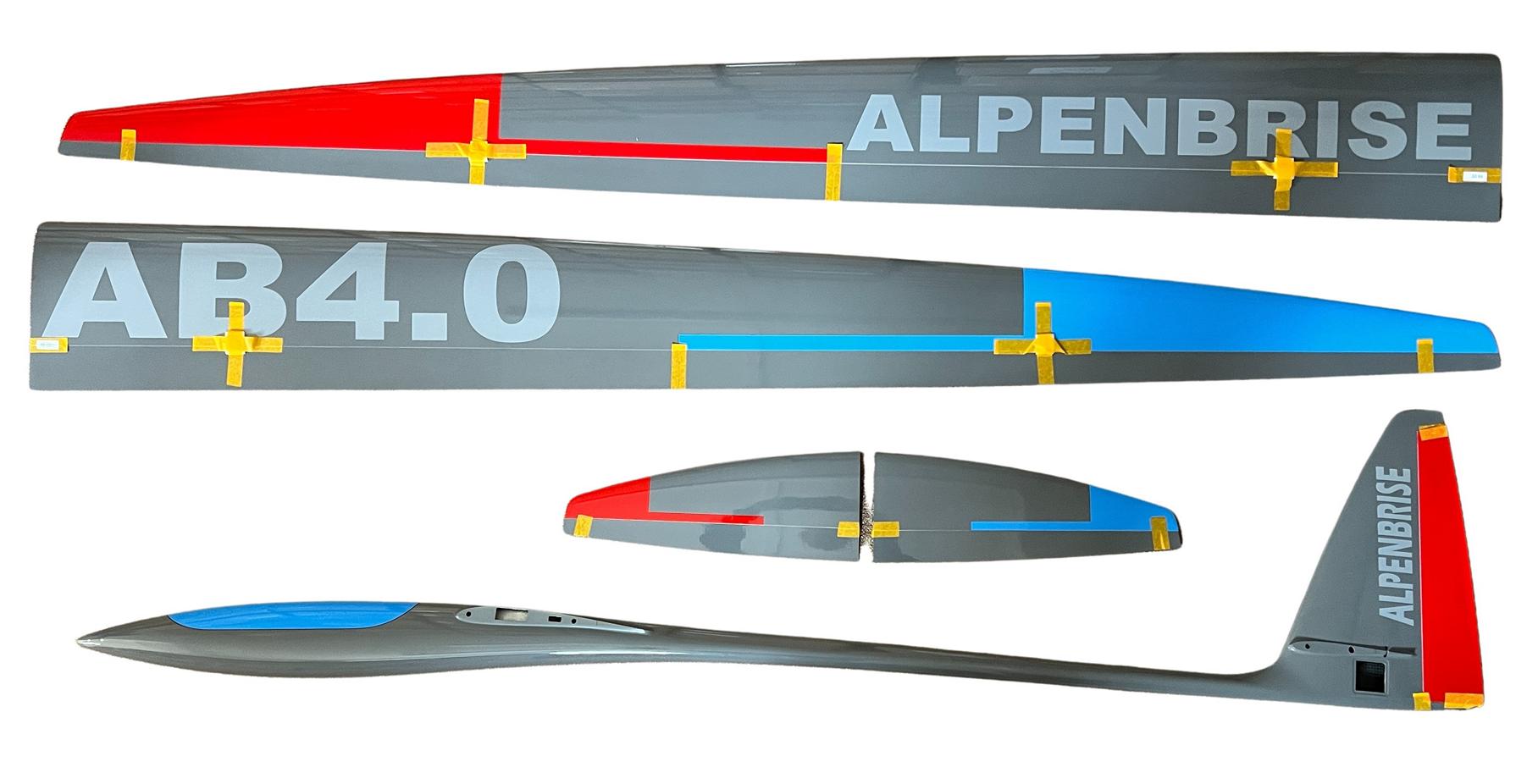

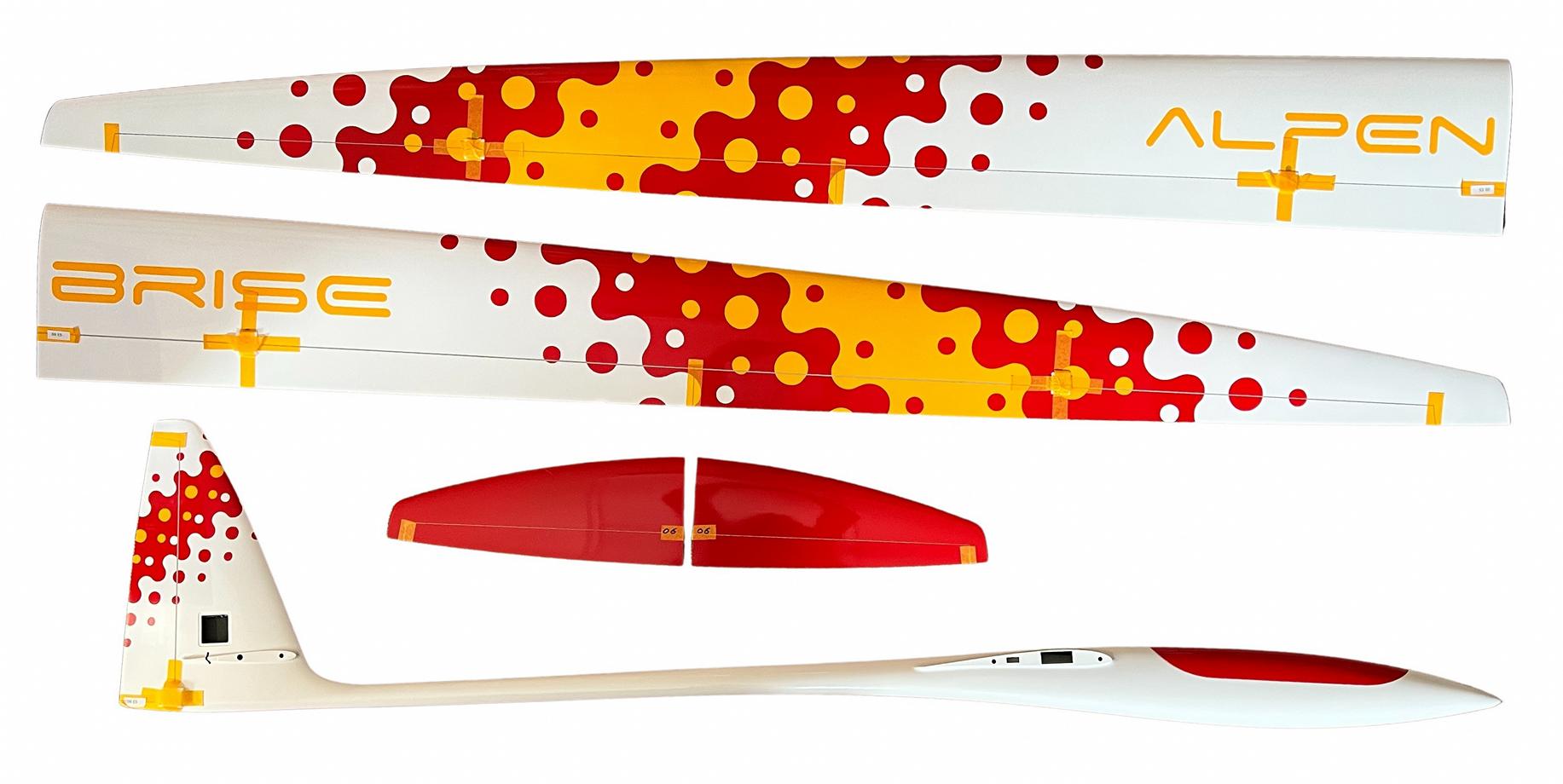

Alpenbrise 4m

DUE TO ITS LARGE SIZE THIS MODEL IS AVAILABLE FOR PICK-UP ONLY

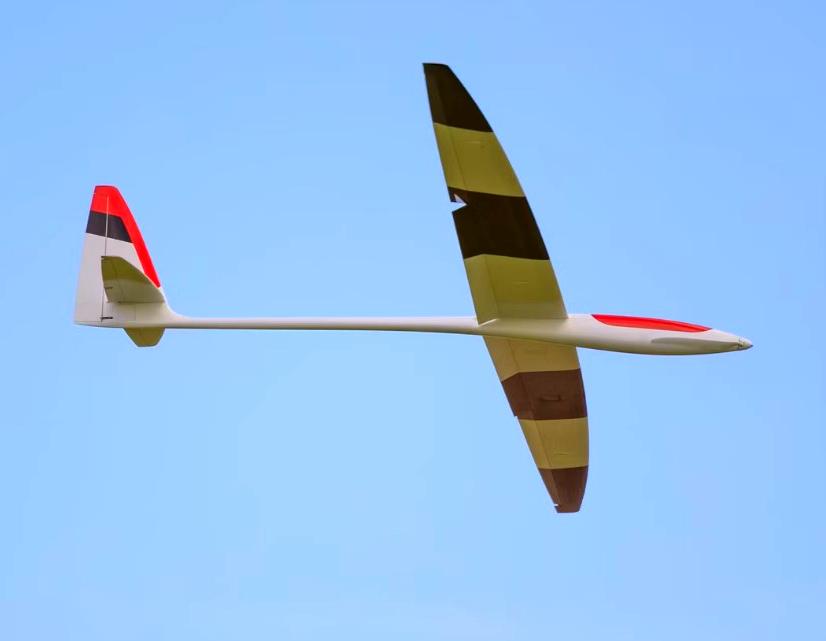

The Alpenbrise is a really good looking slope soarer, and is intended to be a possible successor to the great Alpina. The stiff, light, construction gives the Alpenbrise complete freedom of the air and it will soar in the lightest of lift, while ballasted it has superb energy retention and aerobatic properties. With its own special shriek on fast passes, as the vortices are shed at the wingtips, the Alpenbrise has a real presence when flying.

Due to its excellent speed range and great thermal capabilities the Alpenbrise is also eminently suitable for Triangle GPS Sport Class contests.

Construction: GFK/CFK Hybrid (Aeroic)

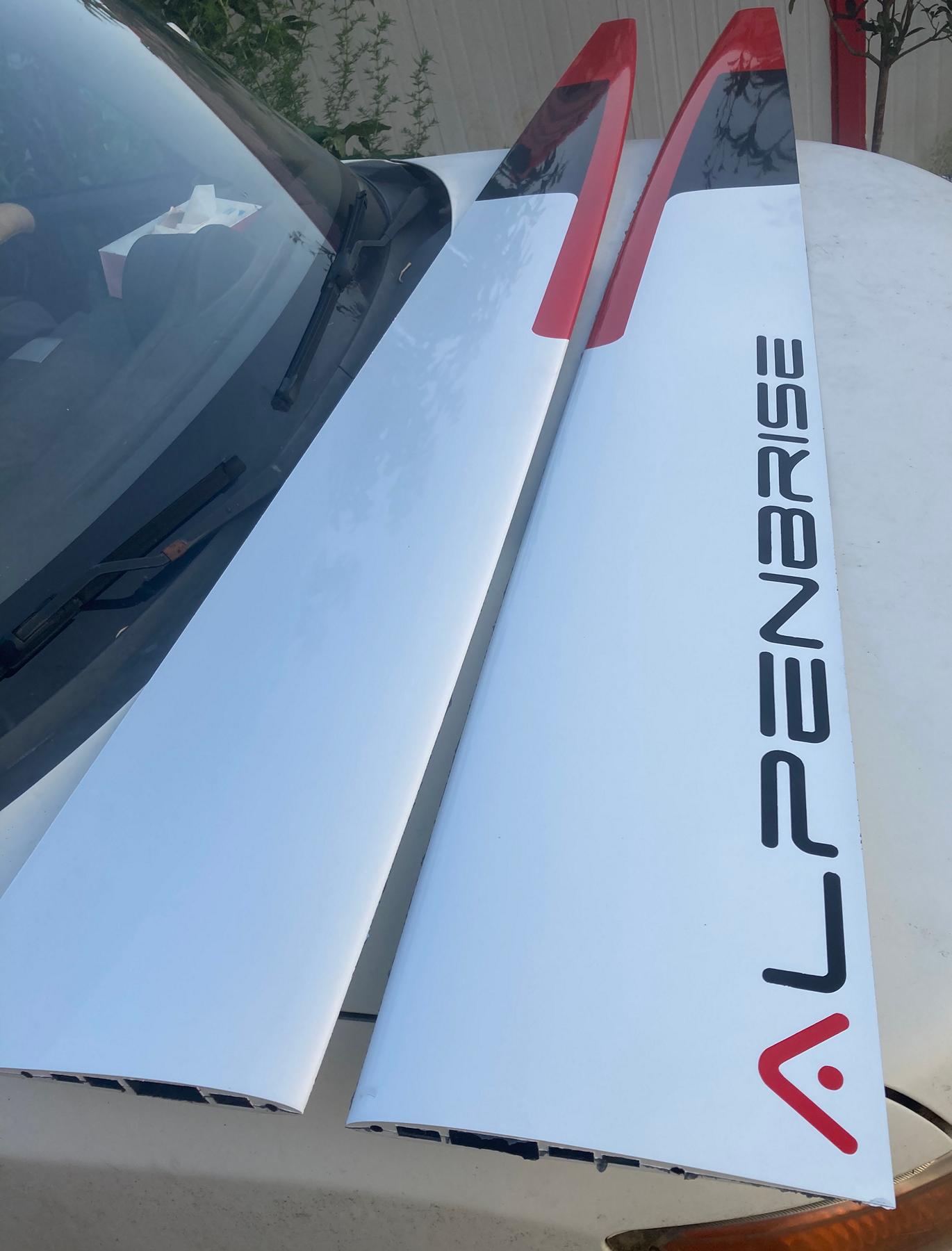

Wings: Carbon with Aeroic Sine Wave spar and composite skin
Fuse: Strong Carbon/Kevlar reinforced glass (2.4Ghz friendly)

Span: 157” (4.0M)
Length: 67.3” (1.710M)
Wing Area 1,182 Sq.” (76.3 Dm/2)
Aspect Ratio: 21
Wing Aerofoils: JH35-9 ~ JH35-8 High response type
Wing Spar type: Aeroic Sine Wave

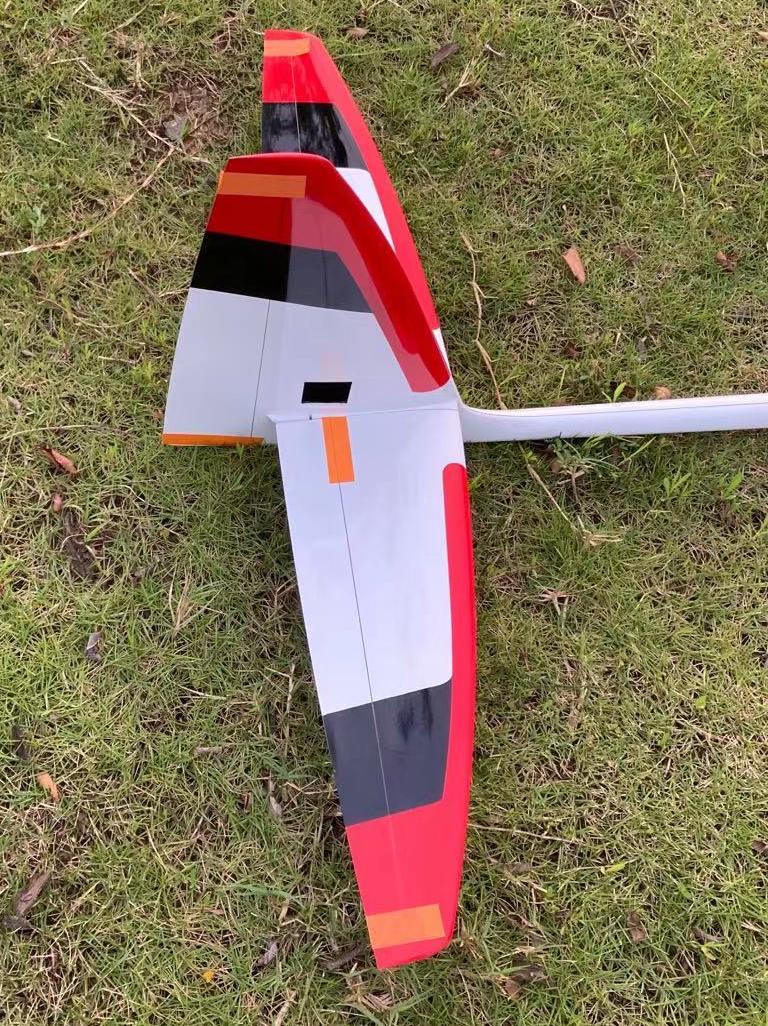

Tailplane Span: 31.5” (800mm)
Tailplane Area: 179.8 Sq. “(11.16 Dm/2)
Tailplane Aerofoil: JHSYM-9
Wing ballast: 2Kg
Designer: Dr. James D. Hammond

Provision for motor in the front

Weights (each) SS Type (Strong Slope) S Type (Sports)
Wings (each) 1190 1095
Tails 85 70
Fuselage 750 700
Canopy 28 28
Joiner 340 260
Approx total weight: SS version: 3,400g S Version: 2,950g

Rudder servo in fin or fuselage
Elevator servo in fin, fuselage, or (2) in the Tailplanes
Wings 4 or 6 servos (2 or 4 flap)

DUE TO ITS LARGE SIZE THIS MODEL IS AVAILABLE FOR COLLECTION ONLY
