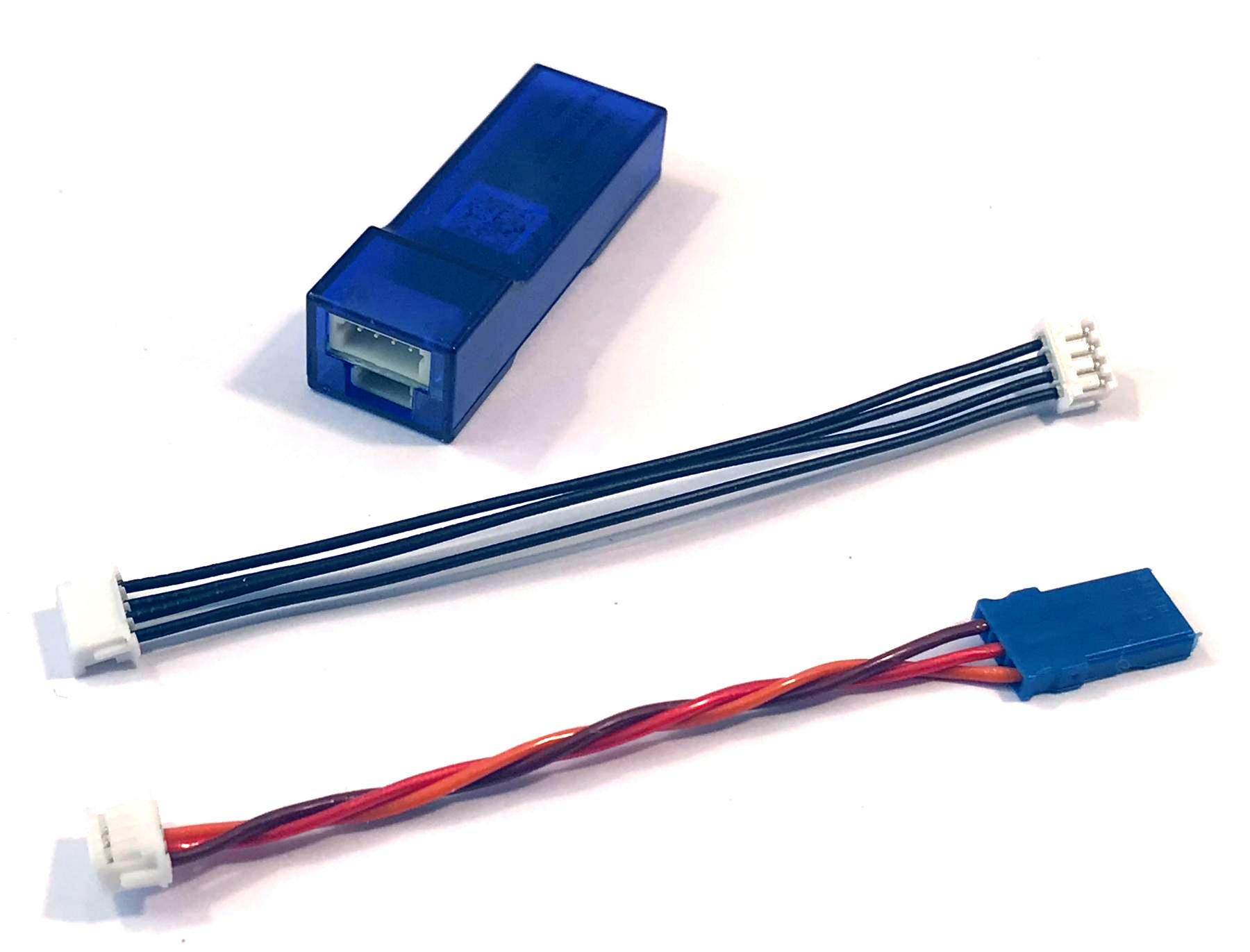

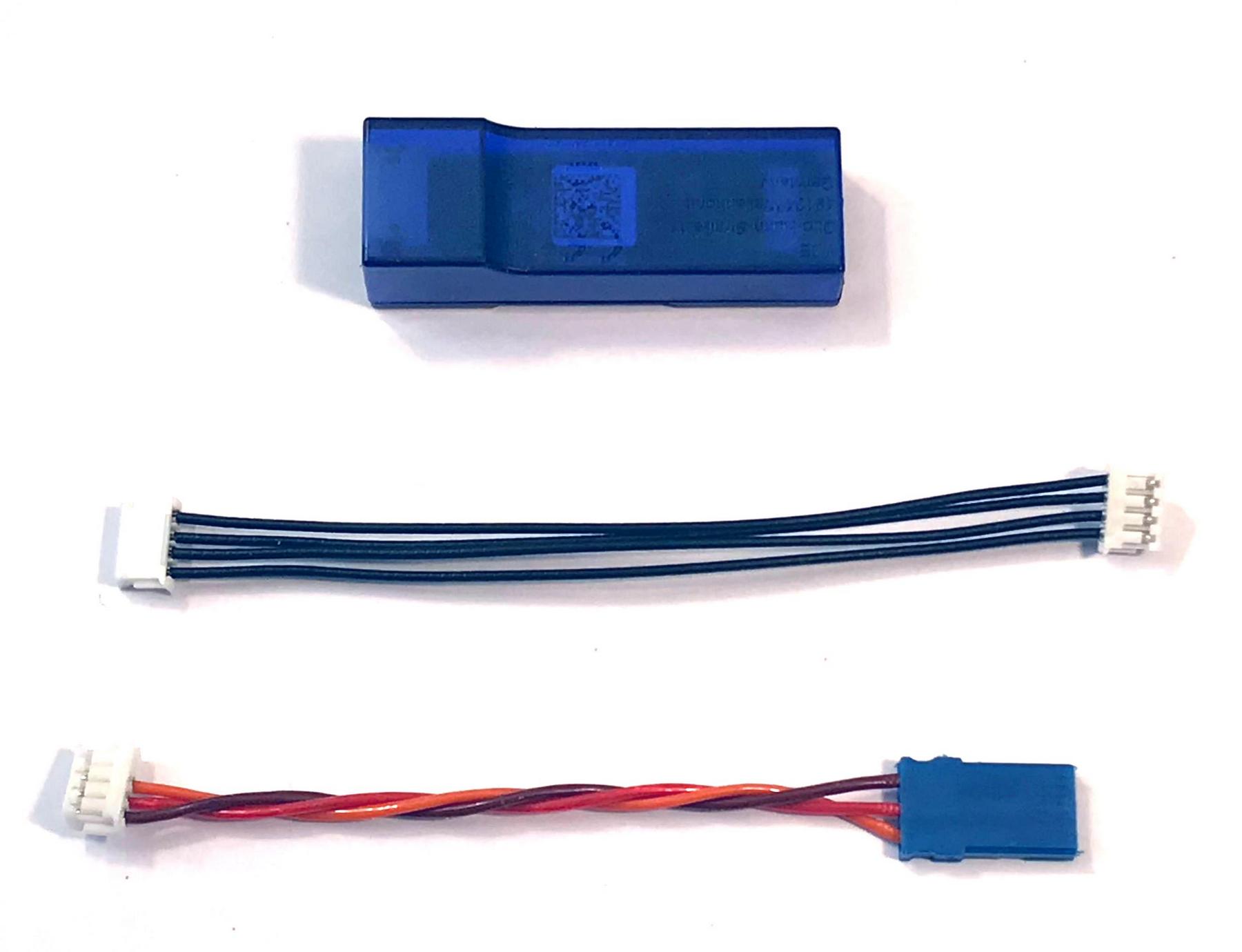

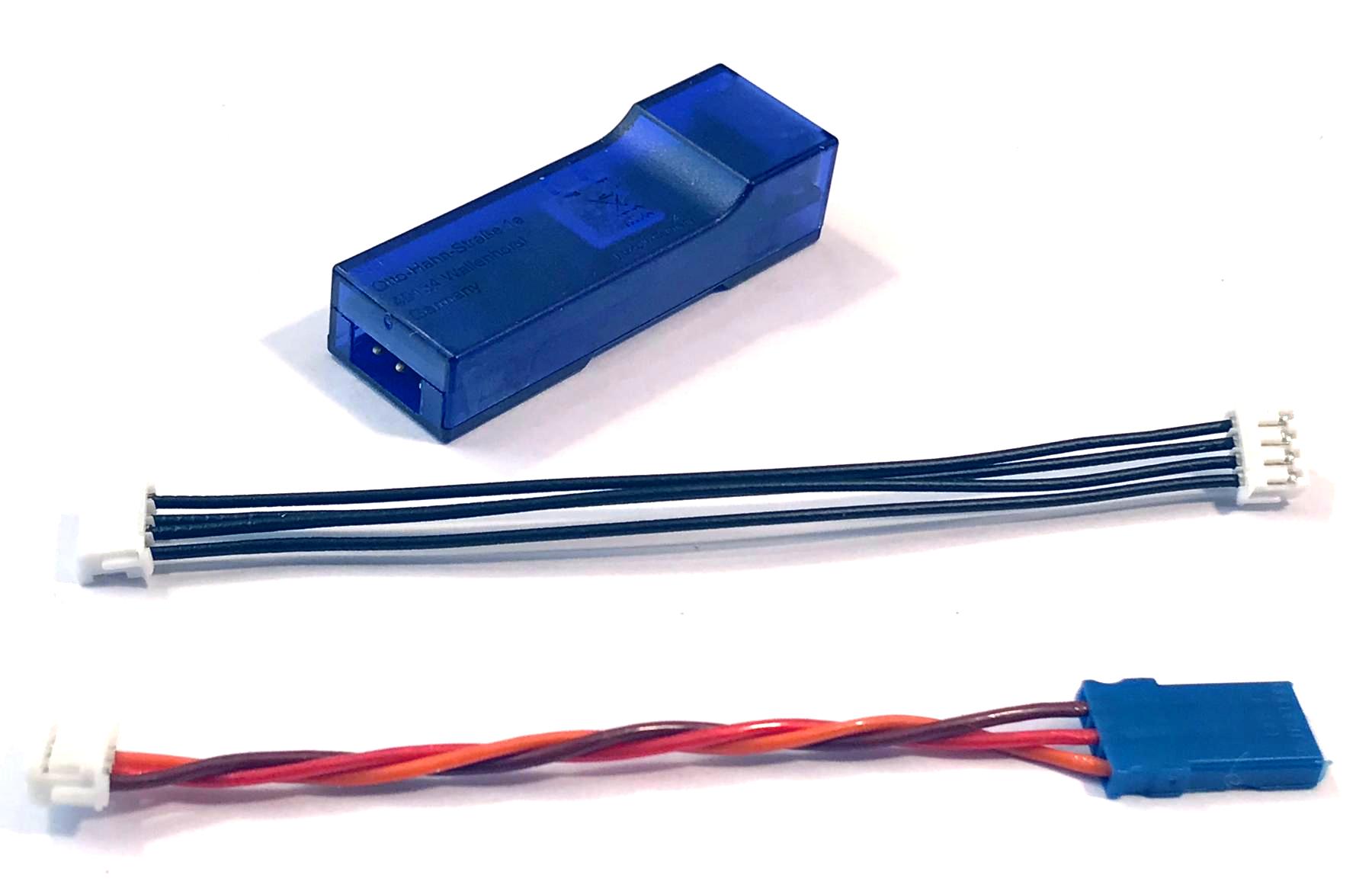

YGE TexY Telemetry Adapter

Telemetry adapter for YGE LVT ESCs to add support for Futaba SBUS2, Spektum XBUS, FrSky S.Port and Powerbox CORE radios and protocols. This interface allows a lot of useful data to be sent back to the pilot. For example, when using FrSky radios, the following information is sent using the 2.4 Ghz link back to the transmitter for logging and display:

• Battery Voltage
• Battery Current
• RPM
• Battery capacity used
• Throttle setting (0% - 100%)
• PMW received
• Output FET transistor temperature in °C
• BEC temperature in °C if available
• BEC Voltage if available
• BEC Current if available

Note this product is only of use to customers with Futaba, Spektum, FrSky and Powerbox Core radios. It does not add any functionality for other radio protocols

Weight: approx. 3g
Dimensions: 39 x 12 x 9mm
