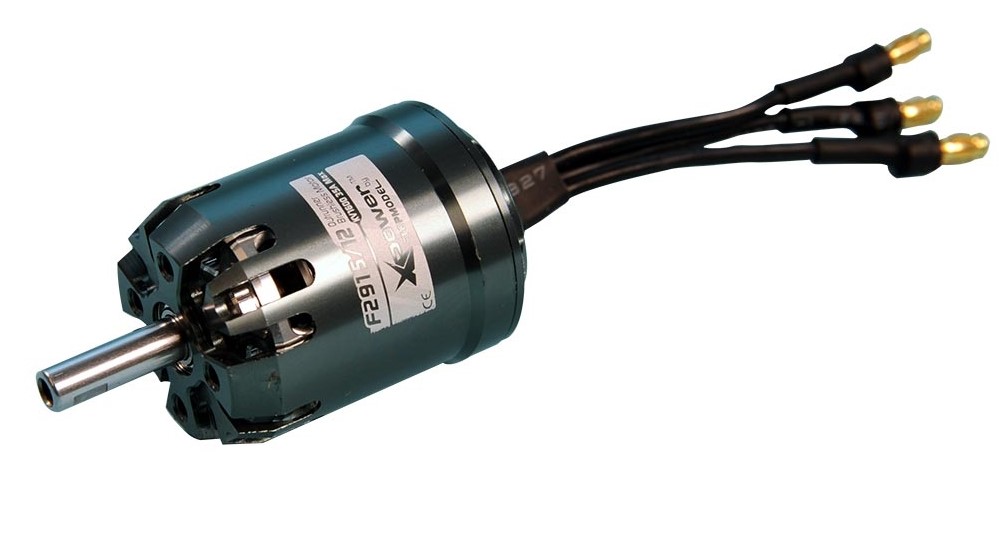

XPower F2915/12 XLight Specifications | |
---|---|
KV | 1600 RPM/V |
Max current | 35A for 30s |
Power | 340W |
Manufacturer's Rm | 42 mOhm |

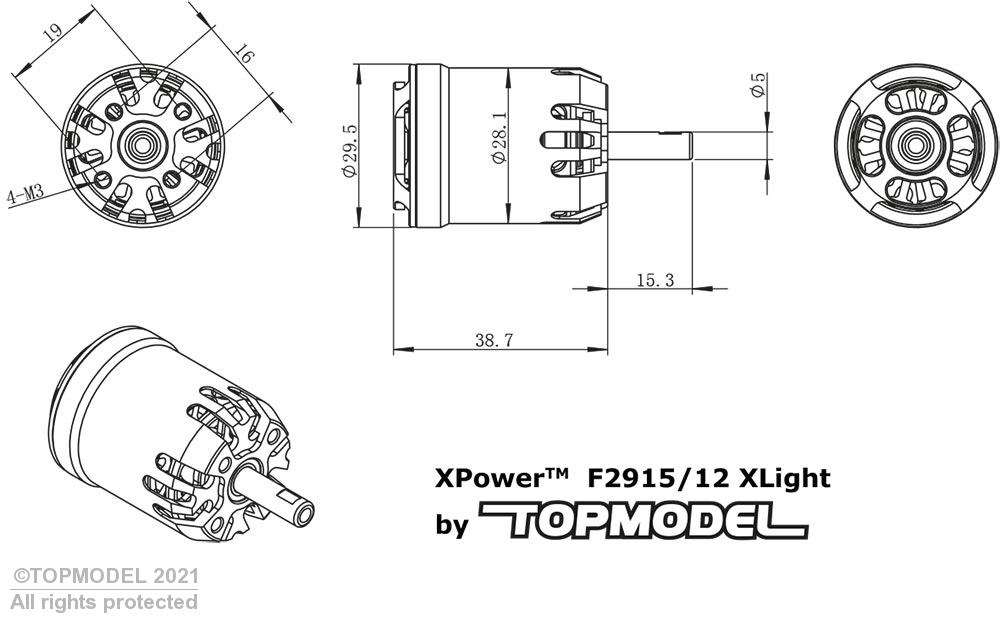

Dimensions | Ø28.1x38.7 mm |
Mounting | 2 M3 on 16 mm & 2 on 19 mm diameter |
Shaft diameter | 5.0 mm |

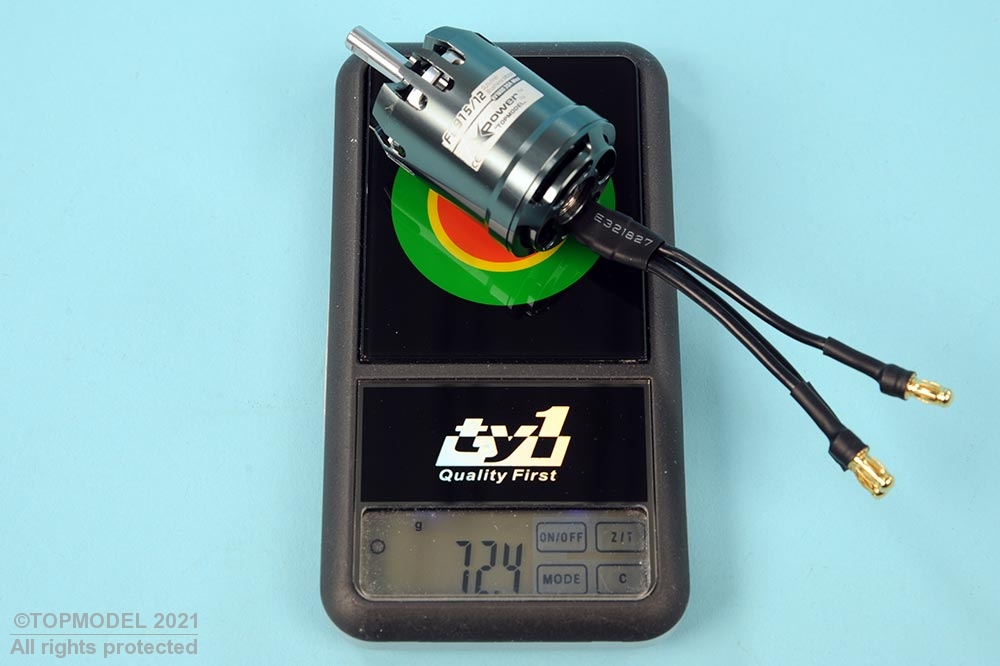

Weight | 72 g |
Number of poles | 12 |
Recommended number of cells | 3 LiPo |
Recommended props | 10x5-11x6" |
Review by: Richard Shagam
Nice motor--perfect fit for my Inside F5JThe Hacker A2022L (?) motor I installed, per plans recommendation, in my Inside F5J lost its smoke. I tried fitting another Hacker in there but just couldn't get the new one in, as the wires couldn't clear the slot without dragging on the rotor--probably the cause for the original motor short. Also, the Hacker rotor was scratched, indicating that there had been some contact with the nose block. I would have had to do some significant surgery to get the new motor in. The XPower outrunner in a case was the perfect solution--it just slid right in and had the same mounting hole pattern and I didn't have to worry about the spinning rotor touching the sides or wiring. Plenty of power and much cheaper than an inrunner/gearbox combination. It's about 20gr heavier than the original Hacker, but that wasn't an issue, as it was easy to rebalance the model. Worth the extra cost compared to the original Hacker. I should mention that the HyperFlight price, incl. shipping to the US was less than anything I could find my side of the Pond. (I hope current politics doesn't change that!) I have some possible F3J to F5J conversions that I might consider using this motor. In any case, I'm through with conventional outrunners!
Review by: Mike Green
Had a cheapish 28mm motor from a well know brand, never did like the 3 wires going back past the spinning motor in such a small space, so i replaced it with the XPower motor, not only is the very well made but the extra thrust is is well worth the few quid extra.
Review by: D Bradbury
XPower F2915/12 XLight 1600 RPM/V 72g Cased OutrunGreat motor one of several purchase that make great service as usual thank you
Review by: Nick
Conversion projectGiven the weight should work well in an F3J to F5J conversion project. Product was shipped quickly.
Review by: Shayne Fielding
XPower F2915/12 XLight 1600 RPM/V 72g Cased OutrunGood motor at a reasonable price, fitted in my Geronimo 2 nicely, being cased there is no way to trash the power leads
Review by: Simon Conran
Great motorPurchased for my Arthobby Evolution. Fits in like a dream with wires coming out of the rear end.
Only need an 8 x 6 prop drawing 26 amps, and it gets my Evolution (1020) grams up at 11.2 m/s on a 900 mah 35c lipo. Fantastic.
Review by: Reto
Direct drive for a small F5J style modelI use this motor for the Joy F5J model. It fits the model perfectly (size and weight). To my pleasant surprise, with a VM 10x6 prop, this drive is surprisingly quiet, and the model can rapidly climb to altitude on a 3S battery. I am pretty happy with it so far.
Review by: David Thornley
Products, service and deliveryThe usual flawless purchase from Hyperflight. Everything as purchased with top service.
Review by: Stefan Wickelgren
Best valueGreat motor for F5J
Review by: Michael
I put this in a 3.5m Yellow Jacket,
1230g.
I've just maidened it on the weekend with old batteries. This motor has plenty of grunt with the VM 11x7 prop. I'm well happy with my decision to use it.
Review by: GEOFF
Great quality built motor. Needed rear entry wires to fit in very narrow fuselage. Also great that in runs inside an outer case. A1
