VM 25mm Spinner for 11xx Motors

Product Code: VM-SPINNER-25-1106

(2 reviews)

Price: $13.84

Description

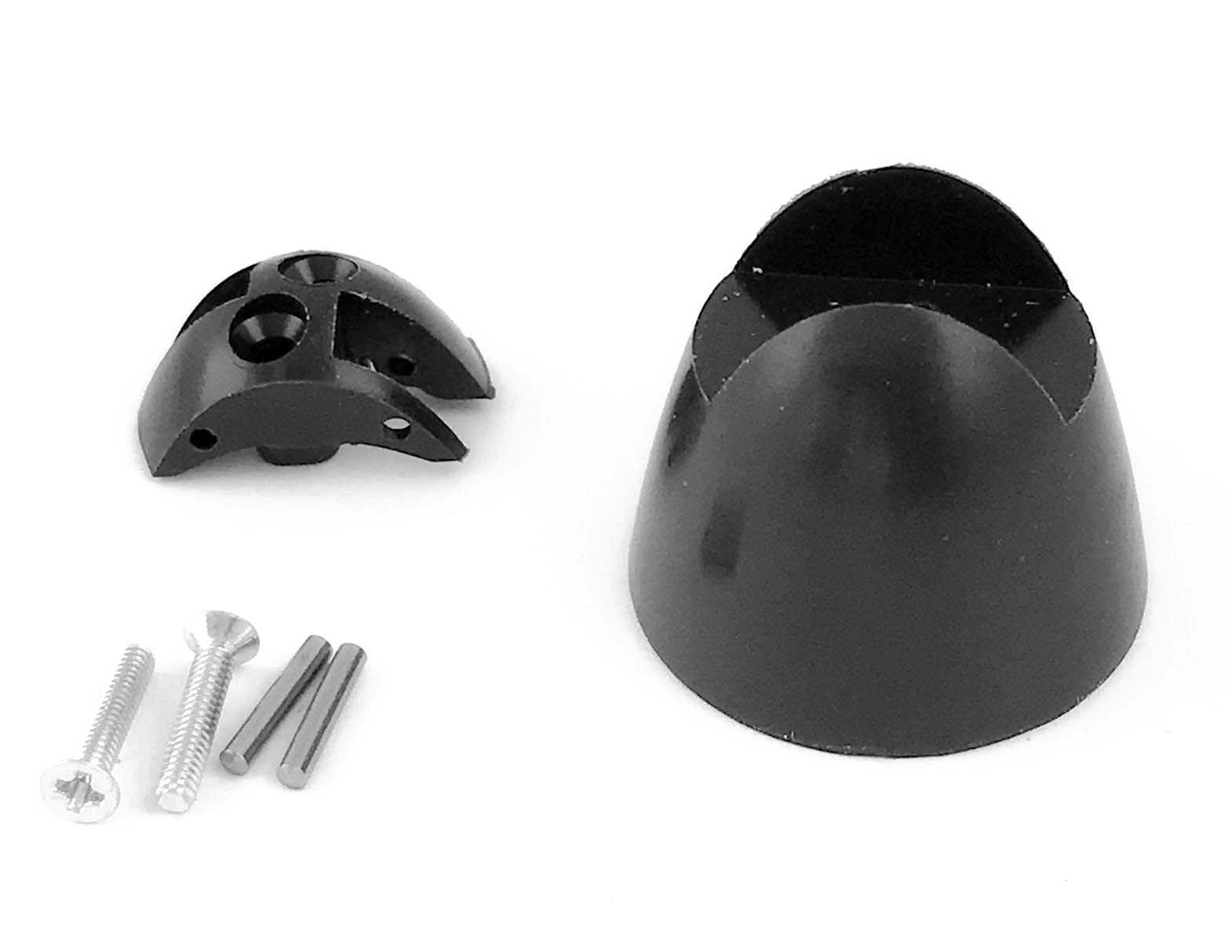

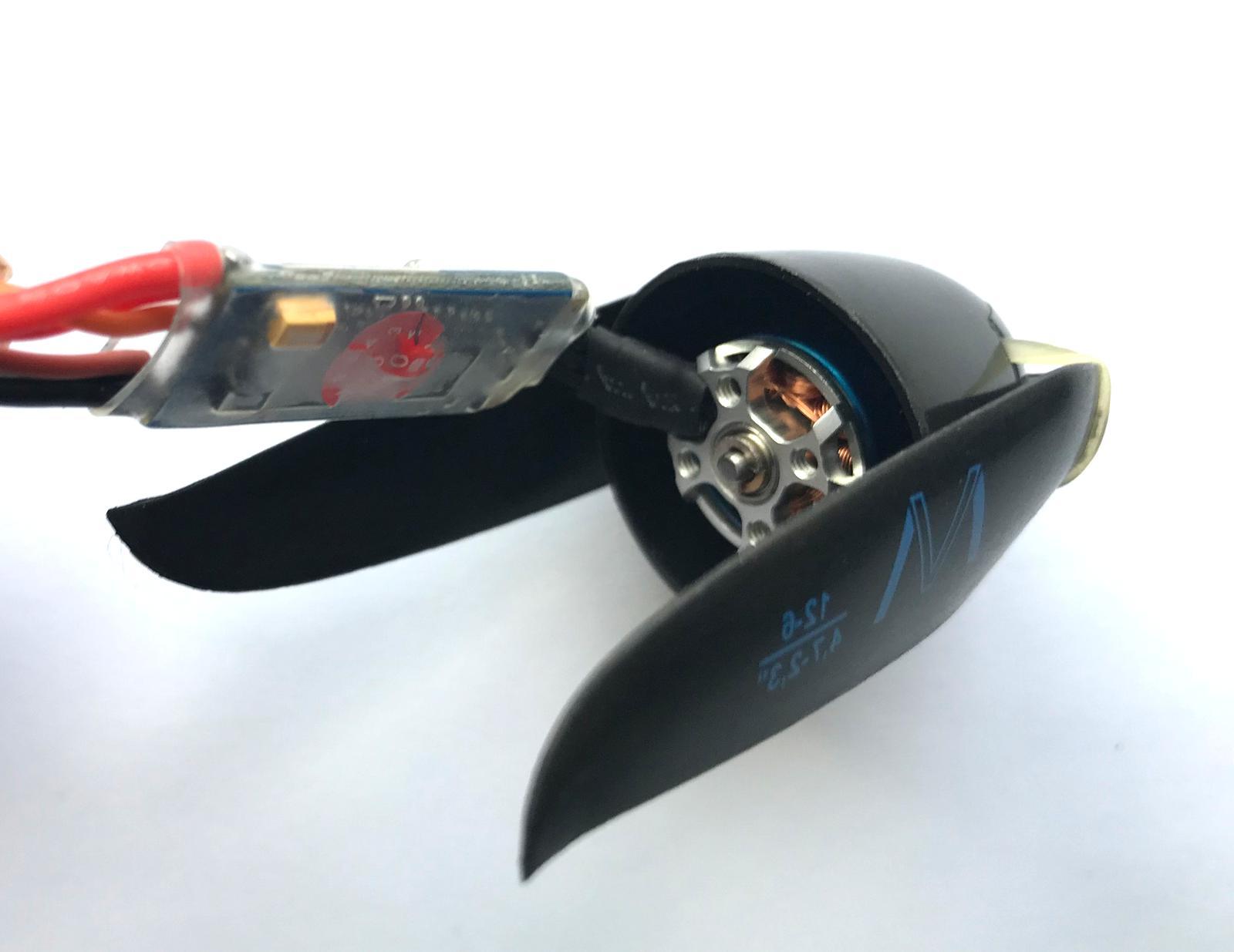

The Vladimir's Models 25mm Spinner for 11xx Motors is a brilliantly designed spinner for small 1m electric gliders and F5K type electric gliders. What makes it so special is that a small 1105 or 1106 drone type brushless motor fits within the spinner, making for a very compact and lightweight powertrain. It has a diameter of 25 mm and although it was designed around the SunnySky 1106 it is suitable for many drone motors that use this form factor. It is attached to the motor by bolting into the front of the rotating case using the two M2 screws provided.

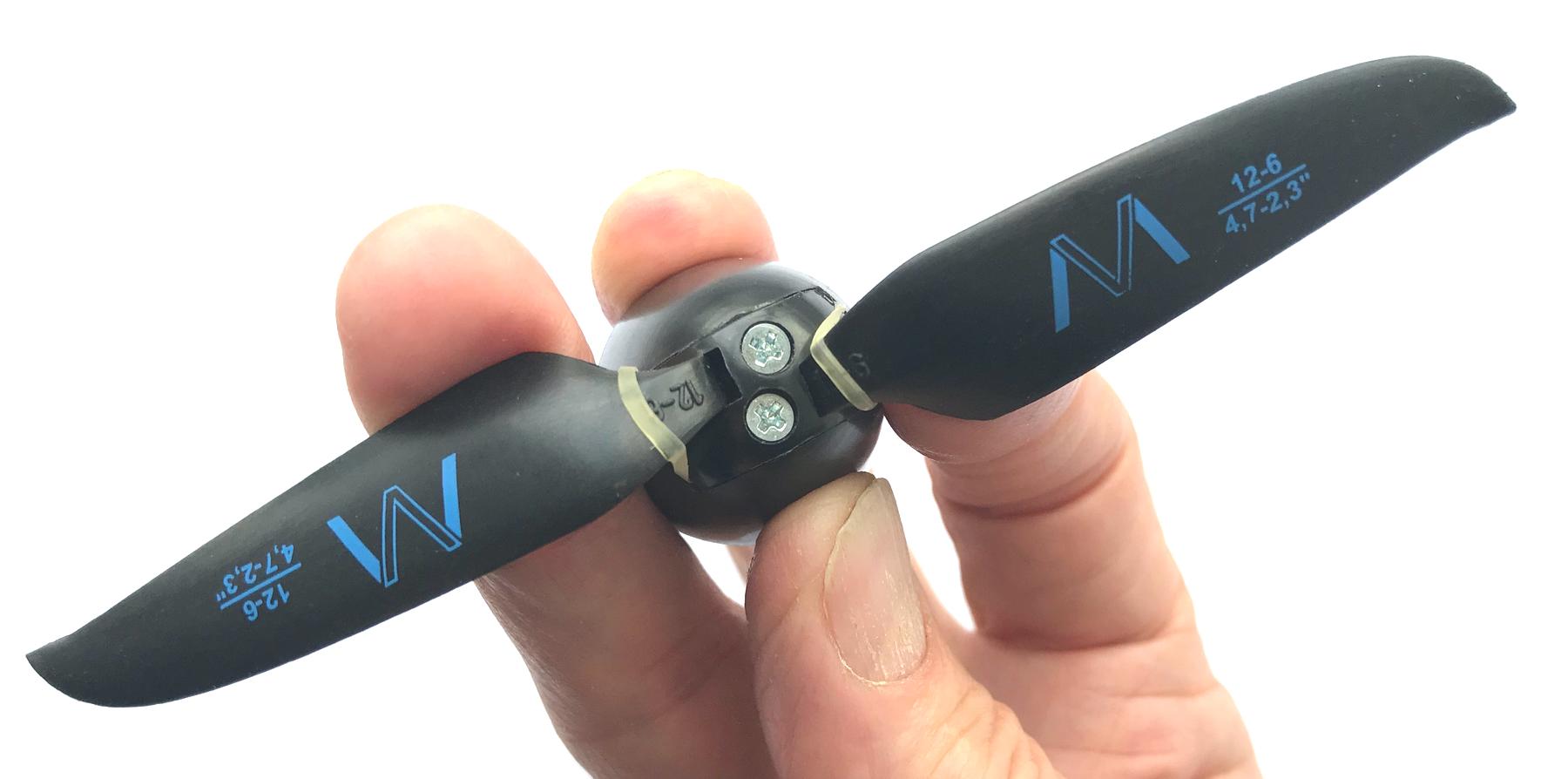

The black shock proof cone is molded from a glass/nylon composite. The spinner is designed to work with VM 4.7x2.4 or Graupner 4.7x2.4 folding prop blades. Neither these nor the motor are included.

VM 25mm Spinner for 11xx Motors Specification
Diameter	25 mm
Motor shaft	N/A
Distance across hinge pins	9.5 mm
Prop hinge pin diameter	1.5 mm
Prop blade root width	4 mm

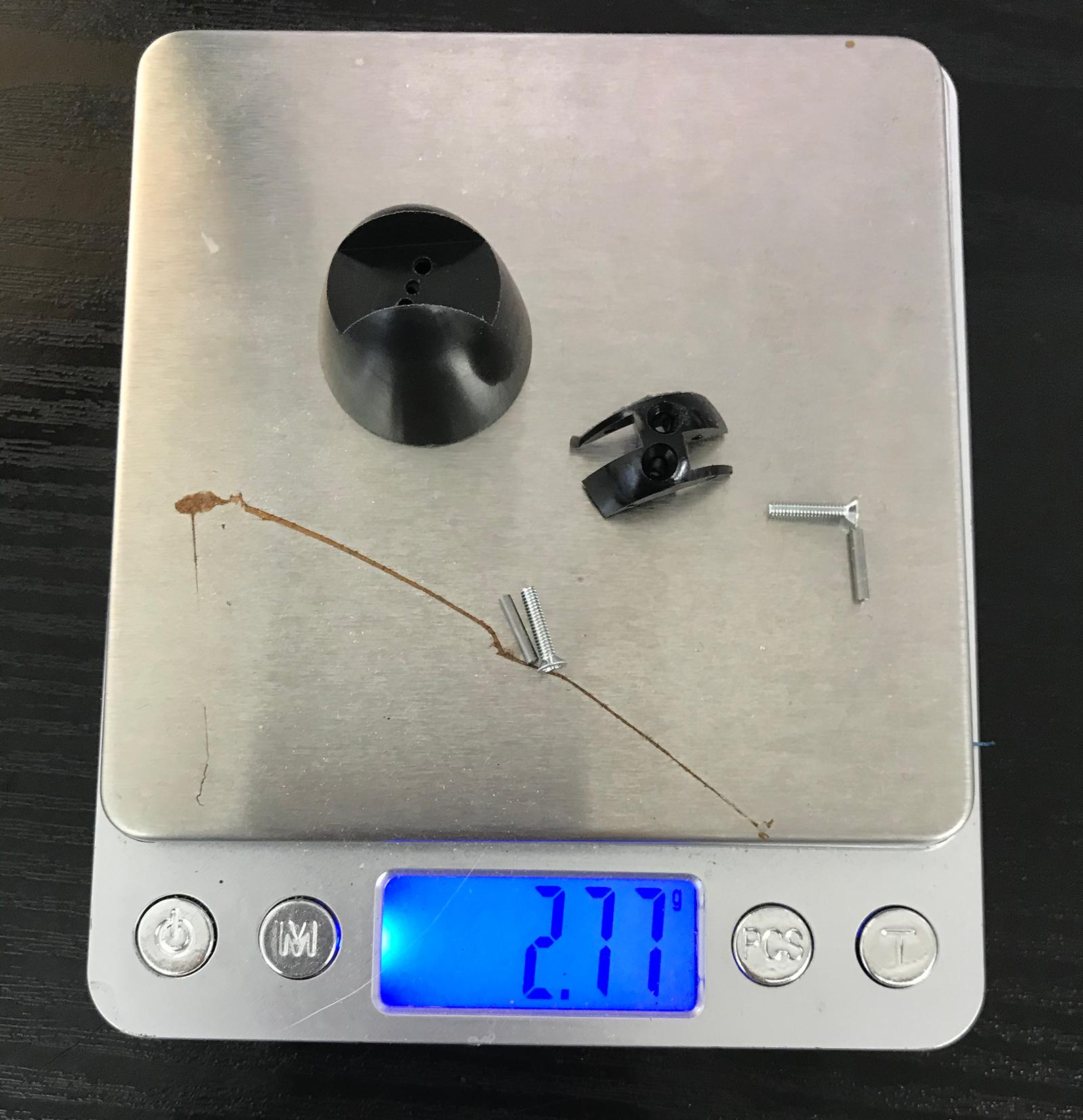

Weight	2.8 g

Reviews 2

28/11/2022 13:01

Review by: Bruce Austin

Expensive couple of pieces of plastic

I needed the small and compact spinner, to go with the ordered MicroBot. But it is a ridiculous price for what it is.
It is good quality moulded plastic, and does come with the necesary pins for the separate folding props.

24/10/2020 00:50

Review by: Marco Scarante

Spingere for 11xx motors

Pur se in plastica la qualità è buona, peso molto ridotto
