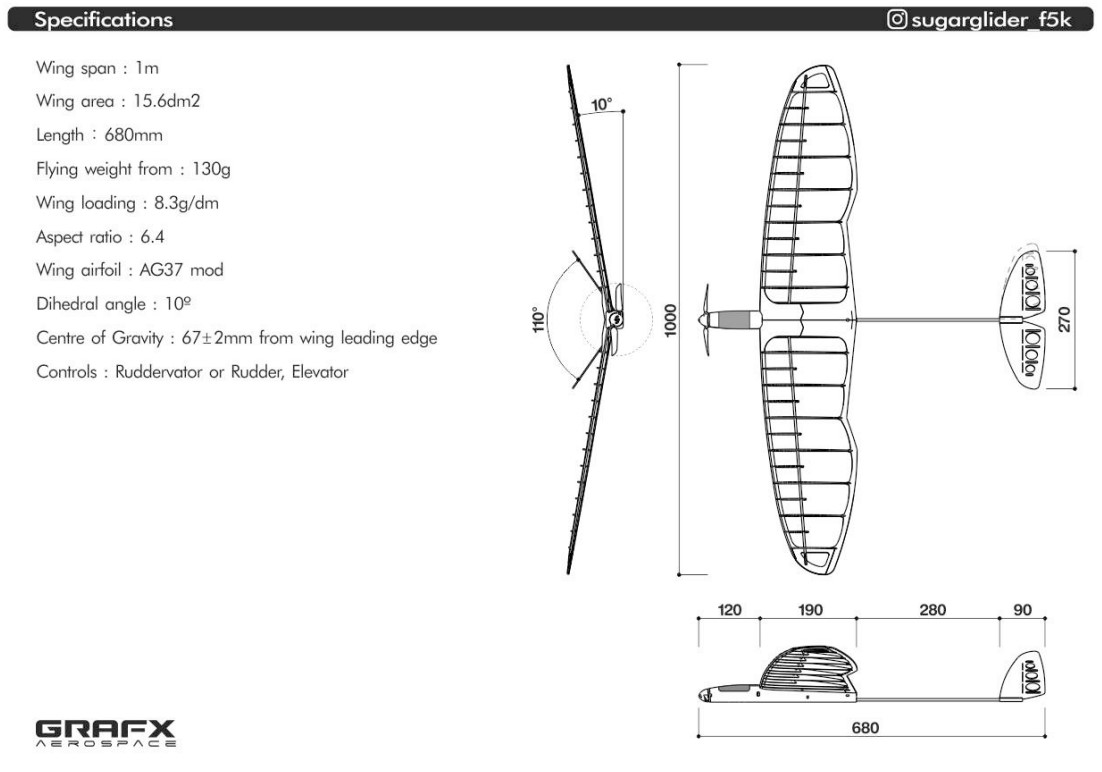

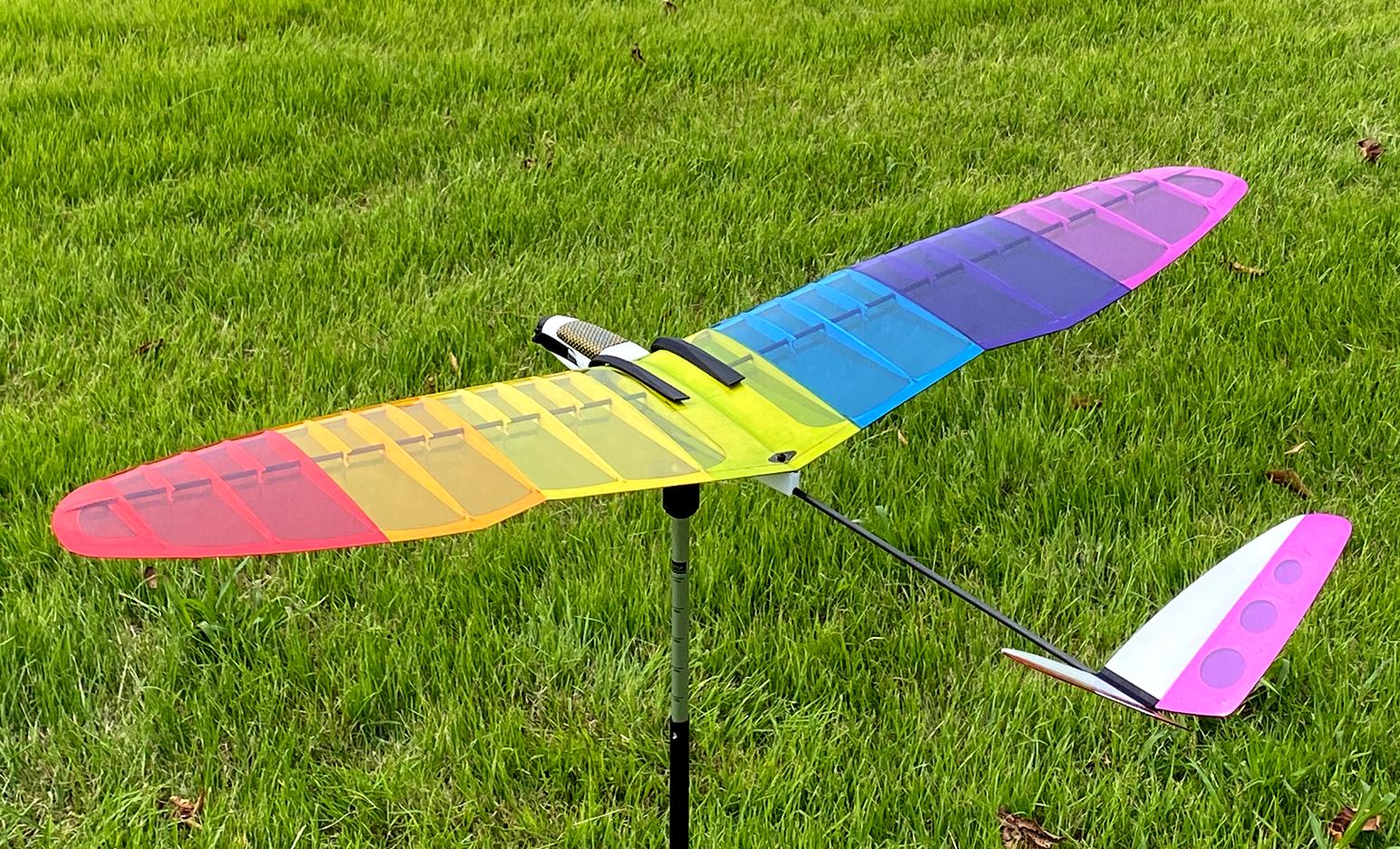

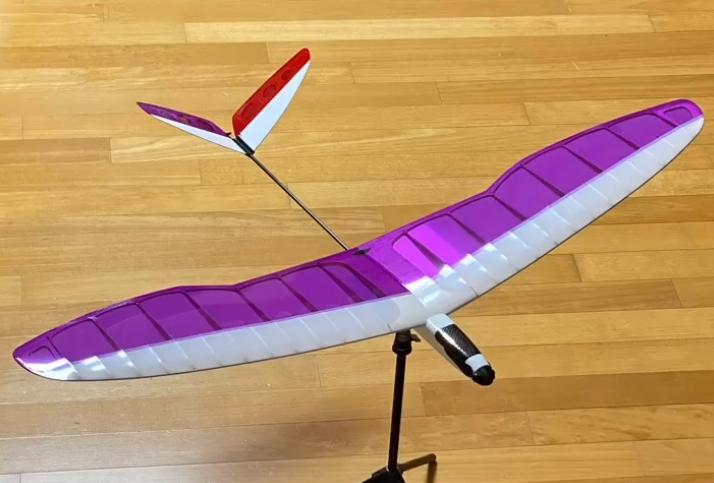

| Sugar Glider F5K Specifications | ||
|---|---|---|
| Wing span | 1.0 m | 39 in |
| Wing area | 15.6 dm2 | 242 sq in |
| Length inc spinner | 68 cm | 26.8 in |
| Flying weight from | 135 g | 4.8 oz |
| Wing loading | 8.7 g/dm2 | 2.8 oz/sq ft |
| Aspect ratio | 6.4 | |
| Wing airfoil | AG37 mod | |
| Dihedral | 10.0º | |
| Spinner Diameter | 25 mm | |
| Centre of Gravity | 65-69 mm from wing leading edge | |
| Controls | Rudder, elevator, throttle | |
| Sugar Glider F5K Typical Weights | ||
|---|---|---|
| Total structure | 85 g | 3.0 oz |
| Receiver | 4 g | 0.1 oz |
| Rudder servo | 4 g | 0.1 oz |
| Elevator servo | 4 g | 0.1 oz |
| Speed control | 4.5 g | 0.2 oz |

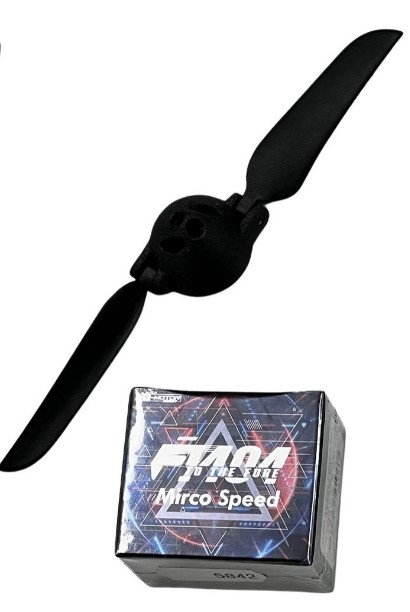

| T-Motor 1404 | 9.5 g | 0.3 oz |
| Prop & spinner | 4 g | 0.1 oz |
| Battery | 20 g | 0.7 oz |
| Flying weight | 135 g | 4.8 oz |
Review by: John Harmon

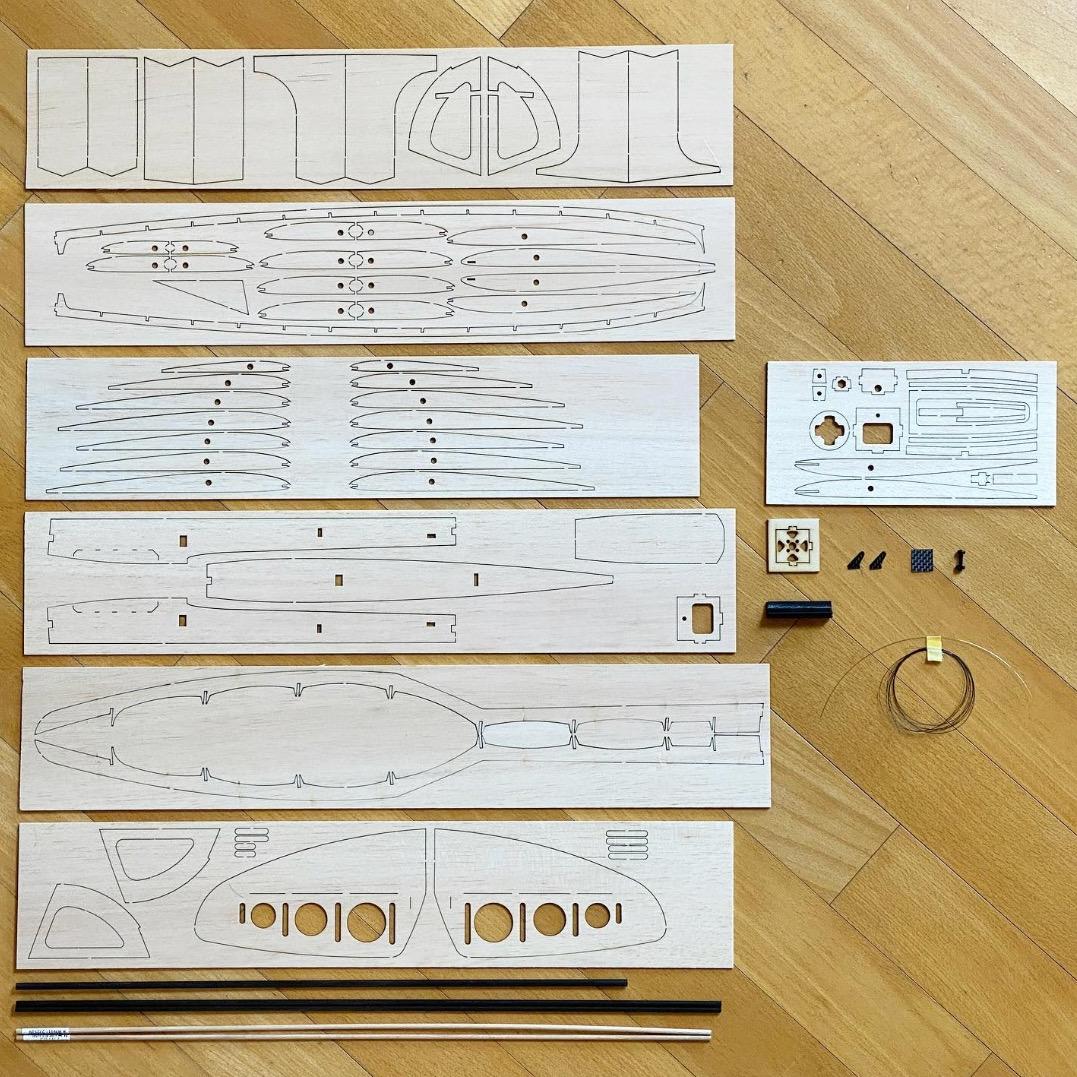

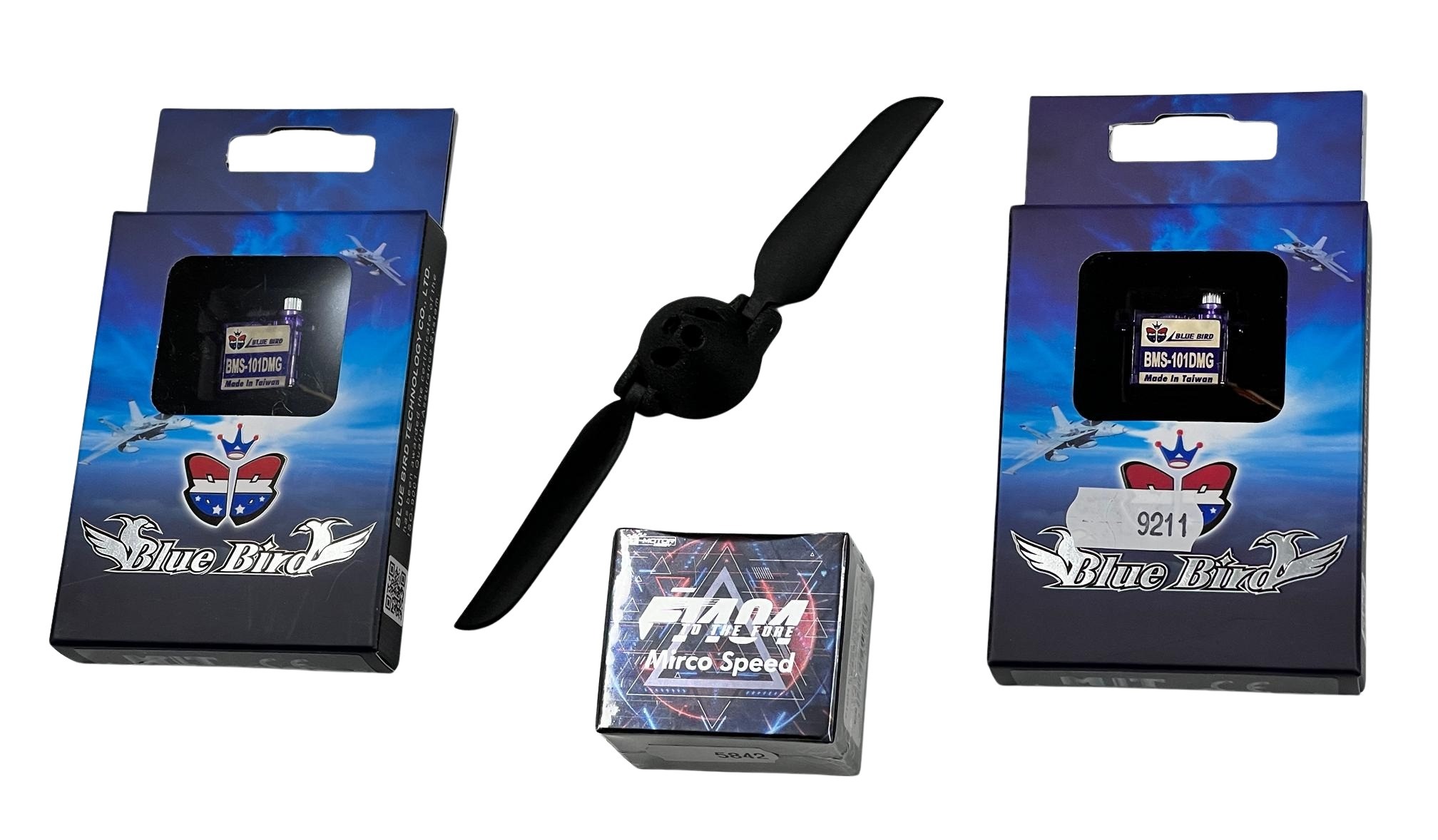

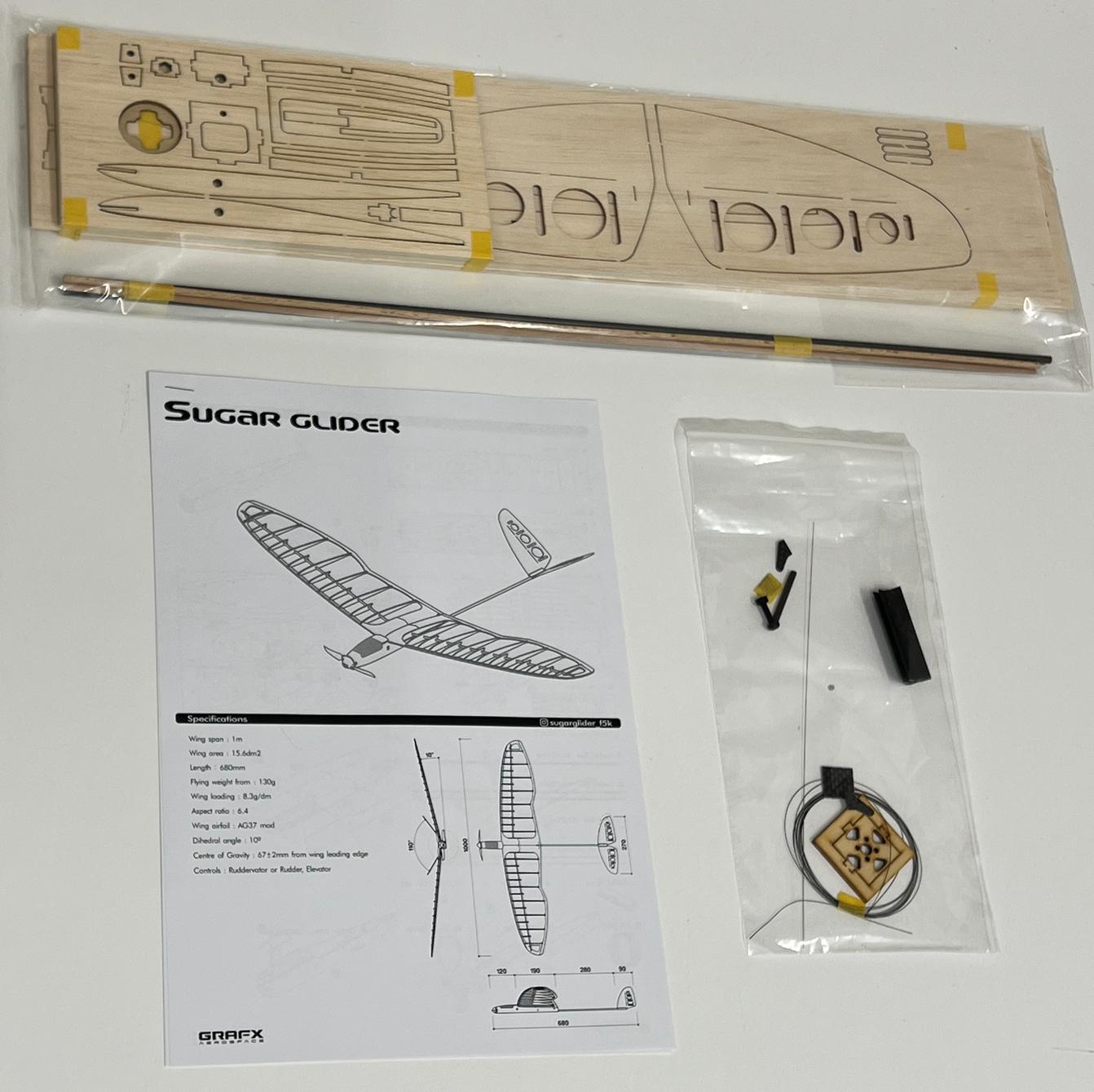

Most fun I’ve had with a small glider!It seems to do everything well and turned out great. The kit is very nicely made but slightly more difficult to assemble than expected. The servo mount shown in the videos isn’t included in the kit so you have to fabricate your own, but this is easily accomplished using some of the spare stock. Make sure to use a lightweight covering to prevent over shrinking the wing since the trailing edge side can be fragile. The BMS-101DMG servos fit perfect barely clearing the bottom of the wing. Anything wider will require some additional planning. I wish it came with a full-size plan but that would probably just increase the price.
AUW came in at 123g. Instead of the recommended equipment, I used some leftover components in the build and was very happy with how it all works together. Here is my setup:
Motor EMAX 1106-KV4500 with Graupner CAM 4.7×2.3 prop & VM 25mm Spinner for 11xx Motors
Rcvr Lemon DSMX Diversity LM0034Z
ESC MX-12A
Servo 2 x Blue Bird BMS-101DMG
Batt 2S 350 HV (GNB3502S70AHV)
