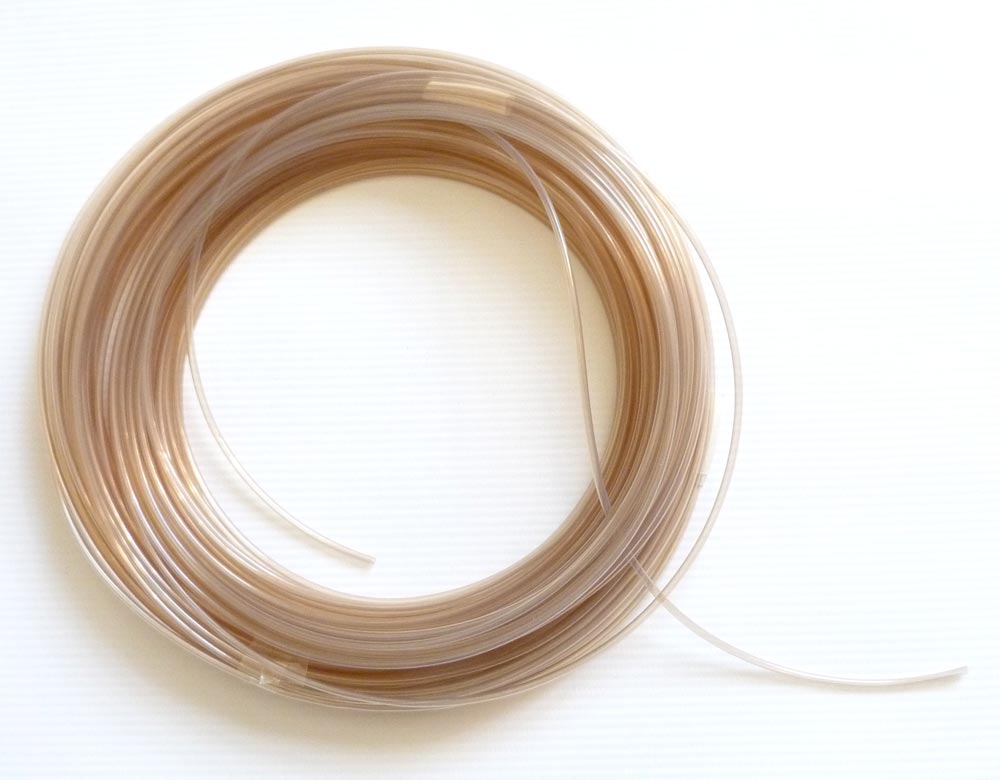

1.68mm ID Etched PTFE (14 AWG Bondable PTFE) Pushrod Outer Tube

Product Code: PTFE-TUBE-14L

(7 reviews)

Price: $2.52

Description

Low friction 1.68 mm ID PTFE tube suitable for pushrod outers on F3J & F5J models, discus launched glider and other small models. Also suitable for a large range of engineering and industrial uses.

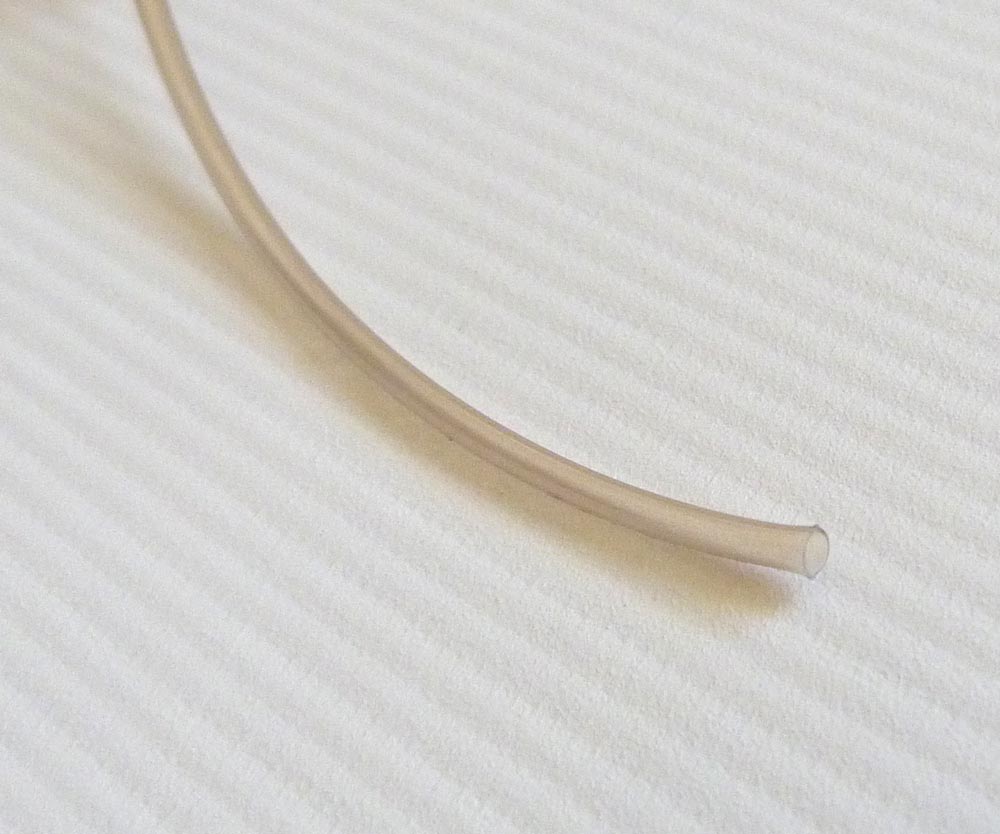

This tubing is specially etched on the outside, making it easily bondable using many adhesives, thin CA being probably the best. Provides the lightest, easiest, most friction-free pushrod installations possible.

Can be stretched to 2 times the original length to reduce the weight per meter, and tune the inside diameter to be a perfect fit for the inner pushrod. Sold by the meter. Enter a quantity of 3 for a 3m roll.

14L Etched PTFE Tube Specification
Inside diameter	1.68 mm	0.066 in
Wall thickness	0.2 mm	0.008 in
Outside diameter	2.0 mm	0.079 in
3X Stretched ID	1.02 mm	0.040 in
Suggested inner	1mm & 1.3mm Carbon Rod	16 SWG or thinner Piano or SS wire
US size	14 AWG L type (Lightweight)
Weight per m	2.9 g per meter

Maximum 30m per order please. For more please consider purchasing a complete roll.

More details

PTFE Tube Stretching, Sizing, and Installation PDF [11kb]

Reviews 7

15/09/2023 06:56

Review by: Anonymous

Very good product

06/03/2021 15:09

Review by: John Hsu

PTFE push rod outer tube

These are perfect for housing your pushrods. Neal and the Hyperflight team are super responsive and quick to ship out the order.

18/04/2018 17:51

Review by: Tim

Great for bikes

If you are trying to fit new brake or gear cables to your road bike and the cables are internally routed then this product is the perfect dimensions to use as a guide / straw.

12/11/2014 11:30

Review by: Hrvoje

Excellent product, Item as described, fast shipping and delivery (to Croatia… now EU member). Stretching really easily and adjusting to desirable wire diameter. I prefer to oil the wire before inserting in tight stretched tube.

02/10/2014 10:08

Review by: Ric Nicholson

PTFE Tube

Great product. Very easy to use. Had slight problem with initial adhesion, and as usual turned out to be Pilot Error...I needed to wipe down the surface with Isopropl C2H5OH. Keep curves smooth and bore free of grit and/or adhesive and they work very well.

Stretched this tube to fit a smaller size of Carbon/Boron rod. To be fair this is the first time I have used these tubes and I had some problems during the stretching. You need to make sure that you complete the stretch on the first attempt as pointed out in the PDF.

08/07/2013 14:33

Review by: John Neale

Bondable teflon

An excellent product and by far the easiest way to instal lightweight snakes.

Slide a wire inner into the tubing to allow the tubing to take up the shape of the fuselage between the servo and the control horn. Just add a few drops of cyano to the outside of the tubing to secure. The result is a virtual frictionless control run..

25/03/2013 09:52

Review by: Ian Coutts

Pushrod outer

Excellent product which I have now used in two models.
Easily bonded to keep in place and free movement of the pushrod.
I will definitely use it again.
