Universal Mount - 32mm 16 & 19mm Motor Holes

Product Code: PNC-UNIV-32

(5 reviews)

Price: $32.42

Description

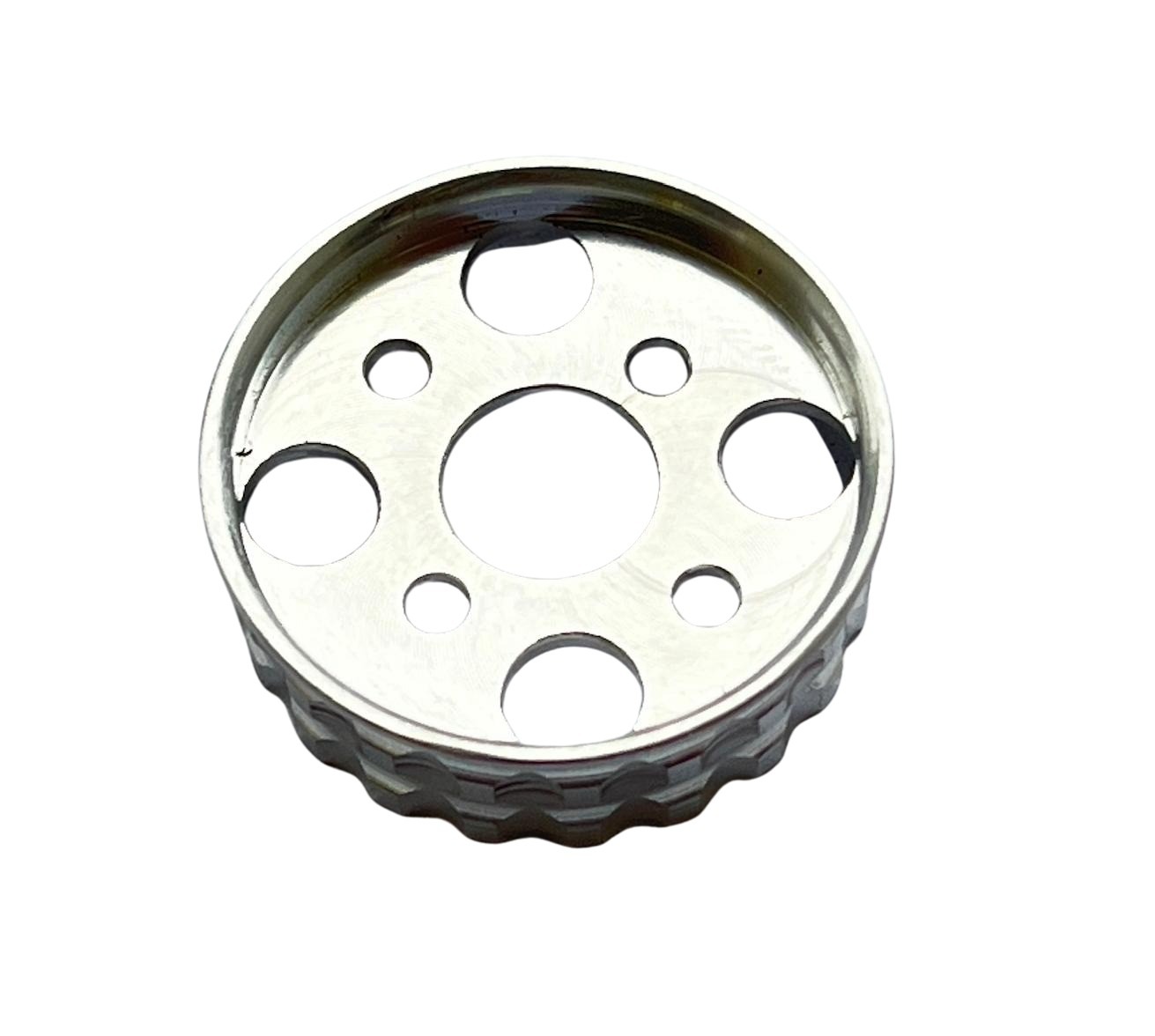

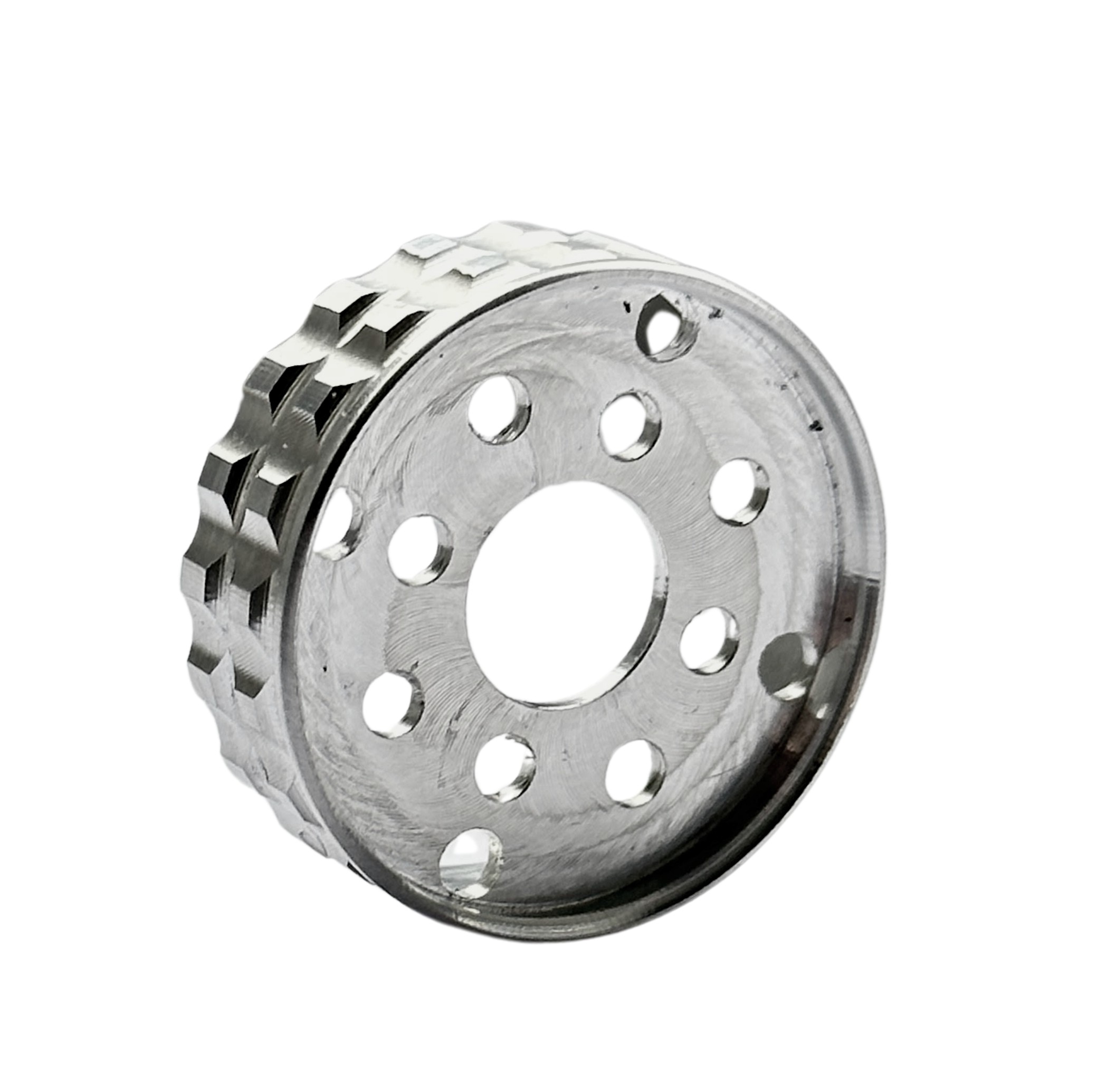

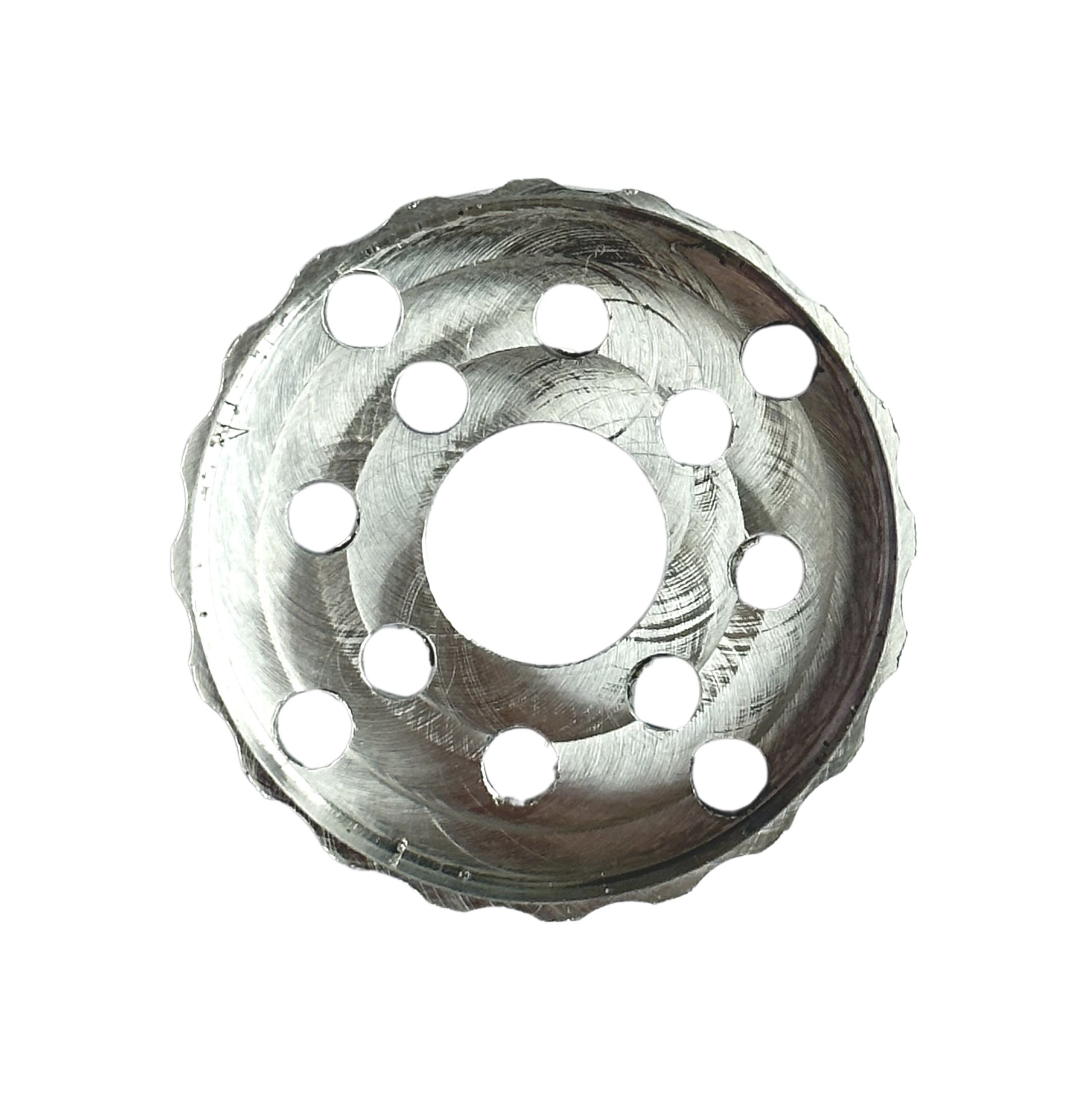

The PNC Innovations 32 mm Kontronik KPG 25 / Speed 480 / Speed 600 / Universal Motor Mount is a beautifully CNC machined motor mount for securely attaching Kontronik KPG 25 / Speed 480 / Speed 600 / Mega and may orther motors to the front of 32 mm diameter fuselages. The bolt hole pattern is as shown in the second photo.

Easy to install.
Very strong.
Superb machining.
They look great!

To attach these CNC motor mounts to carbon/kevlar/glass fuselages a strong high temperature glue is required. We recommend this glue or JB Weld. Epoxy can be used but the strength is impaired at high temperatures.

32mm Universal Motor Mount
Fuselage outside diameter	32 mm
For fuselage internal diameter	30 mm
Firewall internal diameter	27.5 mm
Centre hole	12.1 mm
Predrilled hole pattern 1	2 holes on a 16 mm diameter circle
Predrilled hole pattern 2	2 holes on a 19 mm diameter circle

Reviews 5

01/07/2024 09:04

Review by: Anonymous

Excellent product and service

06/01/2023 04:07

Review by: Mike Wade

Love this Mount

This mount in either the 30 or 32mm diameter along with a GM spinner , 4mm collet, and GM 9x5 blades are the perfect match to the Dualsky XM2230EG-16. The motor is 22.4 X 29.4mm , develops 275 watts on 3 cells, and the combo's total weight is 64gm. It's all I use for under 30 oz models

15/09/2022 19:07

Review by: Pete W

Great Product

I used this mount when installing an XPower2925/8 Windy motor into a Vladimir Models Super Glider fuselage. Good match to the motor and easy installation into the Fuselage.

23/02/2021 16:37

Review by: Ian

Nice bit of kit

Very nicely made. Fit and finish are actually better than the photos. Had to ease two of the holes to accept 3mm screws, but that only took a matter of minutes.

11/01/2019 06:46

Review by: Vincent

Nice finishing product ! 3.5gm. Outer diameter 32mm. Inner need to trim a little bit to fit my 28.1mm can motor.
