M2 Stainless Steel Pushrod Ends for 2mm Rods (2)

PE-2MM-SS
Product Code: PE-2MM-SS
 (8 reviews)

Price: $2.80

More than 30 in stock
Add to basket to see shipping cost
Quantity

Description

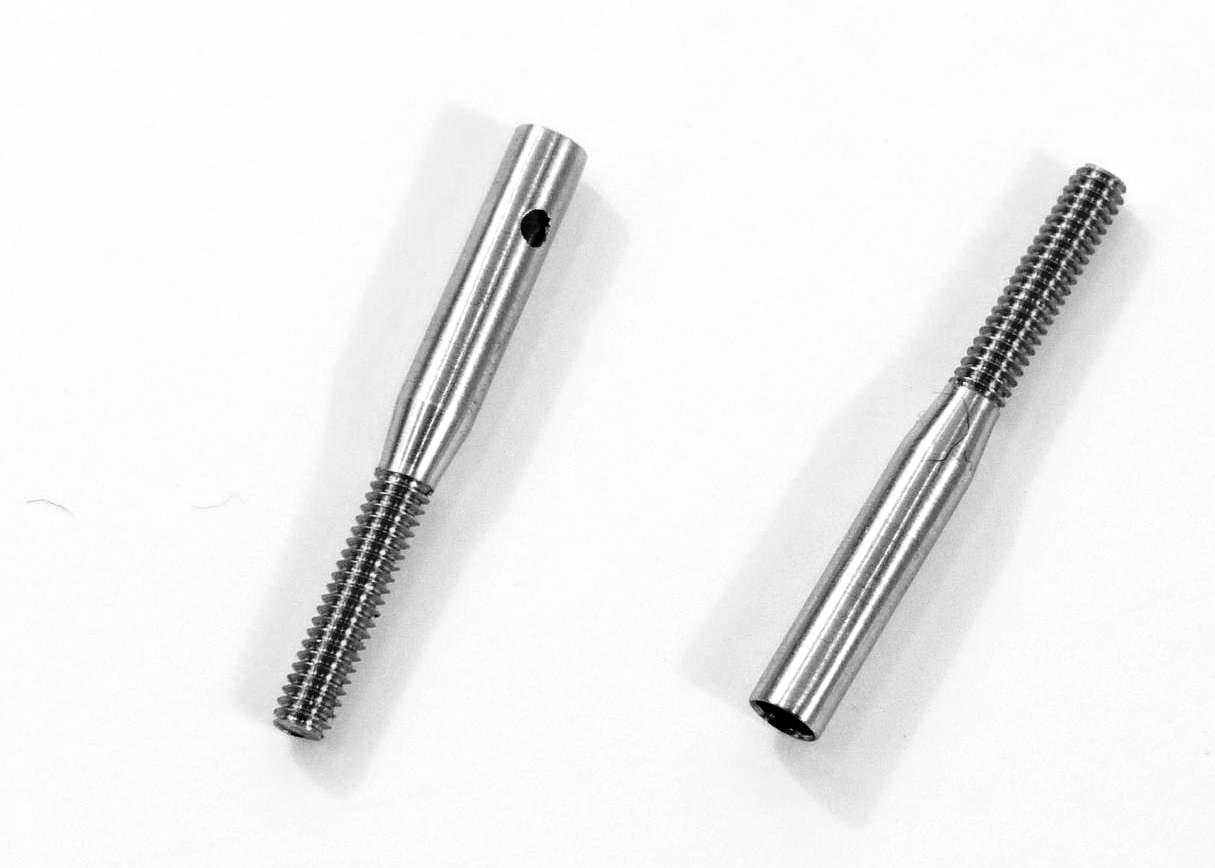

A pair of high quality stainless steel pushrod ends with M2 threads cut at one end and a tube to take a 1.8mm to 2mm carbon rod (or other material).

Note two SS pushrod ends only are supplied, rods and clevises must be purchased separately. Suitable for 1.8 mm to 2 mm carbon or steel rods. Attach by coating the pushrod in epoxy or thick CA. The hole is to allow the air and excess glue to escape. Degrease before gluing.

Stainless Steel 2mm Long Pushrod End Specification
Pushrod hole size 2 mm
Pushrod tube length 10 mm
Threaded portion length 11.5 mm
Overall length 26 mm
Thread size M2
Weight (each) 0.70 g

Reviews 8


 Review by:

Great Quality & Service

Great solution for making carbon push rods. I epoxy these to the end of a carbon rod. Finally coating the carbon rod and aluminium end with epoxy and heat shrink the assembly before the epoxy sets. This makes a strong end set up that will stand most if not all stresses.


 Review by:

Harrier repair

Very nicely made. Perfect for carbon rod. Fast delivery


 Review by:

vqn perfectos con l varilla de carbono de 2mm, los agujeros laterales dejan salir el aire y el epoxi ,quedan perfectos


 Review by:

good product


 Review by:

Very nicely made. Fits my 2mm CF pushrod perfectly for glue joint. Threads are well formed. I also like the small glue hole. Well thought out design


 Review by:

2M stainless steel pushrod ends for 2mm rods

Beautifully made parts that do exactly what they claim. My only complaint is that their threaded sections are too short to allow much adjustment.


 Review by:

Quality Counts

Install with confidence that they won't shear at the start of the thread.
Great Quality


 Review by:

I find all Hyperflights products are all of excellent quality
backed up by first class service
