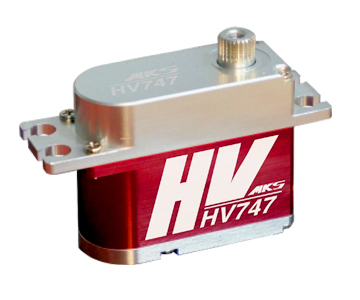

| MKS HV747 Servo Specifications | ||
|---|---|---|

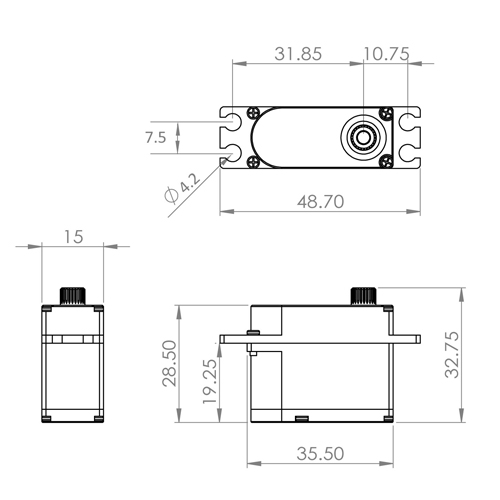

| Body dimensions | 35.5 mm wide x 15.0 mm thick x 28.5 mm high | 1.40" wide x 0.59" thick x 1.12" high |
| Max dimensions | 48.7 mm wide x 15.0 mm thick x 32.8 mm high | 1.92" wide x 0.59" thick x 1.29" high |
| Stall torque (6V) | 11.8 Kg.cm | 164 oz.in |
| Stall torque (7.4V) | 13.8 Kg.cm | 192 oz.in |
| Stall torque (8.2V) | 15 Kg.cm | 208 oz.in |
| Weight | 35.5 g | 1.25 oz |
| Lead length | 30 cm | 11.8 in |
| Operating speed (6V) | 0.17 sec/60° | |
| Operating speed (7.4V) | 0.14 sec/60° | |
| Operating speed (8.2V) | 0.13 sec/60° | |
| Operating voltage | 6V to 8.4V | |
| Operating temperature | -10 to 50 °C | |
| Bearings | 2 ball races | |
| Gear material | Chrome-titanium alloy | |
| Case material | CNC machined 6061 aluminium | |
| Motor type | 12 x 20 mm coreless motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 1 µs | |
| Pulse width for ± 60º | µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |
| Supplied accessories | 2 HD plastic output arms, 2 arm retaining screws, 4 mounting screws, 4 rubber gromets | |
| Optional accessories | Frame with bearing for the MKS HV747 | |
Review by: Alf Hansen
Small,m powerfull and smooth operating. Using several of these in elevator stabs to reduce weight
Review by: Russell
Great SercoVery good quality servo, smooth genuine 1us deadband and very powerful! Great prompt service from Hyperflight.
Review by: Robin
Mms servosGreat service very handy as the are on my door step and good price as well and is always very helpful
Review by: Robin
Mms servosGreat service very handy as the are on my door step and good price as well and is always very helpful
Review by: Seongmin choy
Goodgood working
Review by: Andreas C.
Sehr gutes Servo MKS HV747MKS HV747
gute und Schnelle, Problemlose Lieferung.
Top Produkte sehr guter Händler
Review by: William
This is a very good servo. I use them on the flaps of a 2.5m ds glider.
They are not the fastest servo but in this application where they spend most of their time holding the flap to neutral the compromise for torque is well worth it.
Main challenges was finding aluminium servo arms.
Review by: Gunnar
ServoThe servo looks very good and it runs smooth and exact positions with low noise in movement and static.The power seems like promised.
Review by: Gianluca
excellentThe best 15mm servo in the world!!!!!
Review by: Ronald
MKS HV747 servoUsing MKS servos in my high end glider and also in the Blaster 2e with satisfaction, accurate and no slop, the decision to choose MKS again in my new F3A plane was not so hard. Happy that MKS is going the High-Voltage way, as the voltage bandwidth in the older products is to narrow, which increases the requirement of a good powersupply. This has gone now and looking forward to see this new series in action in a couple of weeks.
As usual, Hyperflight's service and delivery are outstanding, prices are good too.
