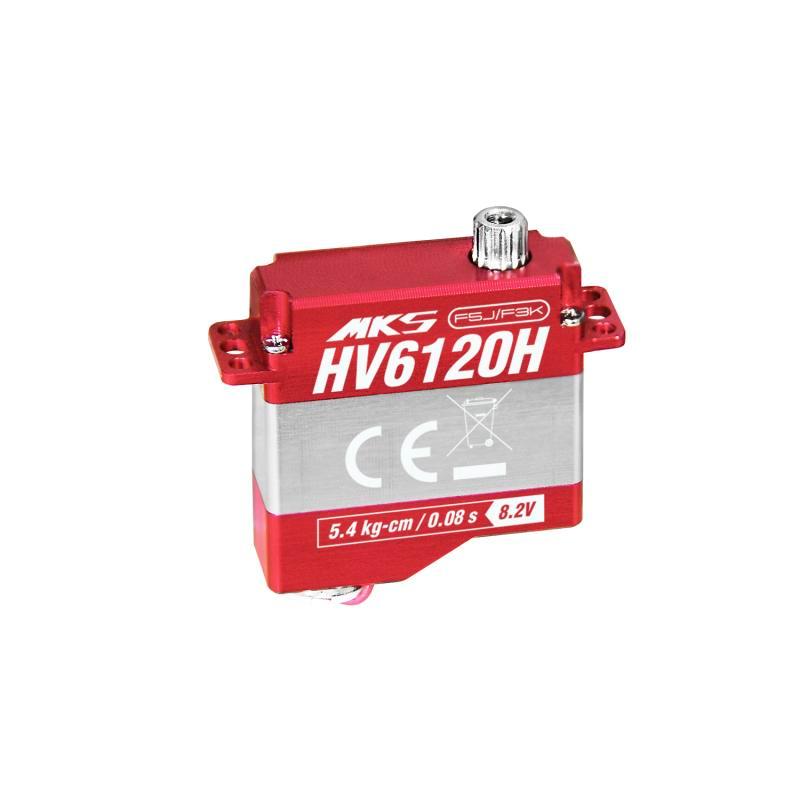

MKS HV6120H Servo - 5.4Kg.cm 0.08s 11.0g 8mm

The MKS HV6120H servo is the latest servo from MKS aimed at the F5J and light large glider market. It has normal mounting lugs suitable for fuselage mounting. It is more powerful, faster, and considerably more robust than the DS6100 and HV6100 servos, and operates over a wide voltage range. It is rated for operation down to 3.5V making it safe for use on 1S LiPo batteries and up to 8.4V making it fine on 2S LiPo batteries also.

The HV6120 is ideal for F3K, F5J, F5D, and all small models that require excellent precision, massive torque, and adequate speed. It is possibly the best 8 mm thick servo produced so far. It looks beautiful and with a torque of up to 5.4 Kg cm it is amazingly powerful.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

(c) 2021 Neil Stainton

MKS HV6120H Servo Specifications

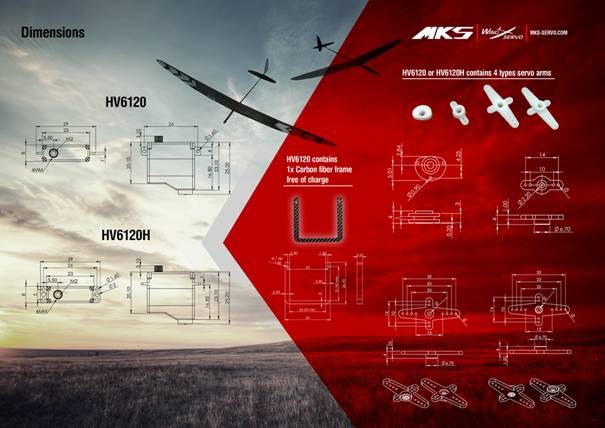

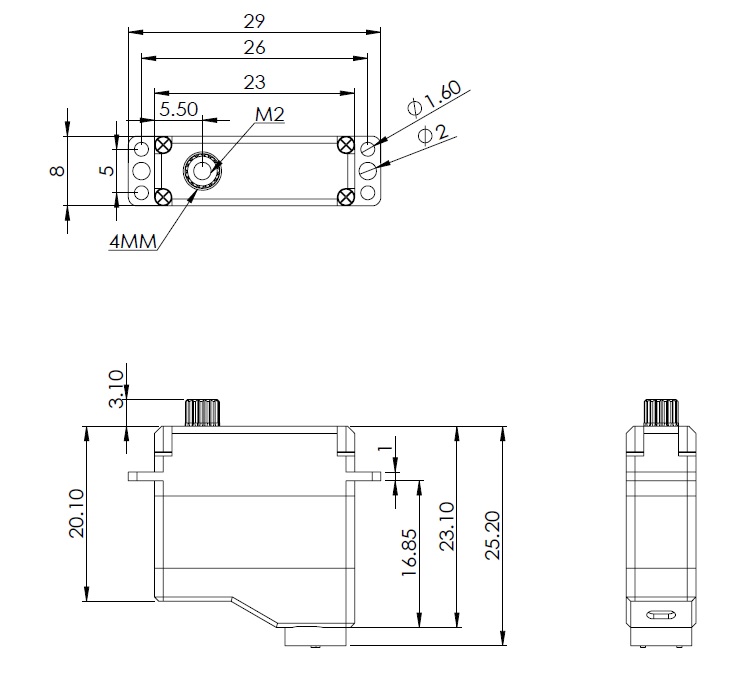

Body dimensions	25.0 mm wide x 8.0 mm thick x 23.0 mm high	0.98" wide x 0.31" thick x 0.91" high
Max dimensions	29.0 mm wide x 8.0 mm thick x 29.0 mm high	1.14" wide x 0.31" thick x 1.14" high
Stall torque (3.7V)	2.5 Kg.cm	35 oz.in
Stall torque (4.8V)	3.3 Kg.cm	46 oz.in
Stall torque (8.2V)	5.4 Kg.cm	75 oz.in
Weight	11 g	0.39 oz
Lead length	10 cm	3.9 in
Operating speed (3.7V)	0.18 sec/60°
Operating speed (4.8V)	0.14 sec/60°
Operating speed (8.2V)	0.08 sec/60°
Operating voltage	3.5V to 8.4V
Operating temperature	0 to 50 °C
Bearings	2 ballrace
Gear material	7075 Chrome-Titanium alloy
Case material	6061 Aluminum alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs - (0°) 1520 µs- (R) 2120 µs µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

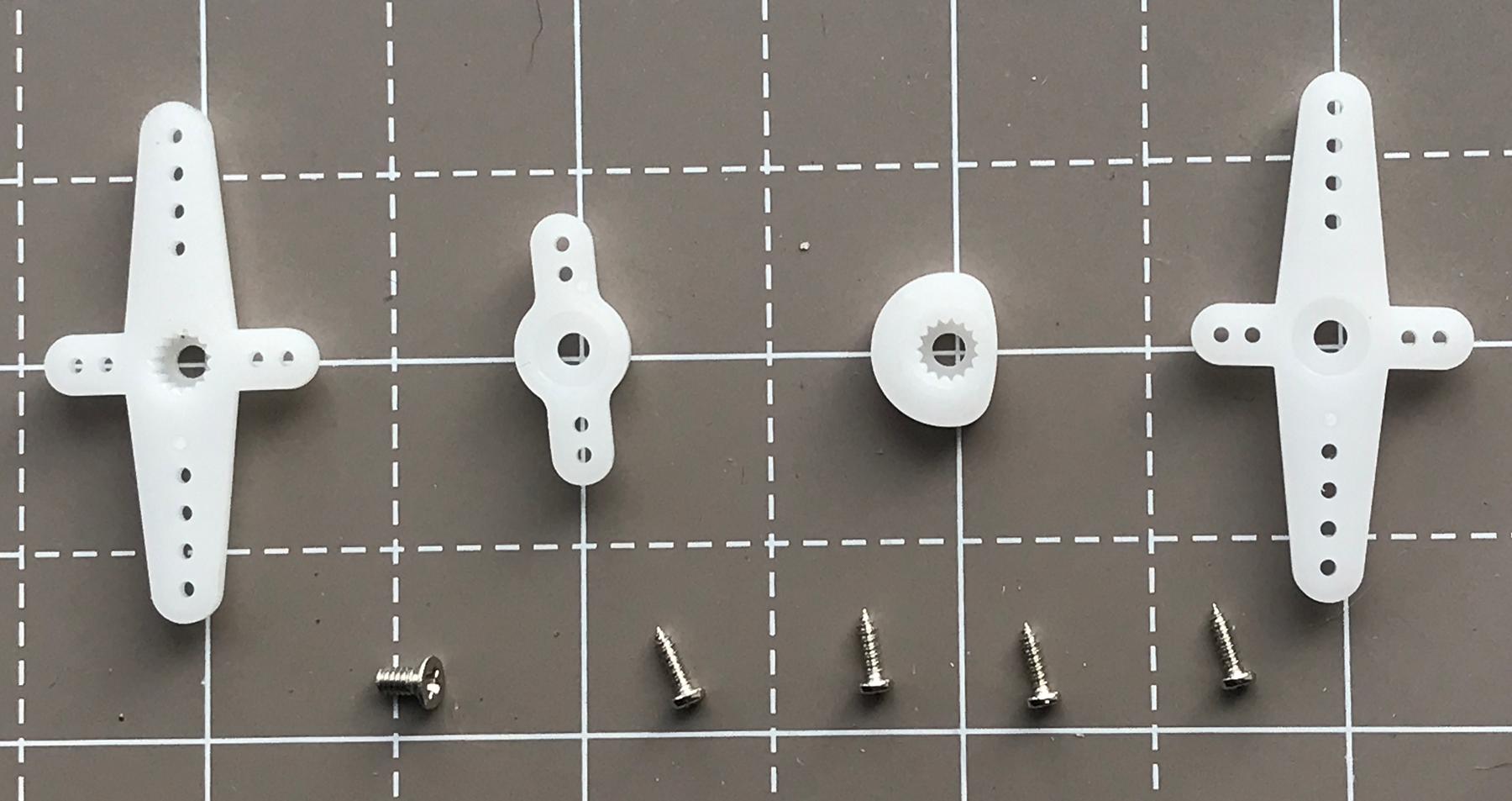

Supplied accessories	2 plastic output arms, 2 arm retaining screws, 4 mounting screws
Optional accessories	MKS Metal Servo Output Arms for HV6120, Ply Frame for MKS HV6120, Integrated Drive System/Mono for MKS HV6120, Integrated Drive System Foam for MKS HV6120

Specifications subject to change.
