High Quality Offset DLG Throwing blade

This new high quality Curved Offset DLG Throwing Blade improves launch height and throwing comfort. Beautifully molded from carbon fibre, and contoured to maximise launch height and comfort. The offset allows for the discus launch glider wing's dihedral angle, so the fingers stay approximately vertically aligned, even though the glider's wing will be angled up by about 6 degrees.

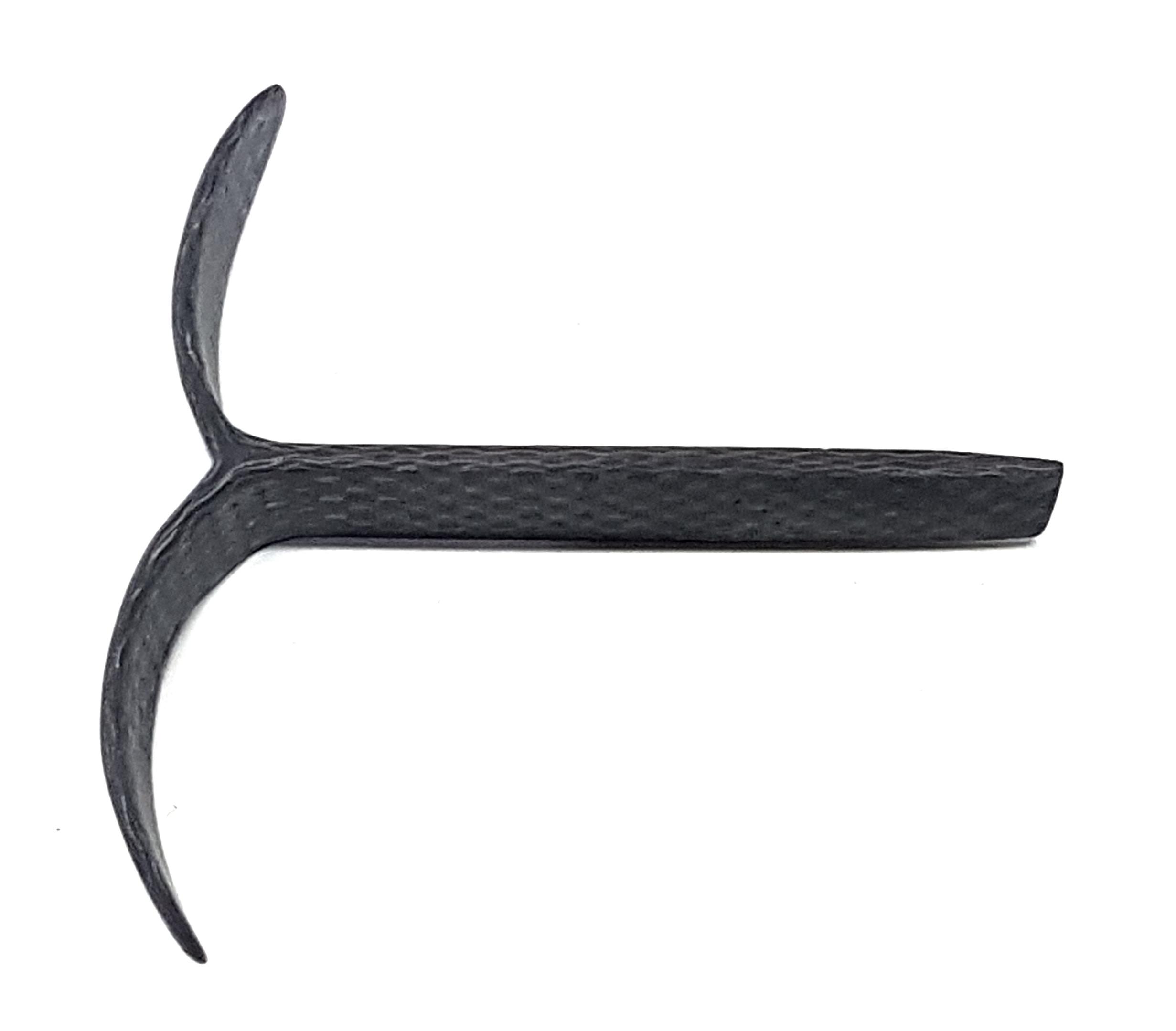

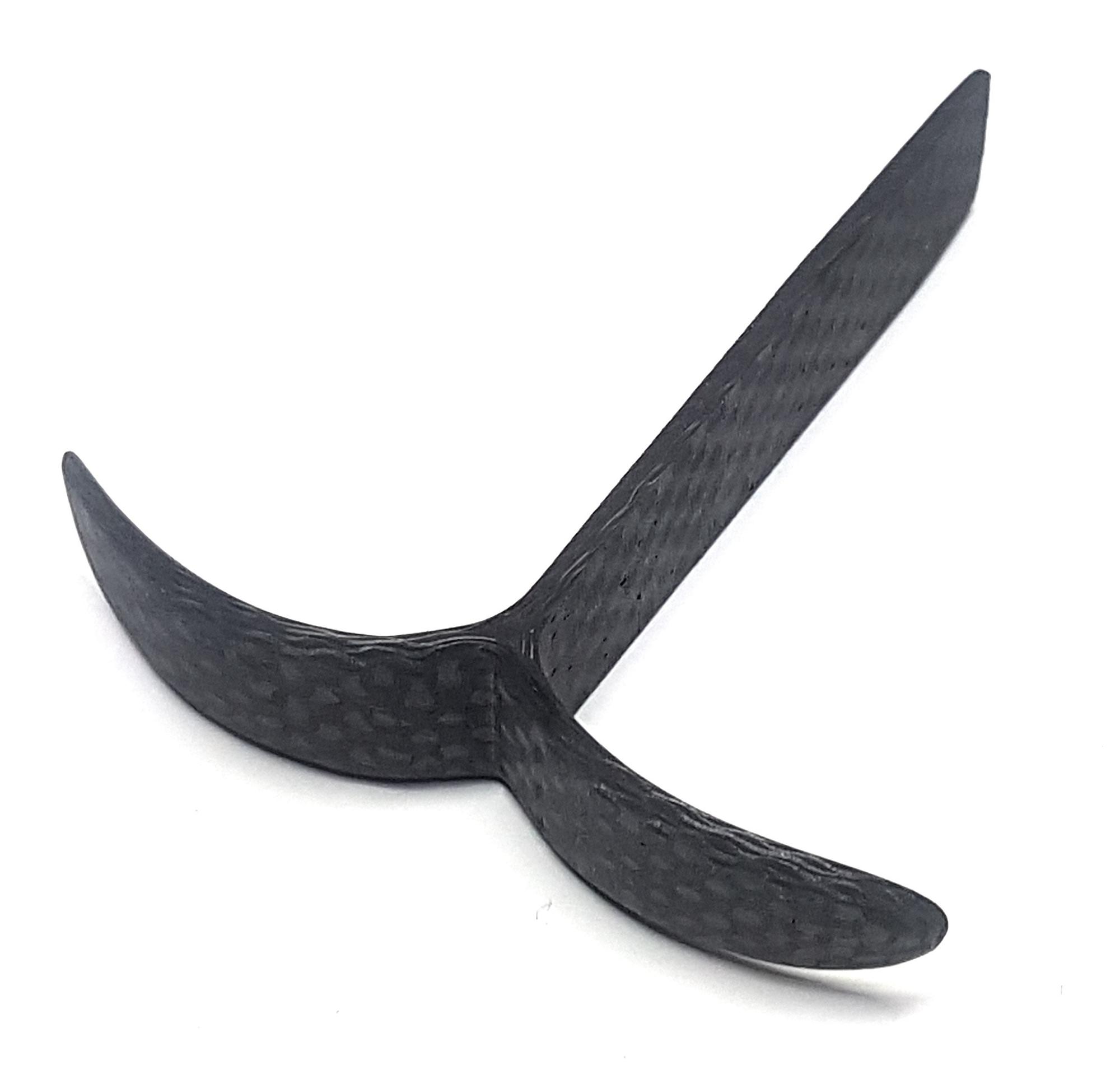

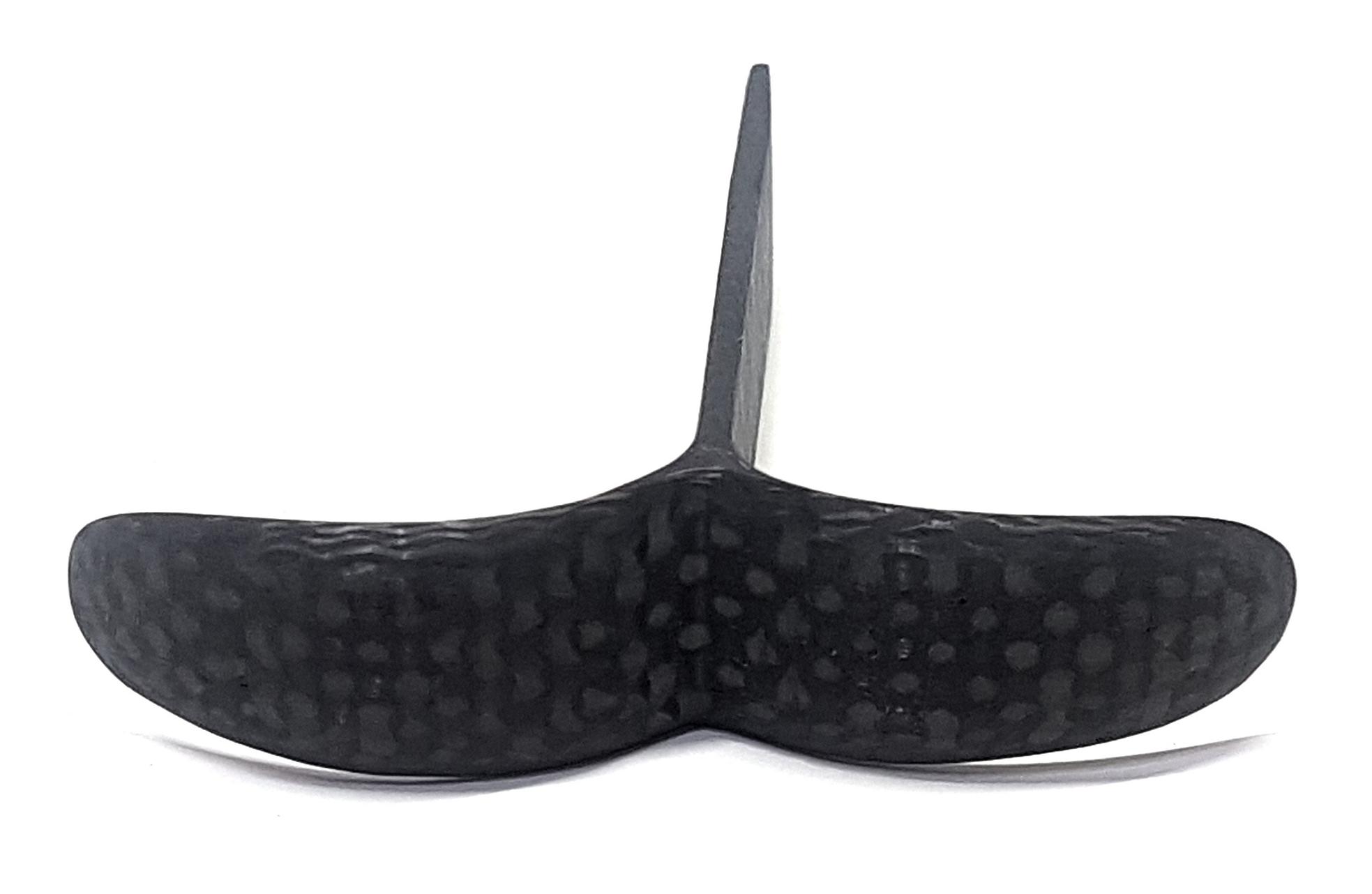

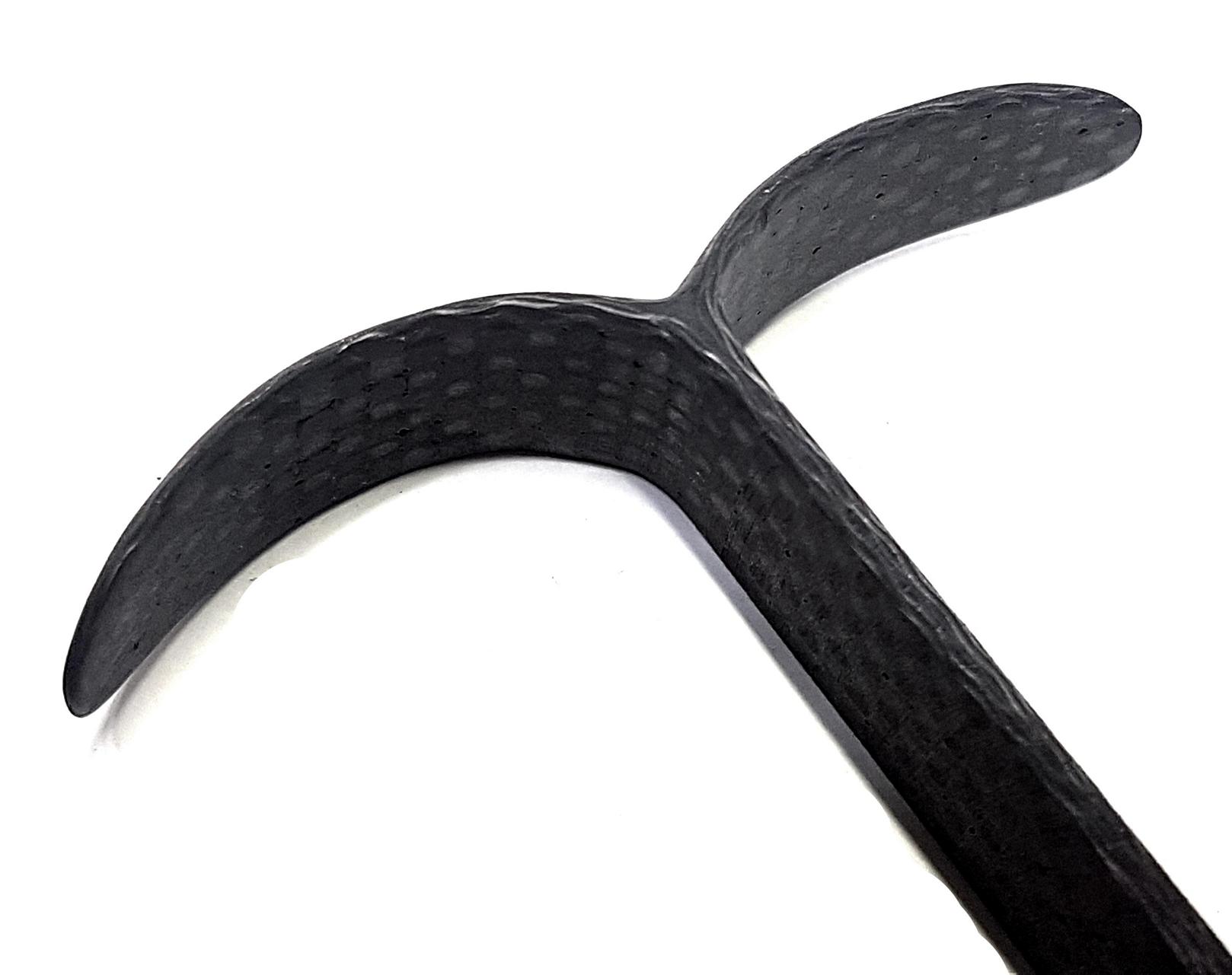

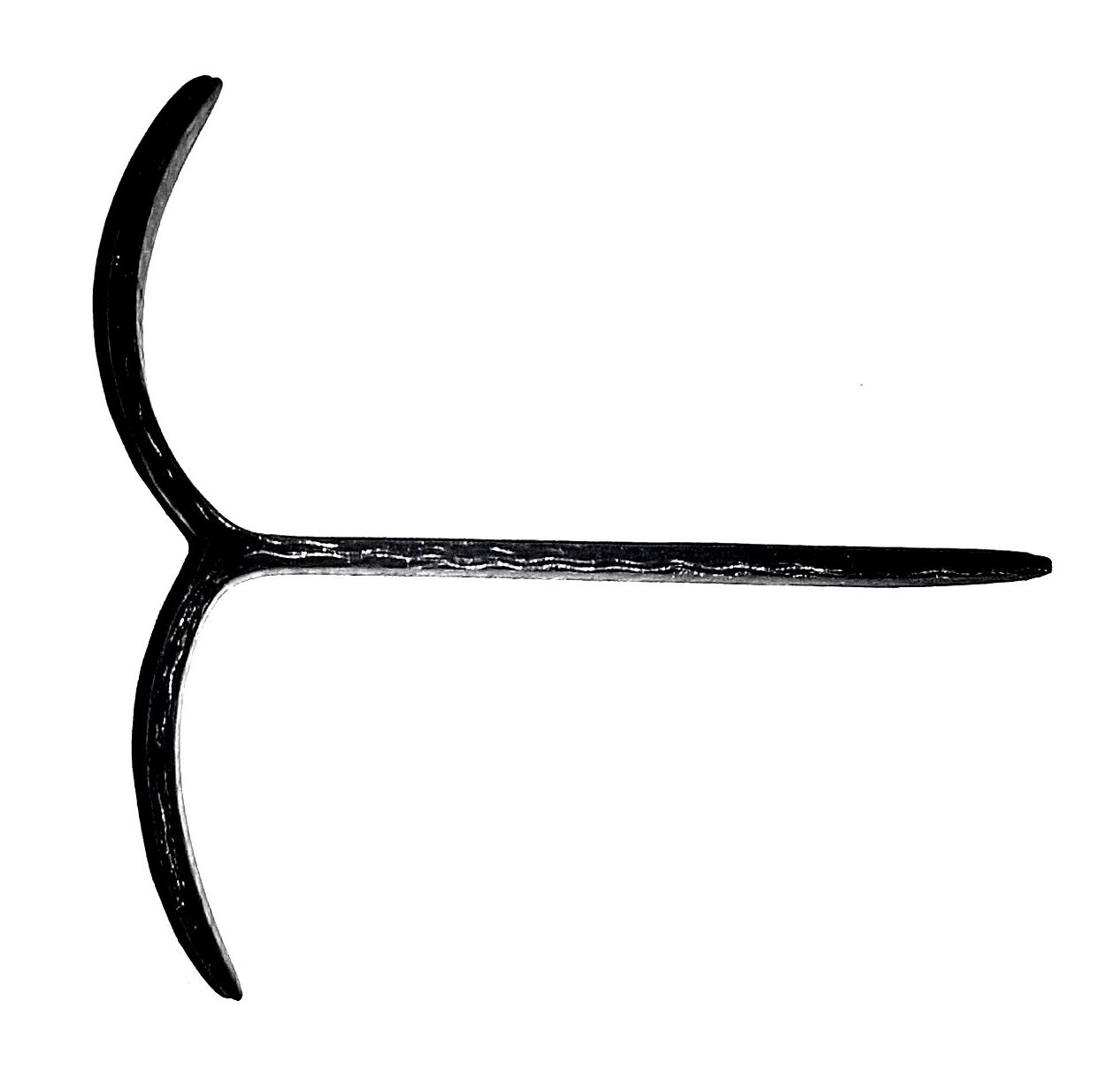

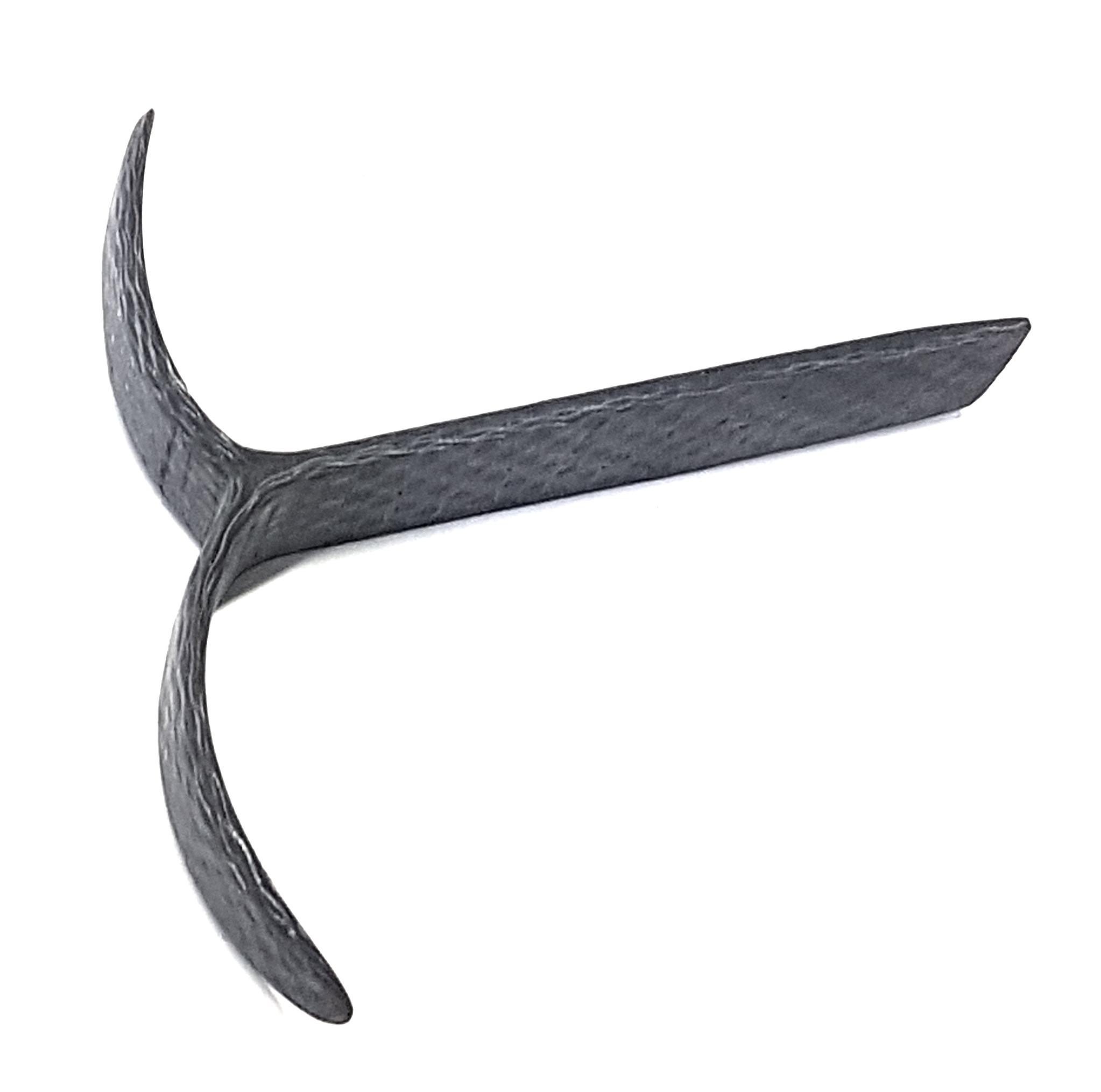

Curved Offset DLG Throwing Blade
Weight as supplied	3.2 g
Max thickness of carbon	1.7 mm
Height of both blades	58 mm
Max width	13.8 mm
Length of tang	48 mm
Height of a single blade	28 mm

The weight can be decreased by further reducing the thickness of the carbon towards the ends of the blades, and by profiling the edges, to approximate to a thin ellipse. See the attached Shaping DLG Throwing Blades PDF below.

To fit, open the end of the model's wing, and glue the tang inside the wing with epoxy or good quality thick CA. For excellent installation instructions see this T-Blade Installation RCGroups thread.

Also called a contoured DLG launch blade, a seagull throwing peg, a curved launch blade.
