Shrouded Servo Cover with small bulge (2)

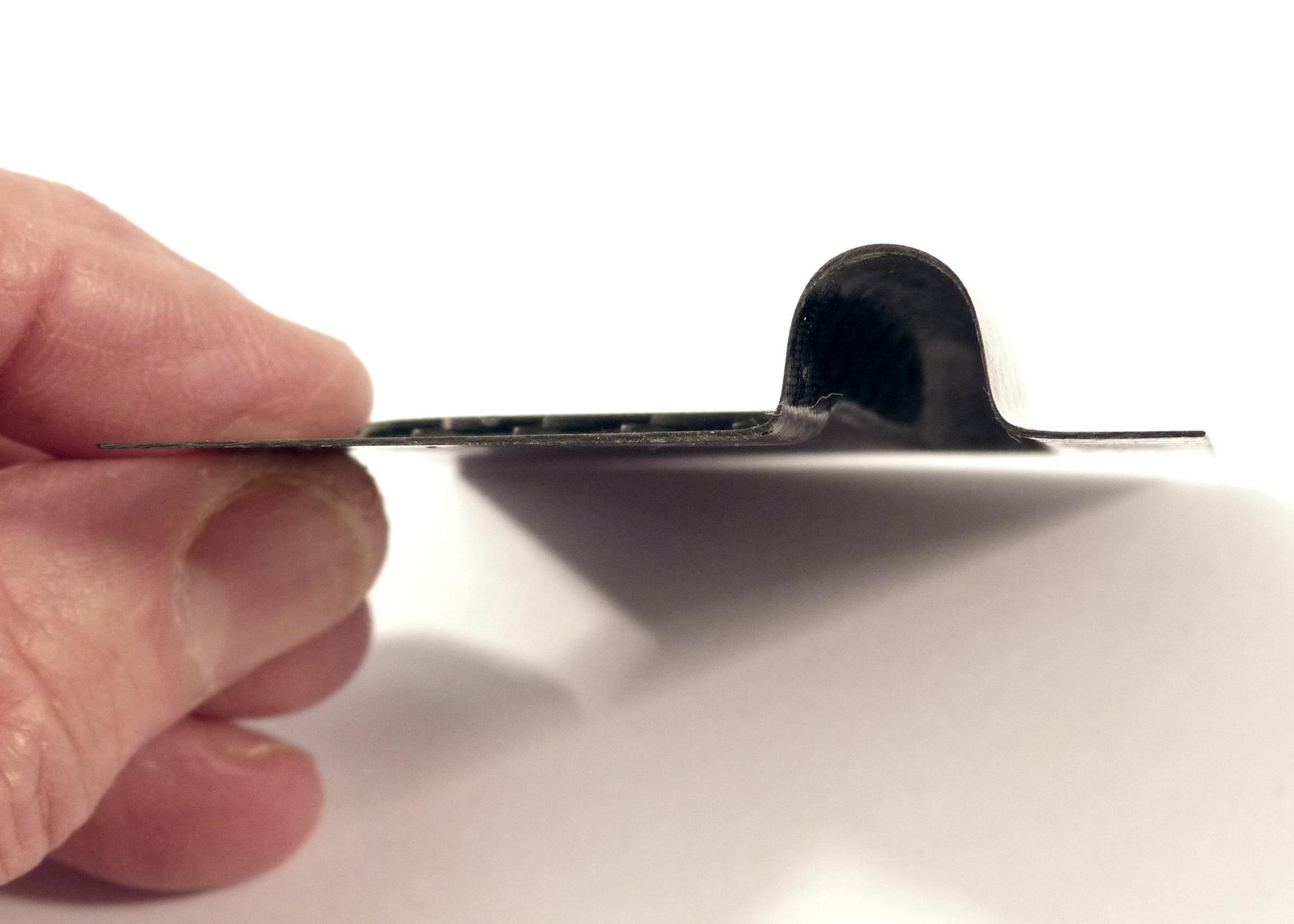

These beautifully molded wing servo covers are light, low drag, and look good and are molded with a small bulge to allow thicker servos to be used. The bulge is approx 1.5 mm deep and allows servos up to 13 mm thick to be used, depending on the wing airfoil thickness.

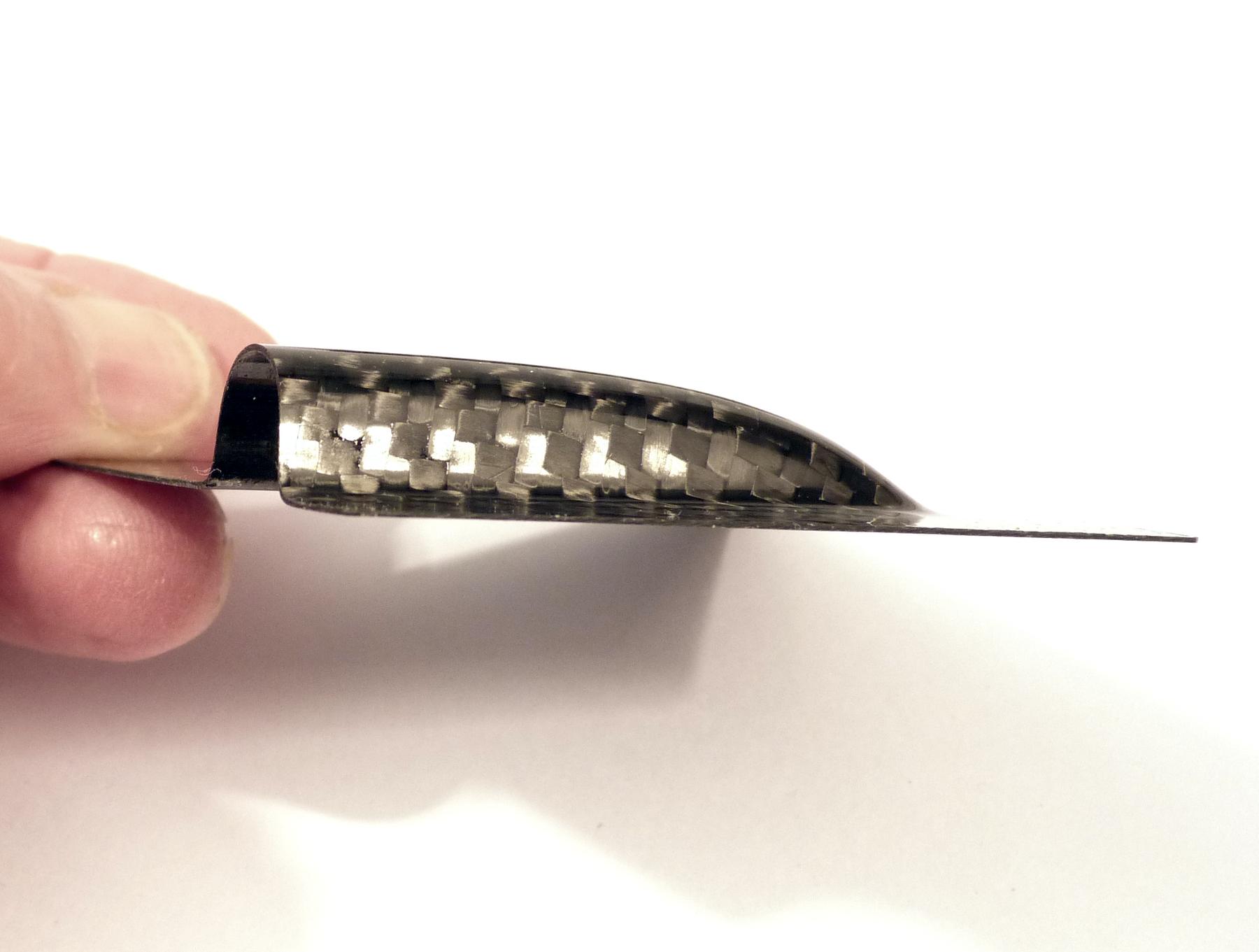

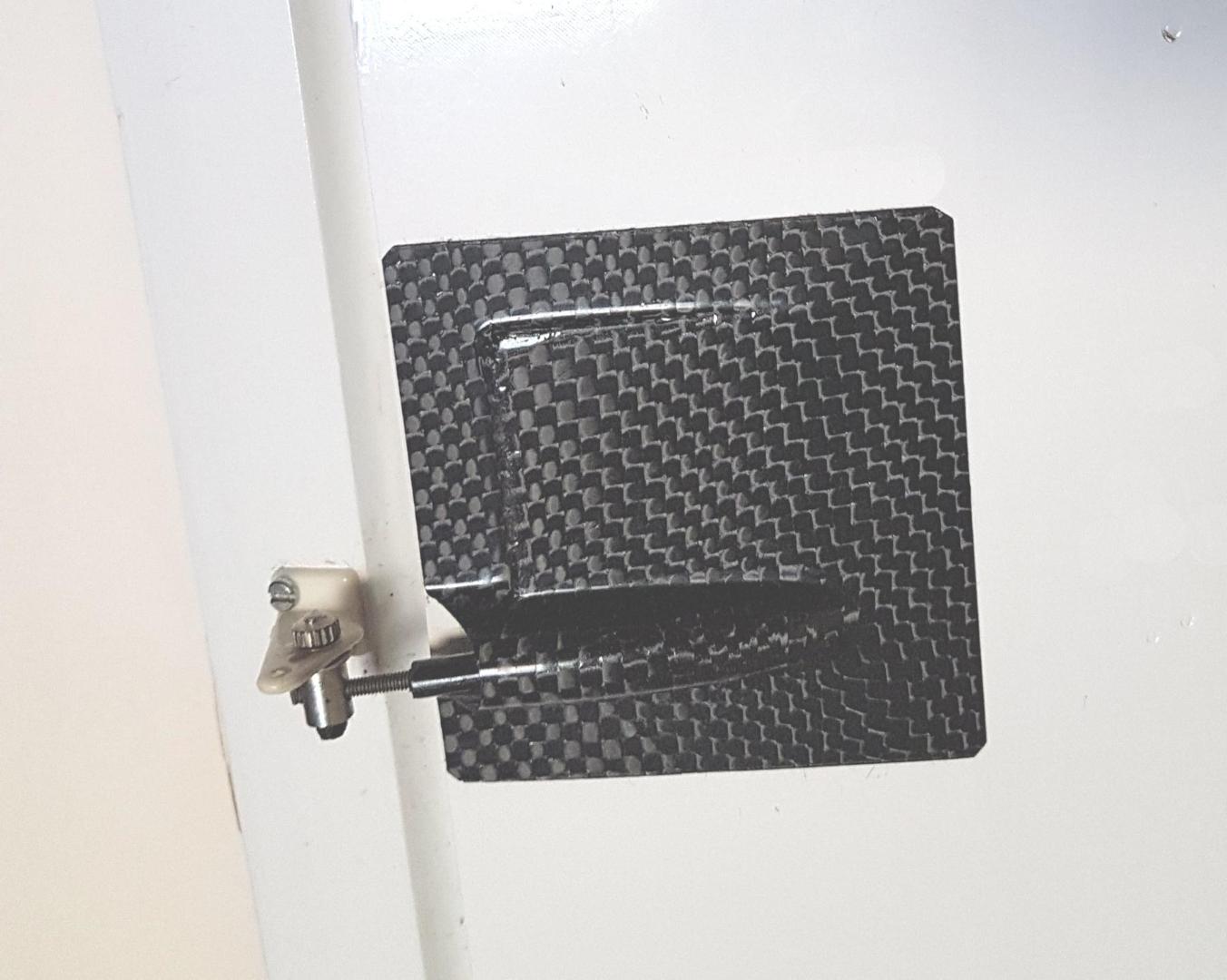

The large shroud covers the servo output arm, clevis, and the control rod. This reduces the turbulence and improves performance measurably.

Supplied in pairs.

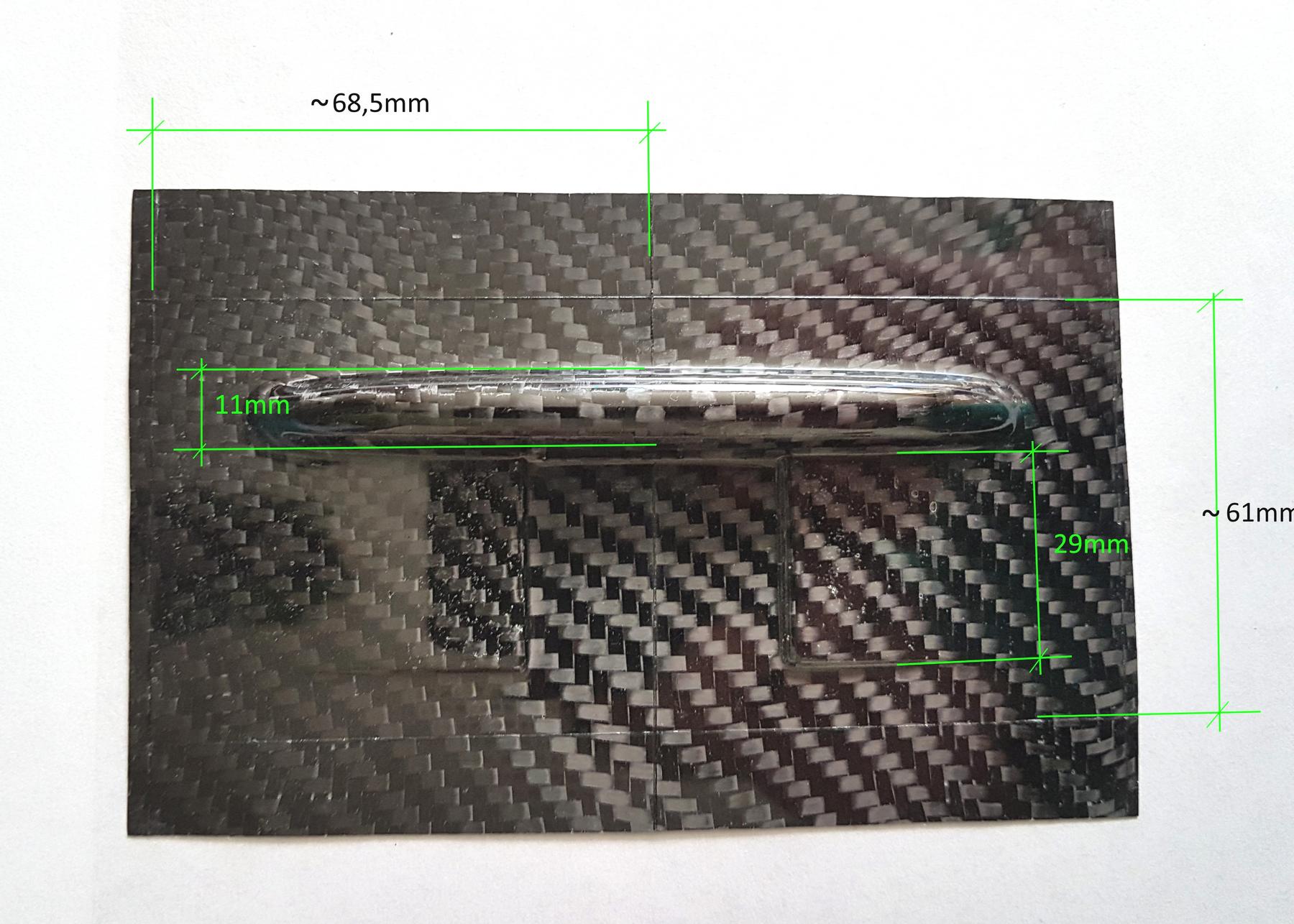

Shrouded Carbon Servo Covers (with small bulge) Specification
Thickness of carbon sheet	0.35 mm
Chordwise length	70 mm
Spanwise length	60 mm
Depth of servo bulge	1.5 mm
Distance of shroud from edge	11 mm
Thickness of shroud	10 mm
Height of shroud	10 mm
Weight	3.0 g

Trim to size to suit your application and attach with clear tape.
