KST X08H Plus Servo - 5.3Kg.cm 0.09s 9.0g 8mm

Product Code: KST-X08H-PLUS

(13 reviews)

Price: $40.97 save 15%

Description

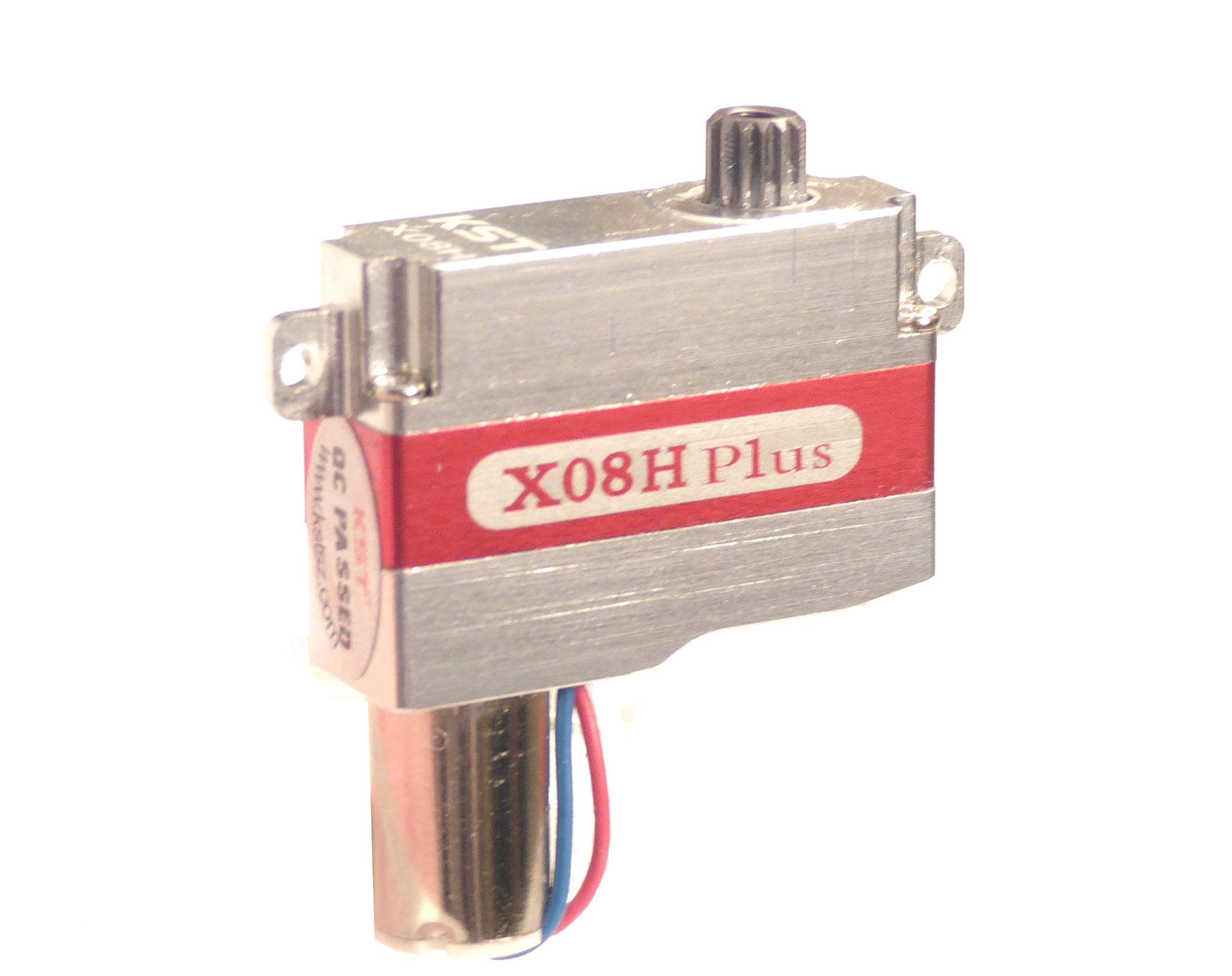

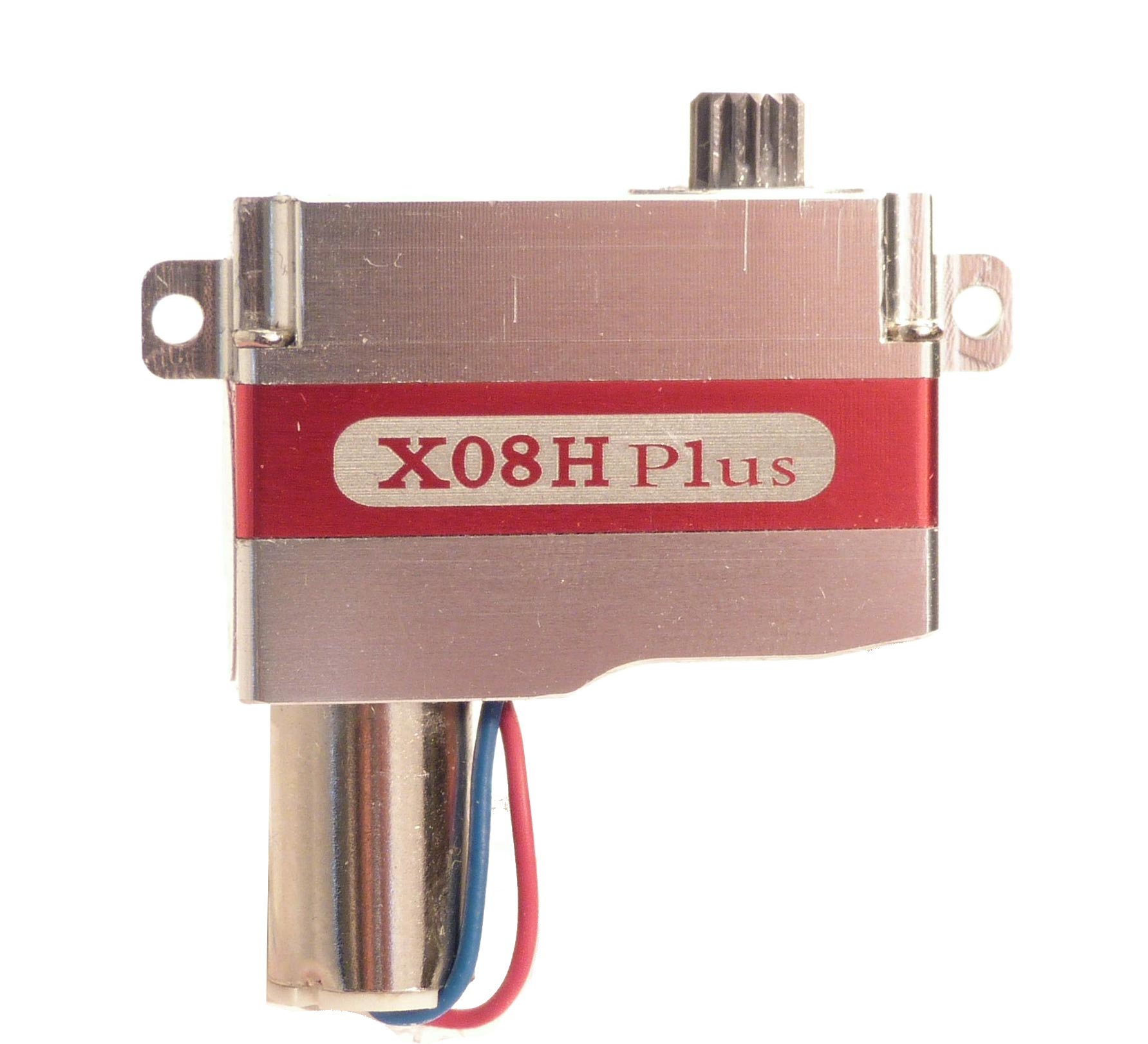

The KST X08H Plus is a version of the KST X08 Plus servo with horizontal mounting lugs (also called mounting tabs), making it suitable for use in wing and other flying surfaces.The KST X08H Plus is a very light (9.5 g) low/medium/high voltage metal cased servo. It is based on the well regarded KST X08H V5 servo but with a larger motor fitted.

It is especially good for ailerons on F5J gliders, electric racers, and all models with thin flying surfaces. Despite being only 8 mm thick the powerful coreless DC motor and gearing provide good torque and high speed. The X08H Plus can be operated from a voltage as low as 3.8V (1S LiPo) or as high as 8.4V (2S LiPo). KST servos have excellent geartrain machining tolerances, and this servo is completely slop free, and equal to products costing twice as much. Despite not having an -MG moniker this servo has metal gears, and is very tough.

The KST X08H Plus's high torque, good speed, and 8mm thinness make it suitable for many high performance glider, pylon racers and EDF applications. With up to 5.3 kg.cm torque the KST X08 is appropriate for F5J, F5D, F3J and many types of high performance models.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

KST X08H Plus Servo Specifications
Body dimensions	23.5 mm wide x 8.0 mm thick x 16.8 mm high	0.93" wide x 0.31" thick x 0.66" high
Max dimensions	29.5 mm wide x 8.0 mm thick x 31.0 mm high	1.16" wide x 0.31" thick x 1.22" high
Stall torque (3.8V)	2.4 Kg.cm	33 oz.in
Stall torque (6V)	3.9 Kg.cm	54 oz.in
Stall torque (8.4V)	5.3 Kg.cm	74 oz.in
Weight	9 g	0.32 oz
Lead length	10 cm	3.9 in
Operating speed (3.8V)	0.18 sec/60°
Operating speed (6V)	0.15 sec/60°
Operating speed (8.4V)	0.09 sec/60°
Operating voltage	3.8V to 8.4V
Operating temperature	-20 to 65 °C
Bearings	2 Ball bearings
Gear material	Aluminium alloy / copper-bronze alloy
Case material	Aluminium alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	1000-2000 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	3 plastic output arms, 1 arm retaining screw, 4 mounting screws
Optional accessories	Ply Frame for KST X08, Pulley For KST X08, KST X08 Servo Arm Set, Frame with plain bearing for the KST X08, Integrated Drive System/Mono for KST X08

Reviews 13

05/09/2022 07:03

Review by: Calvin

A very good choice for elevator servo on most modern sailplanes including scale. Size and torque have hit the sweet sport for this application specifically.

22/07/2021 11:26

Review by: Anthony Dodson

Excellent

Excellent service and awsome servos fitted the magnus slope soarer perfectly...was recommended by hyperflight..thanks again

02/07/2021 13:33

Review by: Alan

Ideal replacement servos for identical ones which had died suddenly. First rate service from the hyperflight team.

17/06/2021 12:30

Review by: John Quinlisk

KTS X08H

Ideal servos for thin wings with limited space.

14/06/2021 08:31

Review by: Fedor

Good price, fast shipping. Thank you!

22/05/2021 01:19

Review by: FlyGuy 101

Great 8mm servos. Use them in all our slopers here on the California coast. Don't like the small can and two thin wires hanging out. But no longer an issue as the new version of the Xo8 is the HS08 A for wings where the above mentioned can is enclosed in the servo body. If you have not tried these, give them a go. Rock solid in your hands and in the air!

29/11/2020 08:42

Review by: Matti Lahtinen

Very good servo

Quality servo for my purpose.

18/11/2020 19:34

Review by: John Quinlisk

KTS x08 servos

I have just bought 6 of these servos plus servo mounts. The service was first rate and although I made a mistake when ordering it was rectified very quickly. Overall a great service.

14/05/2020 17:53

Review by: Lasse

KST X08H Plus Horizontal Lug Servo - 5.3Kg.cm 0.09

The best servo for montage in wings on gliders

09/11/2019 11:42

Review by: Simon

KST X08H Plus Horizontal Lug Servo - 5.3Kg.cm

Great service and great servo on ailerons in my Stormbird

06/07/2019 18:12

Review by: Anonymous

Servo KST X08H Plus

The servo is a lightweight micro powerful high precision servo. I use this servo i my gliders and is the best servo i can buy.

27/05/2019 07:43

Review by: Vladimir

Хорошее сочетание " цена-качество ".

28/02/2019 22:55

Review by: Roger Sanders

KST X08H Plus Horizontal Lug Servo - 5.3Kg.cm 0.0

I have used the standard sized XO8 servos without problems. This new "Plus" servo has almost twice the power without being much larger. When they work, they work very well with minimal (but not zero) backlash in the gears.

However, I have had 50% failure rates in these servos. The failure is in the electronics, which suddenly fail to respond at all. The cause of the problem is unclear.

Fortunately, the failures occurred while the servos were being used on the flaps, so the failure did not result in the loss of the aircraft. Due to my experience, I would recommend that you avoid using these servos on critical controls like the elevator where reliability is essential.
