KST X06 V6 Servo - 1.8Kg.cm 0.07s 6.4g 7mm

Product Code: KST-X06

(23 reviews)

Price: $35.50 save 15%

Description

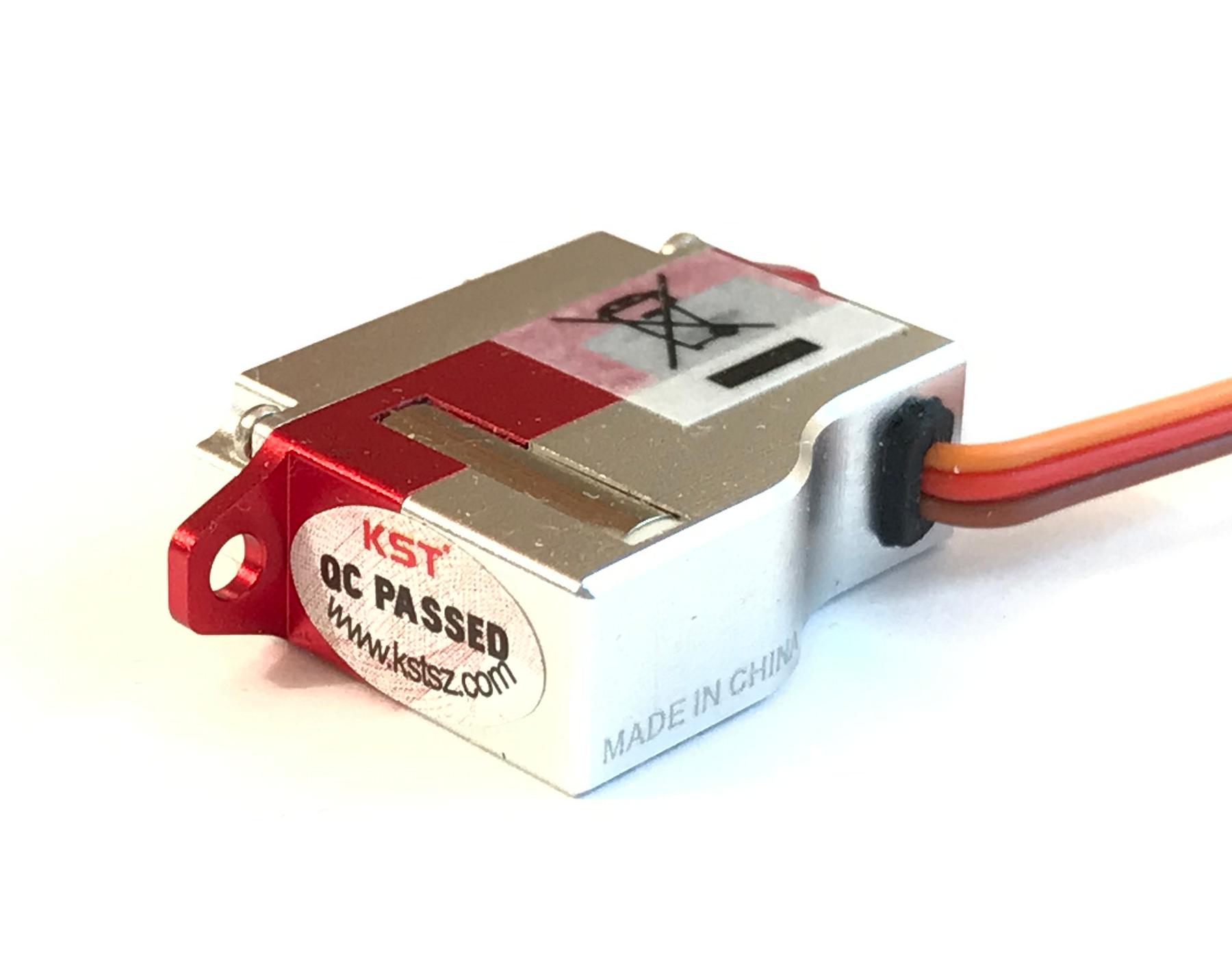

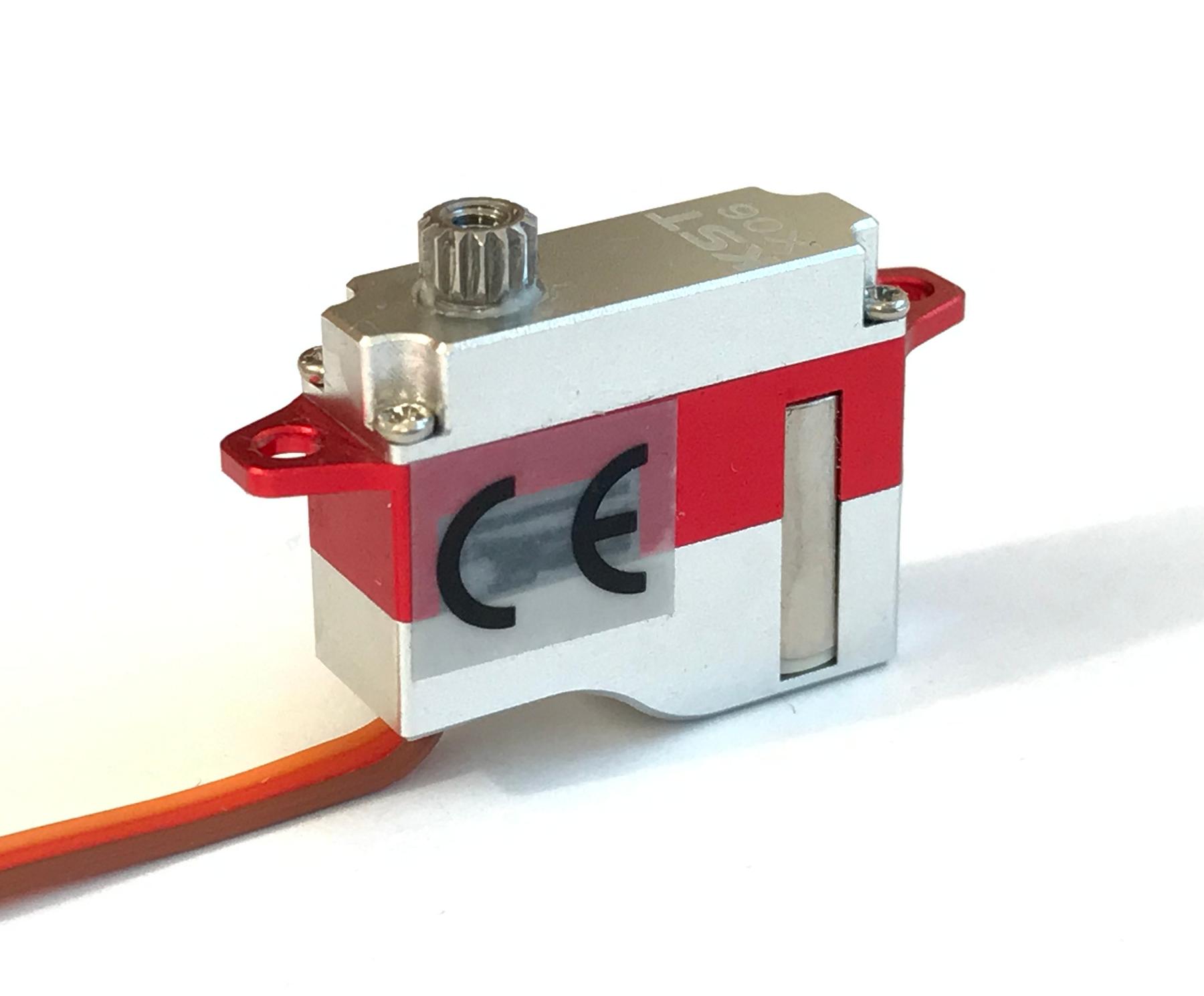

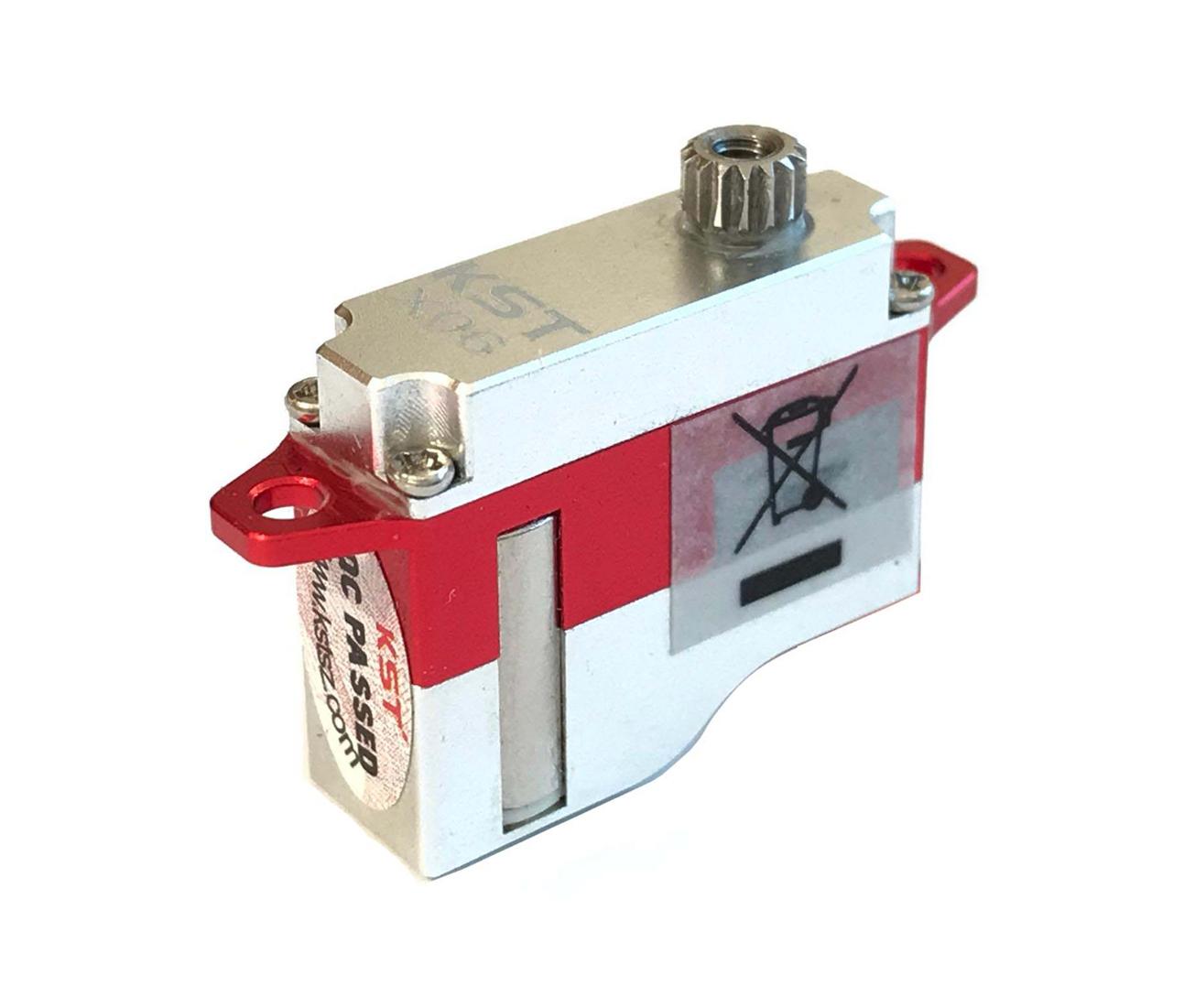

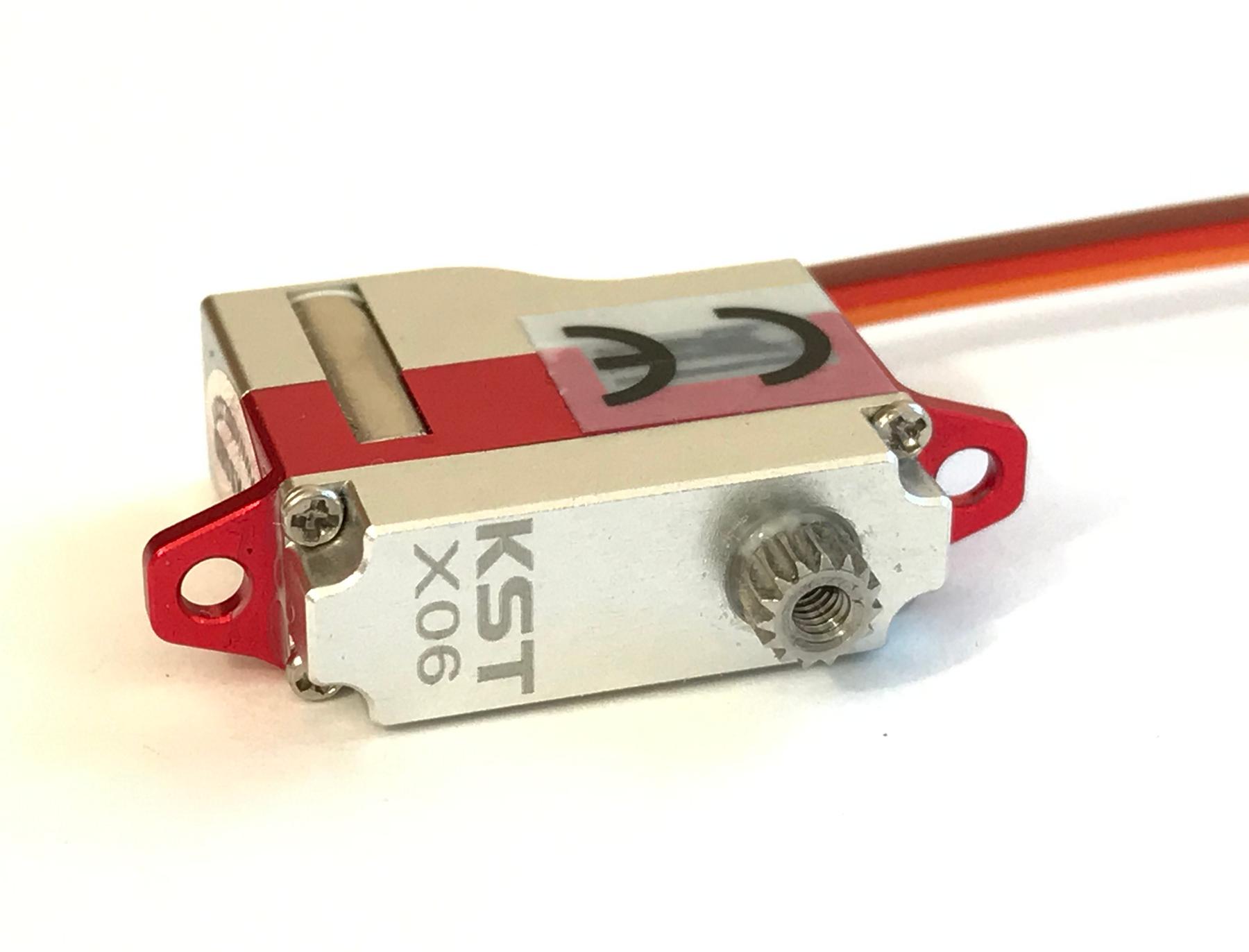

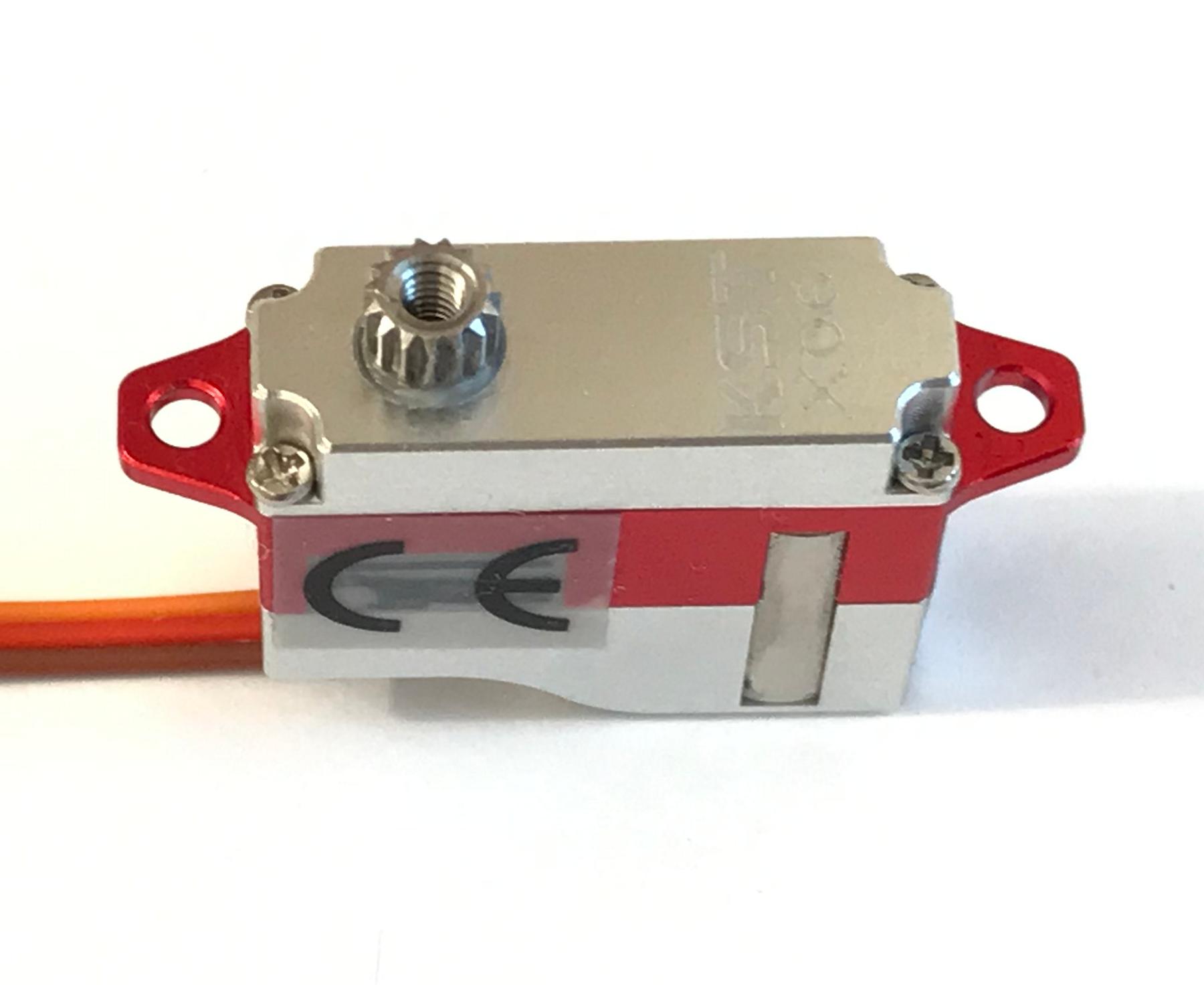

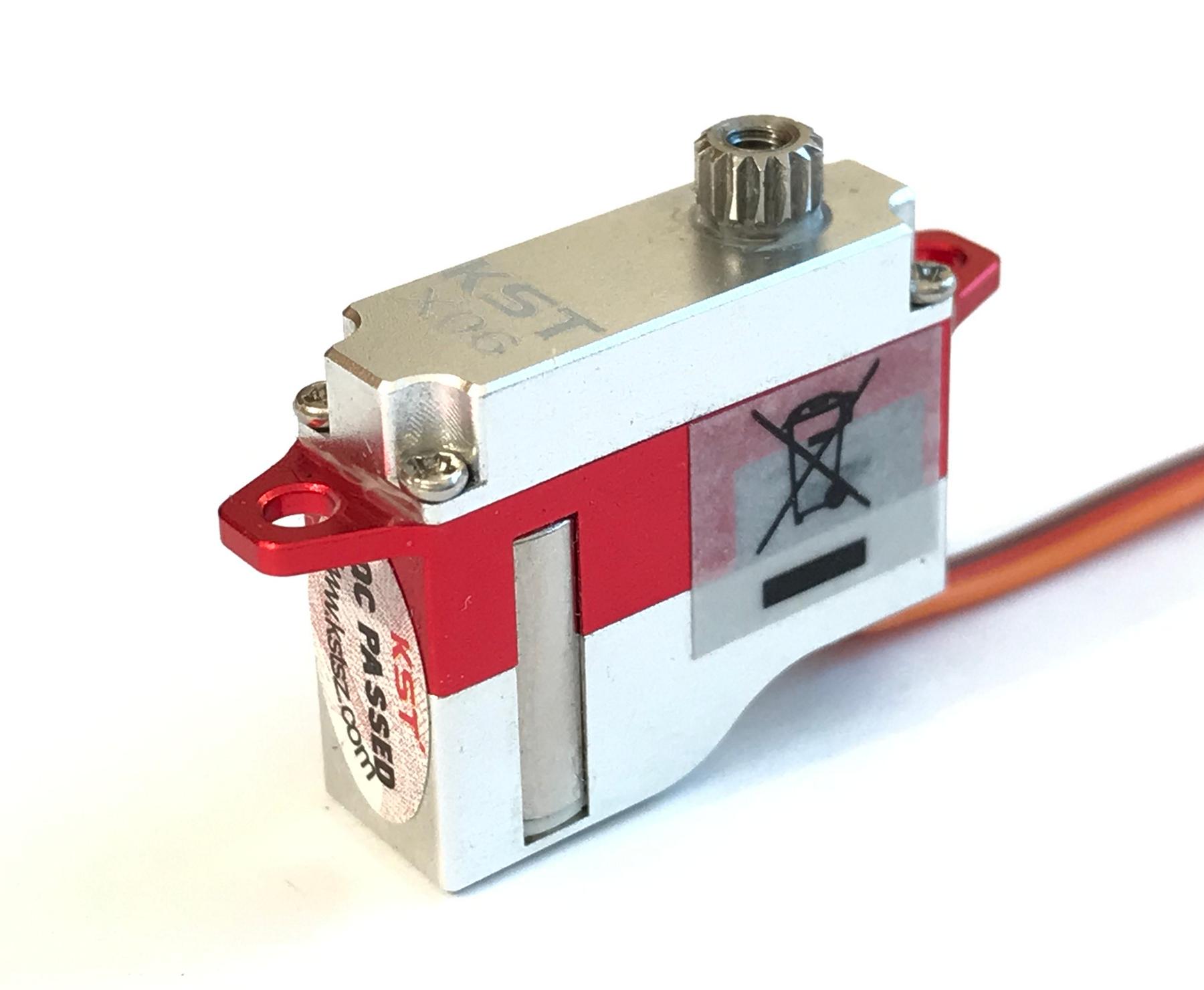

The KST X06 V6 is a 7 mm thin servo weighing only 6.4g. Perfect for discus launched gliders (DLGs) and many smaller models. The incredibly slim casing is crafted from 7075 aluminium alloy, so not only do these servos look fantastic but they are also very rigid and robust. The new V6 version has the same great specifications as the old servo, but is also programmable using a PC based or a press-button programming tool.

The KST X06 has a hardened steel drive train and a coreless motor capable of running all the way from 3.8V to 8.4V (1S to 2S LiPo) making these WV (wide voltage range) servos will deliver the power and reliability you need. Although some say this tiny servo is too small for 1.5m DLG aileron surfaces it actually has more torque on 2S LiPo than a KST X08 has on a 1S battery.

The accessories include four strong nylon output arms, two double sided, and two single sided, one of which is low profile. This means that when the servos are mounted one in front of the other the control rod of the front one won't foul the rear one.

KST X06 Features

Ultra slim 7 mm body
Compact and light weight design
Good torque and speed
Wide 1S to 2S LiPo voltage range
Excellent heat dissipation
7075 Alloy casing
Hardened Steel gears
Designed for lightweight high performance RC Gliders

KST X06 V6 Servo Specifications

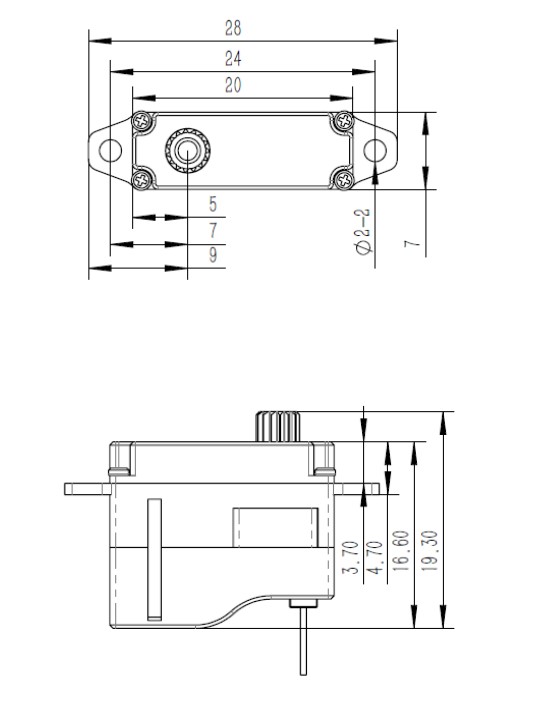

Body dimensions	20.0 mm wide x 7.0 mm thick x 16.6 mm high	0.79" wide x 0.28" thick x 0.65" high
Max dimensions	28.0 mm wide x 7.0 mm thick x 19.3 mm high	1.10" wide x 0.28" thick x 0.76" high
Stall torque (3.8V)	0.8 Kg.cm	11 oz.in
Stall torque (6V)	1.5 Kg.cm	21 oz.in
Stall torque (8.4V)	1.8 Kg.cm	25 oz.in
Weight	6.4 g	0.23 oz
Lead length	15 cm	5.9 in
Operating speed (3.8V)	0.12 sec/60°
Operating speed (6V)	0.08 sec/60°
Operating speed (8.4V)	0.07 sec/60°
Operating voltage	3.8V to 8.4V
Operating temperature	-20 to +65 °C
Bearings	1 ball bearing
Gear material	Hardened Steel
Case material	7075 aluminium alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	1000 - 2000 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	4 output arms, 2 arm retaining screws, 4 mounting screws
Optional accessories	Pulley For KST X08, KST X06 Arm Set, KST X06 X06N X06H Gear Set, Plastic Frame only for the KST X06, Ply Frame for KST X06

Note although the X08 arms will fit they are slightly deeper. When fully screwed into place the arm will jam on the top of the servo case. Either trim away a little of the nylon arm sleeve, or avoid fully tightening the retaining screw.

Stall Current: 0.58A
Continuous rated Current: 0.22A

More details

KST X06 Specifications [621kb]

Reviews 23

01/10/2024 01:14

Review by: Mike Dunn

Fantastic Customer Service

No matter what product I’ve purchased from HyperFlight I’ve always received top notch communication and support! Neil is so knowledgeable and helpful! Love doing business with them!

27/04/2023 17:35

Review by: Paul Wellacott

Perfect servos for my 2M RES models rudder and elevator.

27/04/2023 13:13

Review by: Paul Wellacott

Perfect servos for my 2M RES models rudder and elevator.

01/12/2022 20:38

Review by: Anton

Servos used in a V tail E-Res model. Seem very precise with good centering. Plenty of power for application. Well worth spending the extra $ for quality. As usual great service from Hyperflight

09/10/2022 08:30

Review by: Bryan

KSTx06

Perfect servo for F5j type aircraft, and great support from Hyperflight.

05/10/2022 19:40

Review by: ES

KST X06 V6 servos

Got these for a couple of Alien DLG/Slopers....Fit nicely....Tight service!!

15/08/2022 12:06

Review by: Stuart McCloud

KST XO6 Servos

Fantastic service from Neil at Hyperflight as usual!

27/07/2022 18:12

Review by: Scott

KST X06 V6 Servo

The guys at Hyperflight are prompt, courteous, and kind with advice/assistance when asked.
I would recommend them to anyone, and have....
I live halfway around the world from them and always receive my orders promptly.

19/05/2022 06:55

Review by: Tony Whittaker

kst 06 servo

Smooth and small, not cheap, but that's the point

10/05/2022 07:34

Review by: Rex A.

The usual well packed and quick delivery for these tiny, jewell like servos. Bench tested only at this time but speed, power and quiet operation are as expected.

29/04/2022 12:45

Review by: Anonymous

Very fast
High quality service

27/04/2022 09:52

Review by: Terry.

Superb service

Ordered Friday arrived Saturday - need I say more!
Thanks.

21/08/2021 14:07

Review by: Bert

Great quality

Great high speed high torque servos in a very small size. No noise also when in neutral position under load. Very nice set of servos.

17/06/2021 12:31

Review by: Anonymous

very tiny servos

Everything seems allright. Couldn‘t test it so far.

07/06/2021 13:32

Review by: Trevor

KST X06 Servo

Have used KST servos in the past with great results. These X06’s are super light and accurate. They suited my needs perfectly. Also prompt service from Hyperflight!

01/05/2021 09:55

Review by: Nick.

Great. Fantastic. Outstanding.

OK I am a fan of hyper flight, but if your not it's because you haven't used them yet. The X06 is a servo, it's just a servo. Wow no chatting with its friends precisely doing what it's designed to do. Powerful little fellow too. Recommended 😁.
Delivery UK to UK one day. Outstanding 👍.

06/04/2021 13:26

Review by: Robby B

Lovely little servos

I bought a couple of these to replace the 2 Bluebird AMG's in my Elf because the constant buzz of the AMG's finally pushed me over the edge. The KST06's are totally silent and just about fit into the Elf with the lugs still on (with some trimming of the very central leading edge. Lugs left on because I'll rob the servos from the Elf later in the year). I'm quite happy to give up a couple of grams for the extra quality that the KST's offer over the Bluebirds

02/04/2021 12:24

Review by: Ian Harvey

micro elevator swervo

As usual, good advice from Neil and very happy with this recommendation.

07/03/2021 03:41

Review by: Robert Rent

Small. light and accurate. Usual excellent Hyperflight sales and shipping.

24/12/2020 17:24

Review by: Anonymous

Kst06

Three words. Precision, Speed, Micro.

04/12/2020 11:14

Review by: Paul B

KST X06 Servo - 1.8Kg.cm 0.07s 6.4g 7mm.

Great Service as always from Hyperflight. These servos certainly compliment the rest of the KST range with a look of quality and very quiet operation, they have been installed using the plastic frames which are available from Hyperflight, make sure you keep the four very small screws supplied with the servo as you need two to hold the servo in the frame(there are no screws supplied with the frame), Not flight tested yet but will work hard being installed in a D40 so time will tell.
Thank You

31/10/2020 16:03

Review by: Tommy

Usually never buying Mk.I anything but wanted to have slightly smaller servos for elevator and rudder on my newly acquired Progress dlg. First impressions are good, the Kst works very civilizedly and quietly. Much smaller than X08 which helped fitting them in. No flying yet.

04/10/2020 08:14

Review by: Tony Whittaker

KST NEW 06

Just got a pair. I wanted the "iphone11" of small servos, and I got that. Small, quality, quiet, smooth. Fine on 1S lipo. Just what I wanted, the Rolls Royce of DLG servos.
