KST DS589MG Servo - 9.2Kg.cm 0.08s 40.0g 15mm

Product Code: KST-DS589MG

(3 reviews)

Price: $54.64 save 15%

Description

The new KST DS589MG is a very powerful high voltage contactless servo suitable for helicopter cyclic and all fixed wing aplications. At 15 mm thick and 43 g weight it is reasonably small and light, considering its excellent 9.2 kg.cm of torque and 0.08 sec/60° speed.

The KST DS589MG a similar size and torque as the well regared MKS HV737 and is faster and better value.

This servo uses a potentiometer for positon feedback. Also see the KST M589 servo which is the same size but uses a magnetic position sensor.

KST DS589MG Servo Specifications

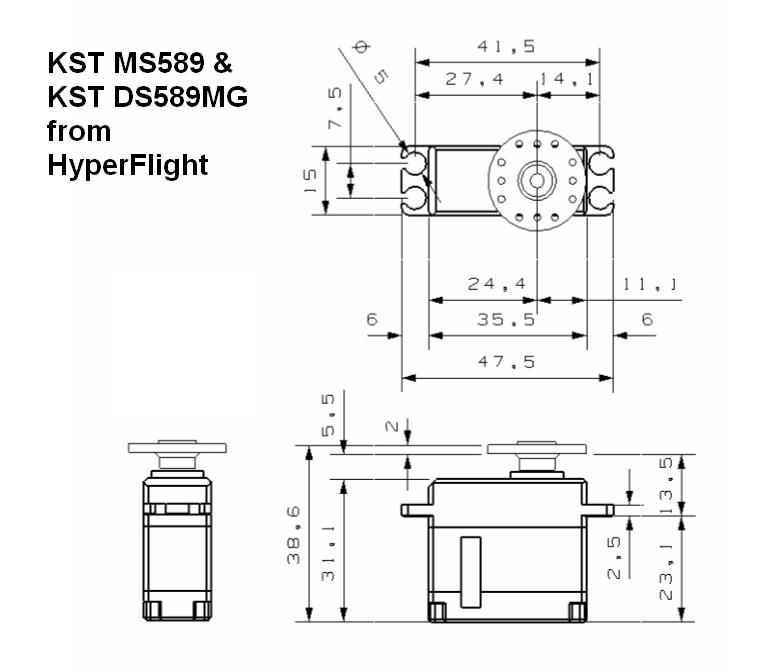

Body dimensions	35.5 mm wide x 15.0 mm thick x 32.5 mm high	1.40" wide x 0.59" thick x 1.28" high
Max dimensions	47.5 mm wide x 15.0 mm thick x 37.0 mm high	1.87" wide x 0.59" thick x 1.46" high
Stall torque (6V)	6.5 Kg.cm	90 oz.in
Stall torque (7.4V)	8 Kg.cm	111 oz.in
Stall torque (8.4V)	9.2 Kg.cm	128 oz.in
Weight	40 g	1.41 oz
Lead length	29 cm	11.4 in
Operating speed (6V)	0.1 sec/60°
Operating speed (7.4V)	0.09 sec/60°
Operating speed (8.4V)	0.08 sec/60°
Operating voltage	6V to 8.4V
Operating temperature	-10 to 60 °C
Bearings	2 Ball bearings
Gear material	Metal alloy
Case material	Aluminium alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	900-2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	4 plastic output arms, 1 arm retaining screw, 4 mounting screws, bushes and gromets
Optional accessories

More details

KST DS589MG Spec Sheet [116kb]
