Infusion Slope Soarer and Warmliner 2m

INFUSION goes straight into your veins! Made by the same manufacturer as the well regarded Introduction F5J and Inside F5J the Infusion is designed to wow you with a new stimulation for your bloodstream!

With a wingspan of 1.95m, the 3-piece and 4 servo wing of the Infusion makes it an agile model with a wide range of applications. Easy and forgiving take-off, flight and landing characteristics, and with a wide speed range due to the fully cambered wing profile. By drooping the flaps and ailerons of the Selig 7012 profile the slope type glider design can be transformed into a lamblike glider with a surprisingly good thermal performance. Using the "butterfly" braking vertical descents from great heights are safe and a minimum of space is required for landing.

The Infusion can be built as a pure glider for slope soaring sites that do not allow motors, or a powerful motor can be installed to give hotliner-like climbs. Fitting a motor makes you independent of the flying site and allows a larger radius of action and "riskier" thermal tracking on slopes. The recommended propulsion - consisting of the BL outrunner Hacker A20-12XL, a 3-cell LiPo with 1300mAh capacity and the CamCarbon 10x6 - allows lots of climbs to thermally amazing heights and spectacular "rescue operations", if the lift on the slope is not as good as expected. Due to the light weight, 10s of engine run time per climb are absolutely sufficient.
For the glider and slope purists among you we offer a separately available Infusion Glider Conversion Kit

The Infusion is not recommended for beginners because of the fast climb and sensitive controls. For all the advanced pilots: Get it, enjoy the good quality of the kit, build it with enthusiasm, and have heavenly flights wherever you are!

Typical for this manufacturer, solid tubular spar construction with pullwinding spars. Compared to pultruded tubes these have a much higher bending and torsional strength. Precisely laser cut wooden construction, simplest construction (3D-puzzle). 3-piece wing, planked flat-built tailplane, removable elevator in front of the rudder (optional), 90° deflectable landing flaps (bottom mounted), integrated wing connectors in the main spar, innovative (tool- and tape-free) fixation of the outer wings. The main feature of the wing is the tubular carbon spar, onto which the laser cut ribs are threaded. Half-ribs in the front section of the wing ensure good airfoil accuracy and prevent the covering film from collapsing in this section of the profile. Stylish wingtips ensure an elegant appearance. The fuselage is consistently designed for the use of small brushless outrunners. With nearly 2m of wingspan, an all up weight of around 900 g, a wing area of 32dm² gives a wing loading of 28g/dm².

The fuselage (built from balsa, reinforced by "clicked in" plywood formers) is doubled-up by lightweight plywood underneath the wing. The milled bulkhead is already prepared for the mounting of a Hacker A20-12XL. The kit includes - besides laser cut parts - the GRP tube spars, GRP leading edges and all linkages and small parts. A multi-coloured construction plan (Scale 1:1) and widely illustrated German building instructions are included. The kit doesn't include any glues, covering material, power drive, batteries and RC components. As covering we recommend Oracover or Oralight covering film.

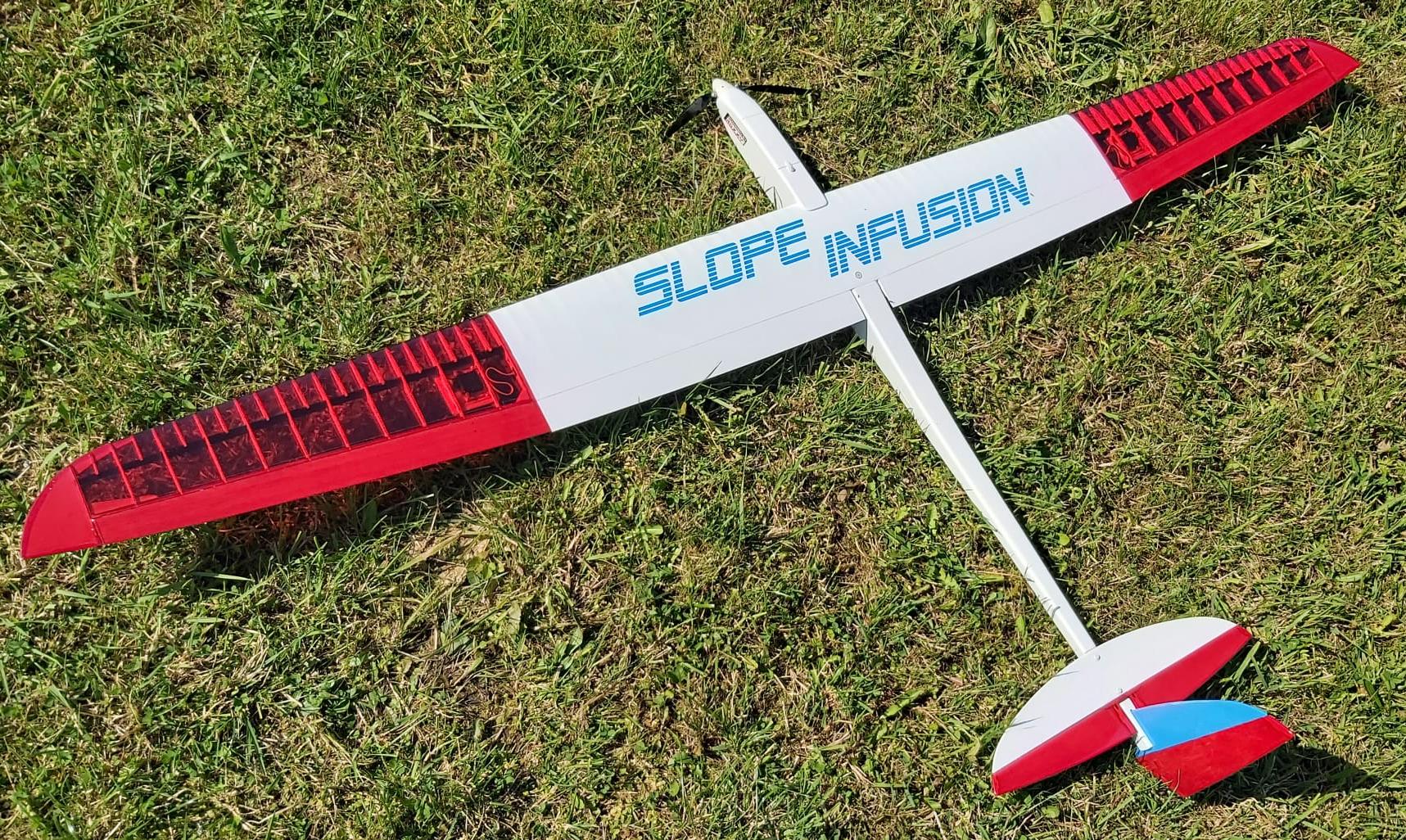

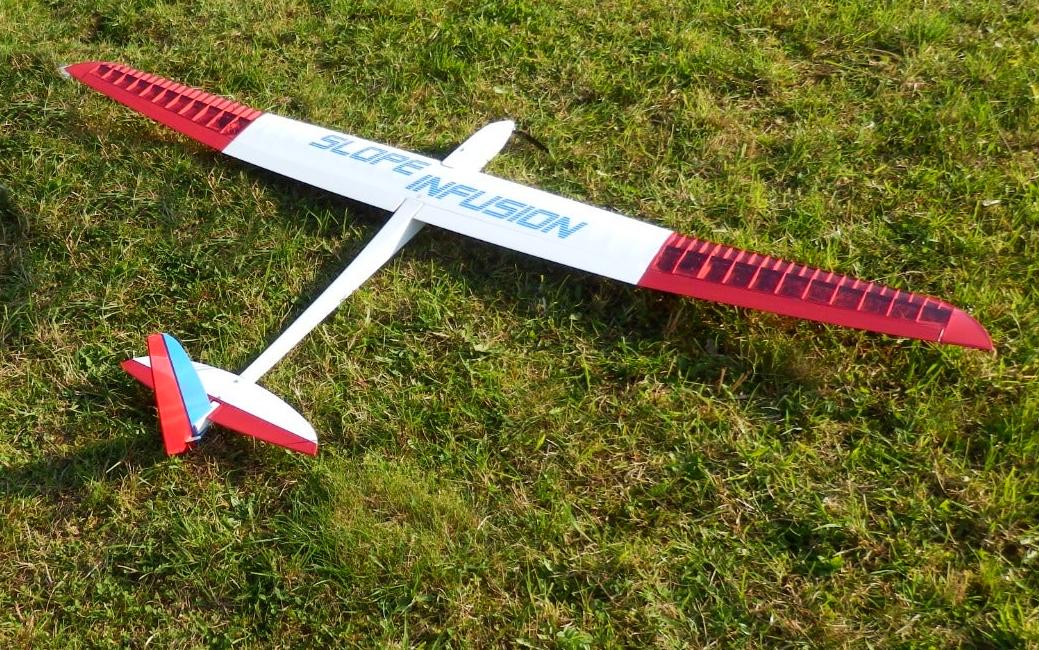

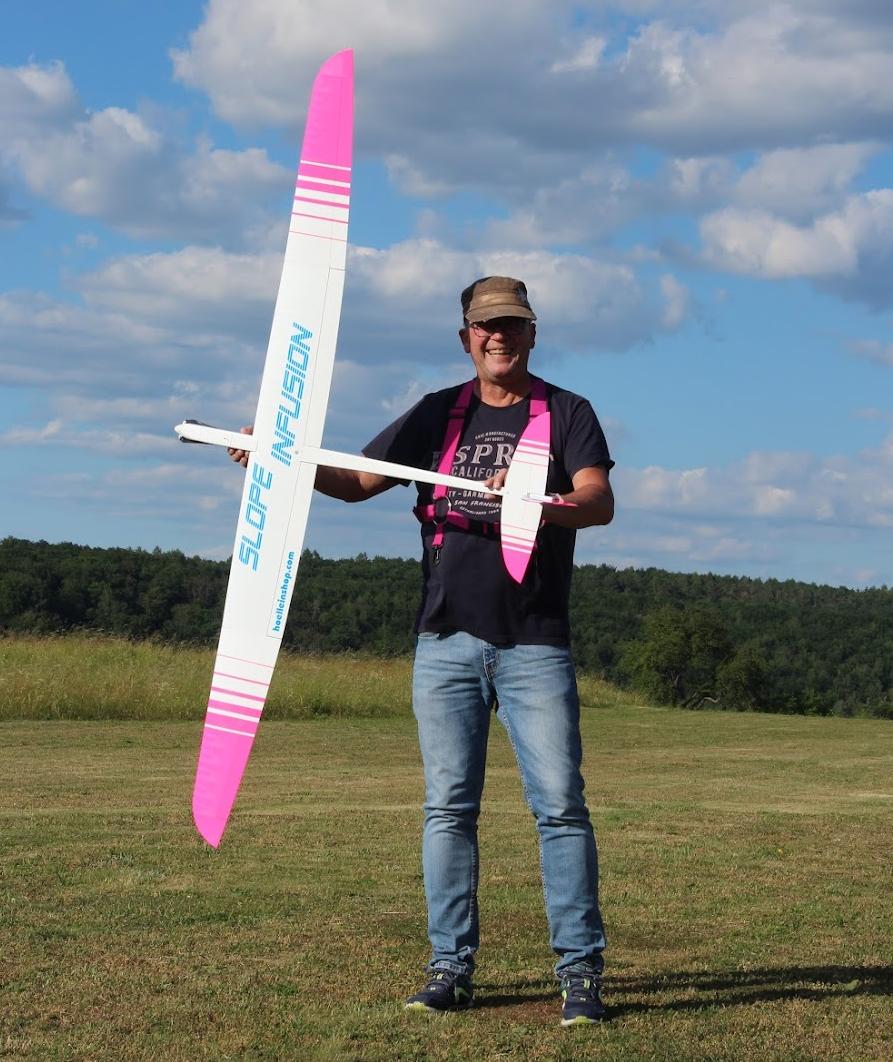

This model is called Slope Infusion in other places. See this RCGroups thread for more info.

Infusion Specifications
Wing span	1.95 m	77 in
Wing area	32.0 dm2	496 sq in
Length	111 cm	43.7 in
Flying weight from	900 g	31.7 oz
Wing loading	28.1 g/dm2	9.2 oz/sq ft
Aspect ratio	11.9
Wing airfoil	Selig 7012
EDA (dihedral)	4.0º
Spinner Diameter	35 mm
Centre of Gravity	TBA mm from wing leading edge
Controls	Rudder, elevator, flaps, throttle

Recommended RC
Rudder & Elevator	CHA DS09, MKS DS6100, MKS HV6100, Blue Bird BMS-125, Blue Bird BMS-126, KST X08, KST DS113
Ailerons	KST X08H, CHA DS09, MKS DS6100, MKS HV6100, MKS HV6110, Blue Bird BMS-115, Blue Bird BMS-125
Flaps	KST X08H, CHA DS09, MKS DS6100, MKS HV6100, MKS HV6110, Blue Bird BMS-115, Blue Bird BMS-125
Receiver	7+ channel rx to match your transmitter
Power	30A - 60A ESC with 3A - 5A uBEC

Powertrain Recommendations
XPower F2915/12 XLight	3S 1300mAh LiPo, 10x5 or 10x6 (recommended)
XPower F2919/10 Light	3S 1300mAh LiPo, 10x6, 10x8
Hacker A20-12XL	3S 1300mAh LiPo, 10x6
Axi 2217/16 V2 Long	2S 1500mAh LiPo, 12x6
Axi 2217/20 V2 Long	3S 1300mAh LiPo, 12x6
Axi 2220/16 V2 Long	2S 1500mAh LiPo, 12x6 or 12x7
Axi 2220/20 V2 Long	3S 1300mAh LiPo, 12x6 or 12x7
Dualsky XM3036EG-11	3S 1300mAh LiPo, 10x6, 10x8, or 11x6
Mega 16/15/4	2S 1500mAh LiPo, 8x4
Mega 16/15/5	3S 1300mAh LiPo, 7x5

Note the Dualsky, XPower and Mega motors do not have rotating cases and have rear mounted power leads and are thus easier to mount.
Choose a battery capacity after completing the model that will assist obtaining the correct CG.

Infusion Typical Weights
Total structure	572 g	20.2 oz
Wiring	20 g	0.7 oz
Receiver	10 g	0.4 oz
Rudder servo	12 g	0.4 oz
Elevator servo	12 g	0.4 oz
Wing servos (4)	38 g	1.3 oz
Speed control	25 g	0.9 oz
Motor	78 g	2.8 oz
Prop & spinner	23 g	0.8 oz
Battery	110 g	3.9 oz
Flying weight	900 g	31.7 oz
