HyperFlight 30A BLHELI-32 ESC with 5A SBEC

Product Code: HF-BLHELI-30
 (24 reviews)

Price: $38.34

Out of stock, notify me when back in stock

Description

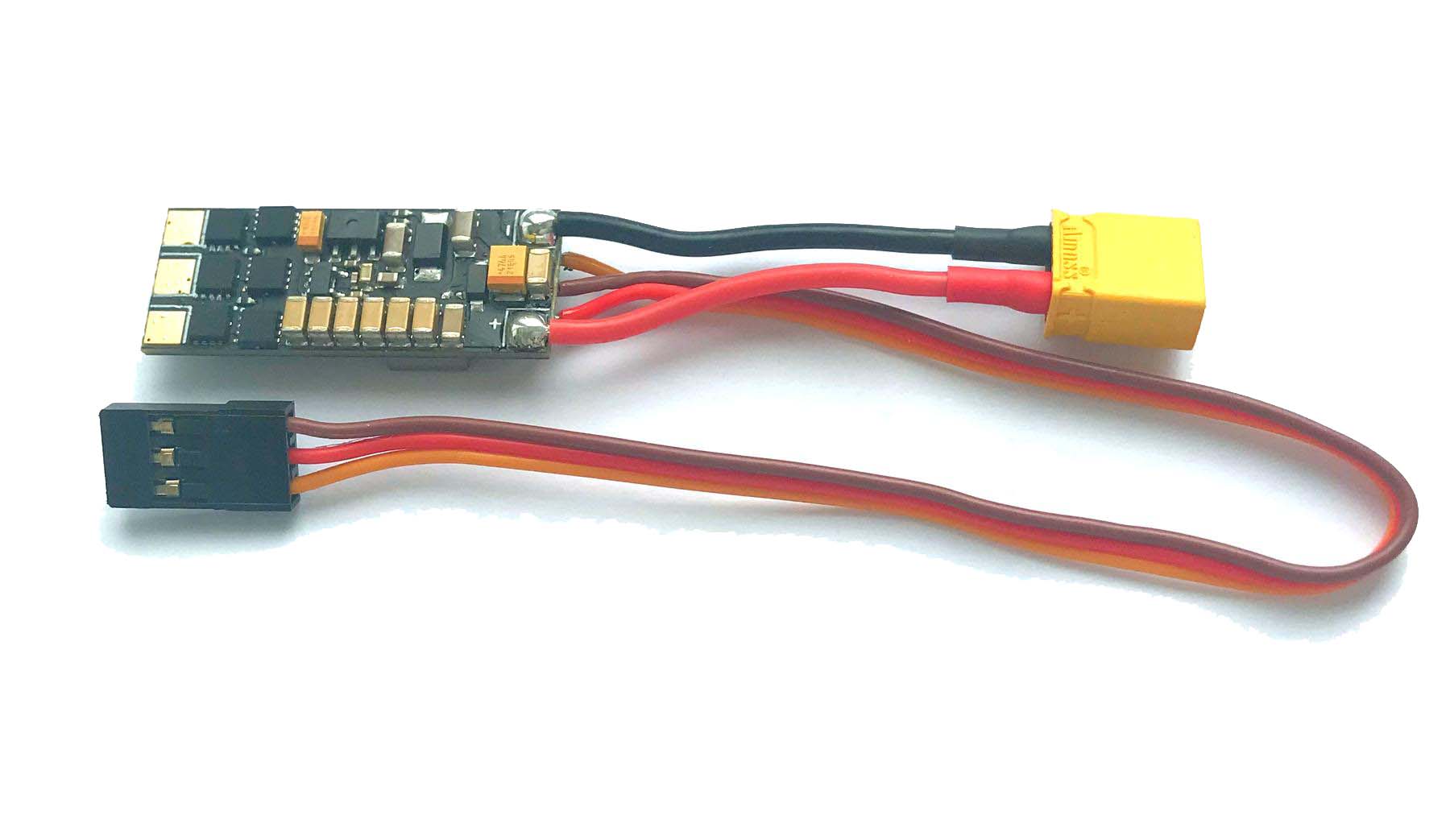

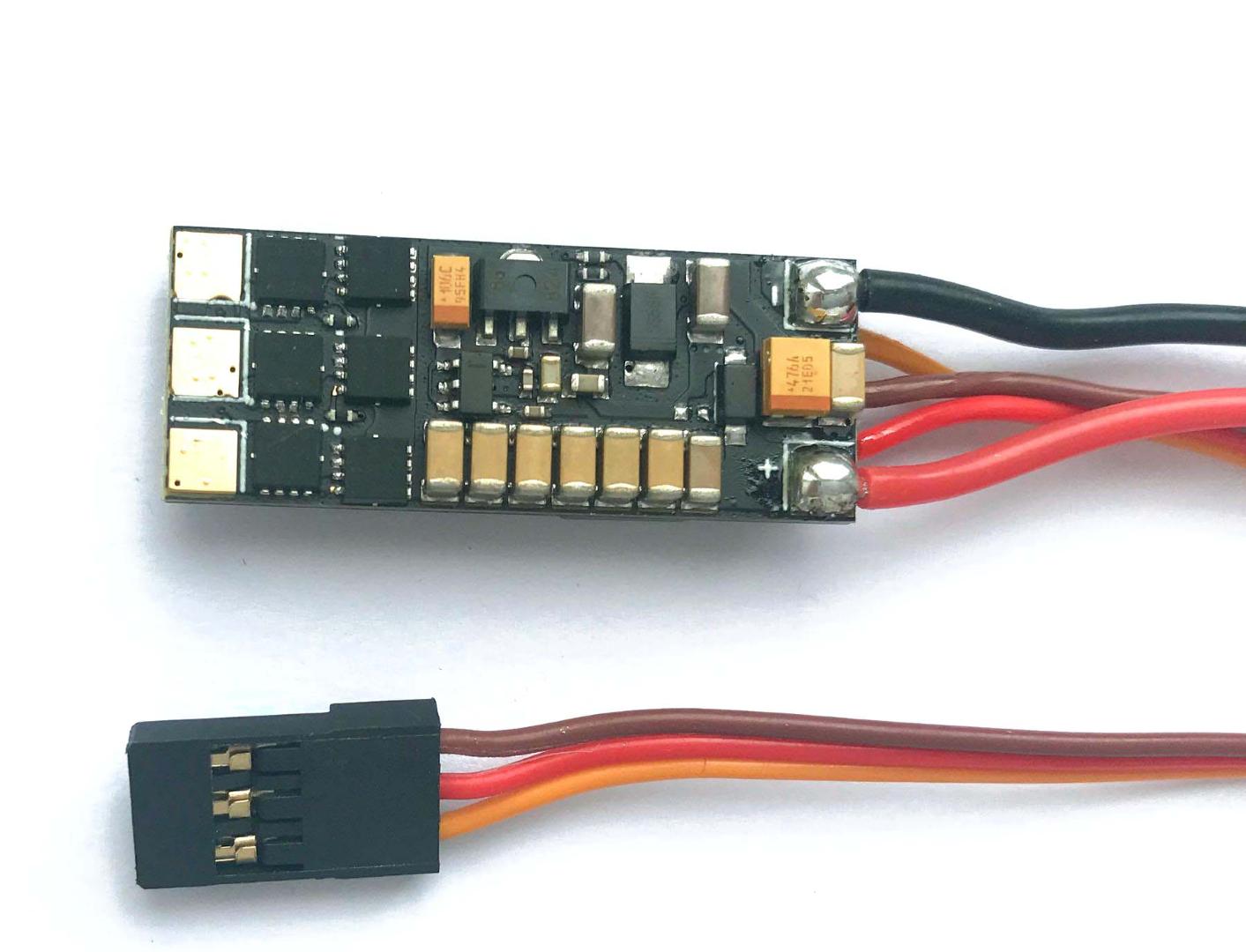

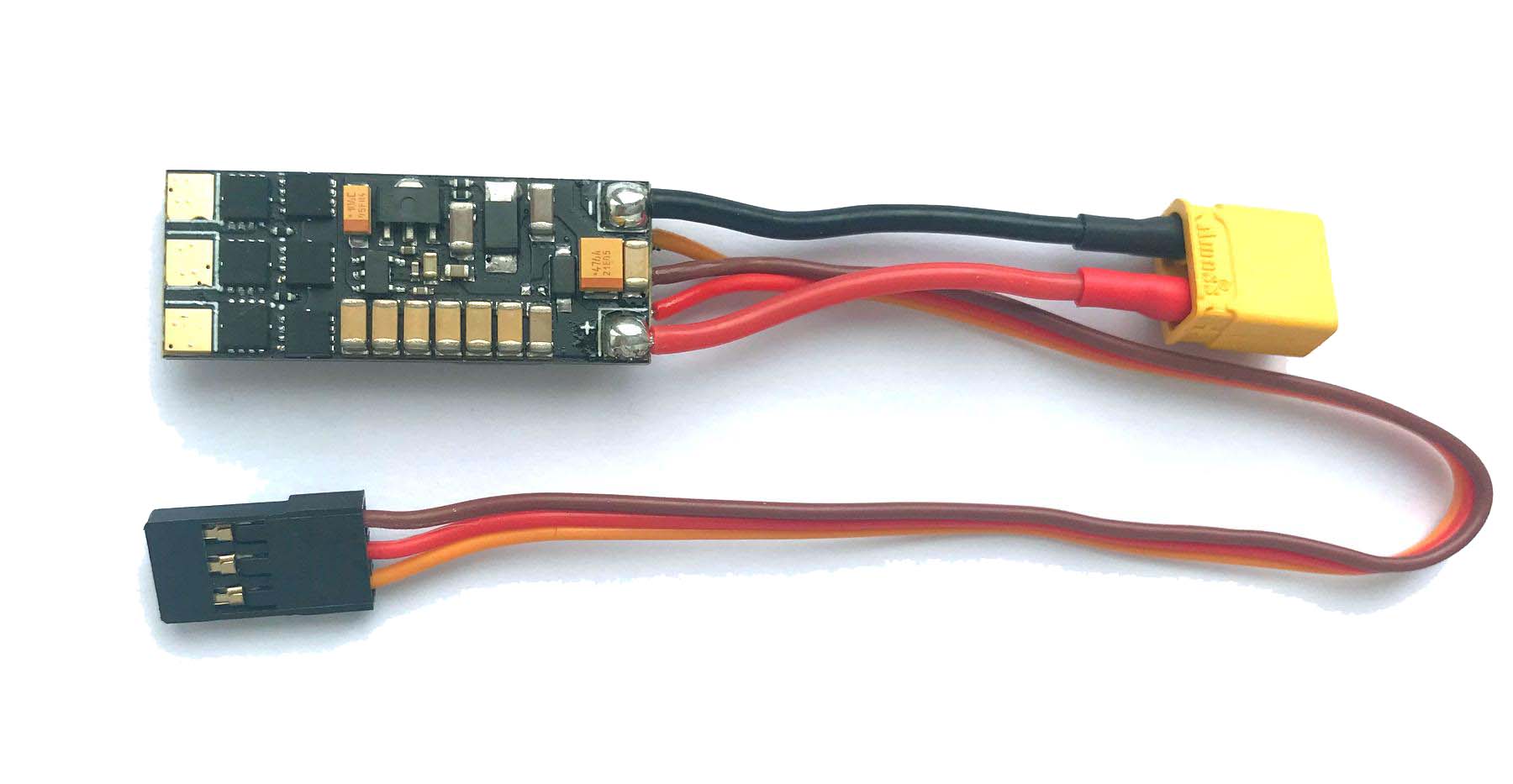

The highly regarded HyperFlight 30A BLHELI-32 ESC is a brushless speed control with a 5.3V 5A SBEC and an XT30 connector. Lightweight and very compact, this ESC is perfect for F5L, F5-RES, F5K electrified DLGs and all small high performance models.

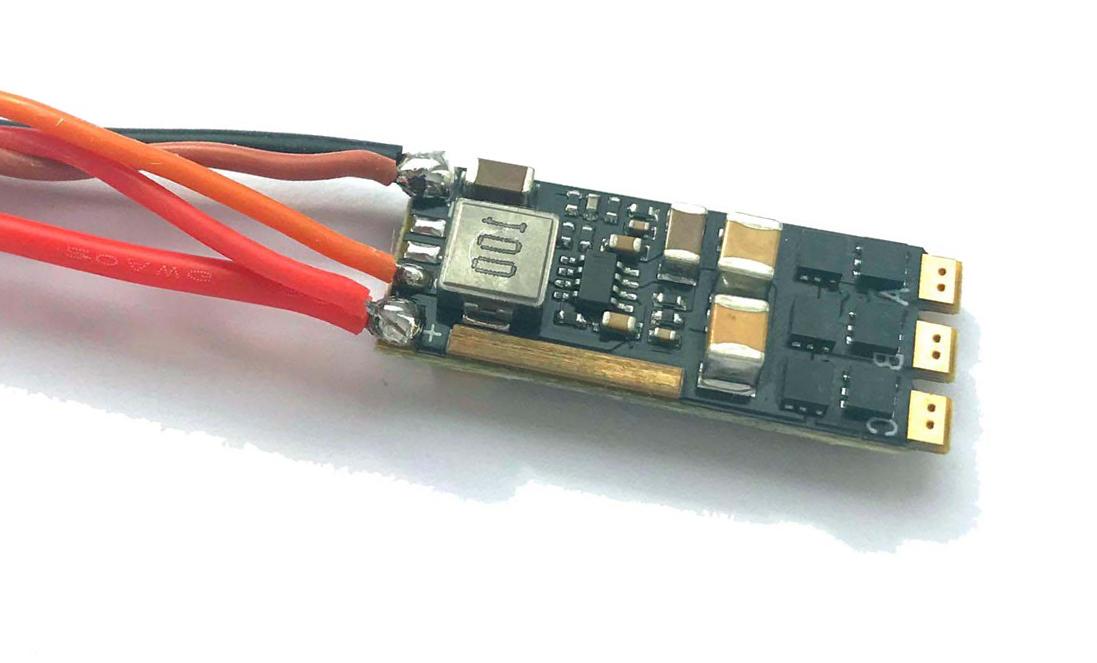

The three motor wires need to be soldered to the lands on the PCB. Swap any two wires if the motor rotates in the wrong direction.

Ready to go with brake on. Unless you want to change the setup (unlikely) this is a plug and play solution - no programming is required.

December 2023 - this latest delivery has a more powerful 5A BEC circuit and a slightly longer battery connector wire, as requested by customers.


HyperFlight BLHeli32 30A ESC with 5A SBEC Specification
Continuous Current 30A
Peak Current 33A for 10 seconds
Battery 2S - 3S LiPo
SBEC 5.3V @ 5A

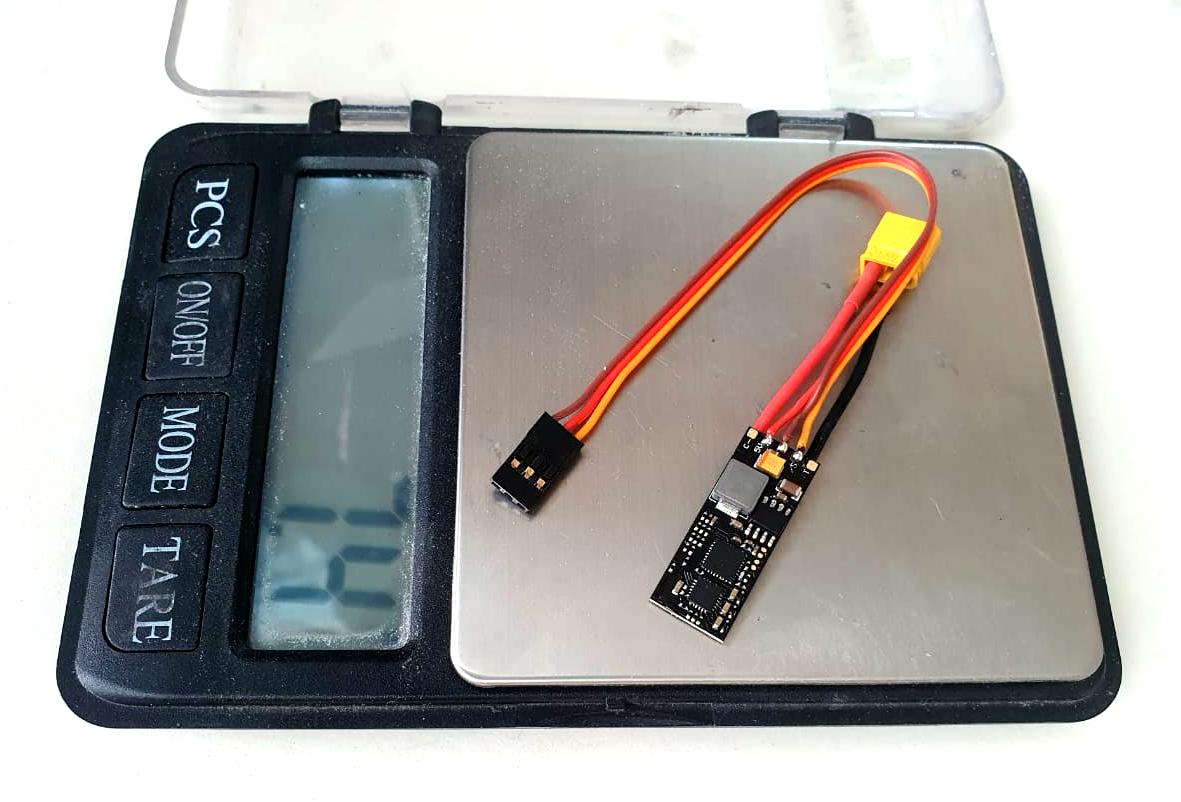

Weight inc leads and XT30 plug 8.3g
Weight without leads 4.5g
Firmware BLHeli_32
Programmable Yes, with an Arduino or our BLHELI-USBprog interface
PCB Size 33mm * 14mm
Battery connector 7 cm wires, XT30 plug/socket fitted
Motor connector lands on PCB
RC wire length 15 cm

Reviews 24


 Review by:

Good quality

Good product. I guess there are smaller ESC's but this one does the job


 Review by:

HyperFlight 30A BLHELI-32 ESC with 5A SBEC.

These little beauties have never let me down. If you are flying an E-res model (2metre wingspan) then you can't go past one of these. Great value. As always great service and very quick to get to Australia. Thanks Neil.


 Review by:

HyperFlight 30A BLHELI-32 ESC with 5A SBEC

Always Quick and good products from Neil and his team


 Review by:

Reliable ESC

Ive brought and used at least 10 of these units. They are very small , ideal for small powered gliders or any other model requiring 30A or less. They come with brake on to assist prop folding. They can be adjusted if you have BL heli 32 software on your PC but I always use them out of the box. I noticed that some of my fellow modellers have what appears to be random beeps if you dont activate the ESC for 10mins. This is the Lost Model Alarm or Beacon (in the software). This too can be set to off but I haven't felt the need


 Review by:

Hyperflight BLHeli ESC

These are good units, compact and reliable, which I've bought before. I've tested this one but it's not in use yet.


 Review by:

Hyperflight 30A BLHELI-42 ESC with5A SBEC

This is an excellent, highly recommended, very compact unit. Sets itself up and therefore easy to use. Had initial problem with jittering on prop at motor start which was easily cured by using a start delay (ramp start) on my tx motor settings.


 Review by:

regolatore

Ottimo e leggero


 Review by:

Best ESC

Simply amazing. Ideal for light ships. Will let electrons flow easily. Using it with a 2S Lipo.


 Review by:

Great service as usual. Fast delivery and esc works great.


 Review by:

Superb service

Ordered the ESC and CAM Height Limiter in the afternoon and delivered next day lunchtime. Great service. All fitted that evening and really pleased with the performance. Looking forward to this years competitions. Thanks Neil.


 Review by:

BLHELI-32 ESC

very good product very easy to program using BLHELI 32. if using a switch to turn on the motor you have to program a delay ( 1 sec is enough) otherwise the esc will shut down ..... this is a major concern when flying


 Review by:

Great ESC

This is my favorite ESC for F5L planes. It’s small, works great without any reprogramming.


 Review by:

Perfect ESC for F5L


 Review by:

Great ESC!

Amazing ESC, use it in my Riddick wing with a T30 2800Kv motor and 3s Lipo. Is similar or the same to the 30A Vladimir's Model ESC, which is no longer available because of the war in Ukraine that sadly made Vladimir to stop activities for now. Great it is programmable with Arduino, but Hyperflight already prepared it with the right parameters for my use!


 Review by:

Ottimo prodotto


 Review by:

Excellent value


 Review by:

I can count on the same time for post delivery to nz. I get most parts from neil and never had a propblem.havnt. Used the latest ones yet. But I'm sure they will be as good as the other parts I have got. Always the first place i shop at


 Review by:

Great product, works great and great service. Thanks Hyperflight!


 Review by:

More on this ESC

These are so good I bought another one.
Very impressive ESC. When you need to correct or change settings just connect up to BLheli suite with an Arduino nano and away you go.

Oh and as per usual Neil's service is terrific.


 Review by:

Great little ESC. Suits OzeRes and LARC 1806 perfectly.
,,and as usual Neil's service and delivery is superb.


 Review by:

HyperFlight 30A BLHELI-32 with SBEC & XT30 Plug.

Very happy with this controller for my T30 motor in my ERES Purito. I first used the Pulsar 15A but that was pretty unreliable.
Cheers.


 Review by:

HyperFlight 30A BLHELI-32 with SBEC & XT30 Plug

This is a great little unit and finally (through no fault of HyperFlight) I have received my second HyperFlight 30A BLHELI-32 with SBEC & XT30 Plug. The freight time was a little longer than usual but I put that down to the COVID situation. Well done Neil and Staff.


 Review by:

25A BLHELI

Love this one,use it in my FIREBLADE from GCM !
Very speedy service from Neil,within 3 days in Holland 👍


 Review by:

Super light speed controller/ESC.

This is a perfect speed controller for lightweight gliders of around 1.5 span. It is small and extremely light, approximately just 8 grams not including connecting wires. Neil has also programmed this ESC for gliders with the brake switched on. I have been using it in my Blaster and it performs perfectly and remain cool even after a sustained motor run. Just Excellent.
