CN Models 25mm Spinner for 3mm shafts

Product Code: CN-SPINNER-25-3

(4 reviews)

Price: $27.70

Description

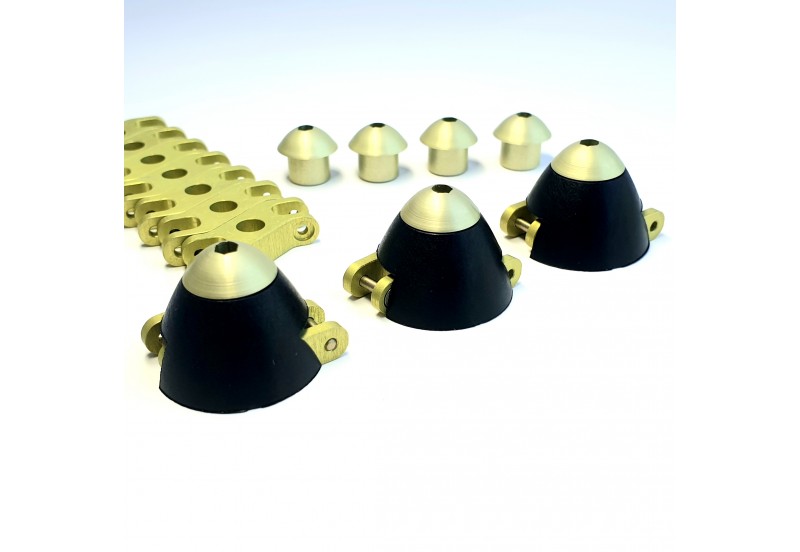

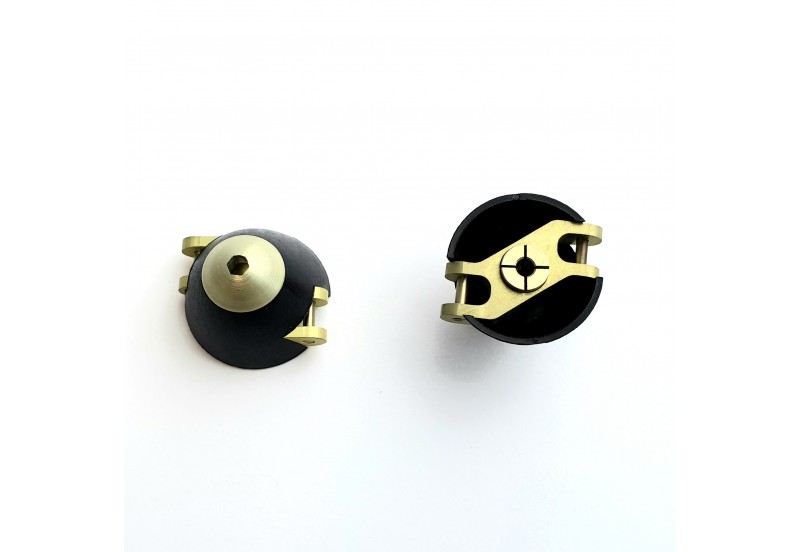

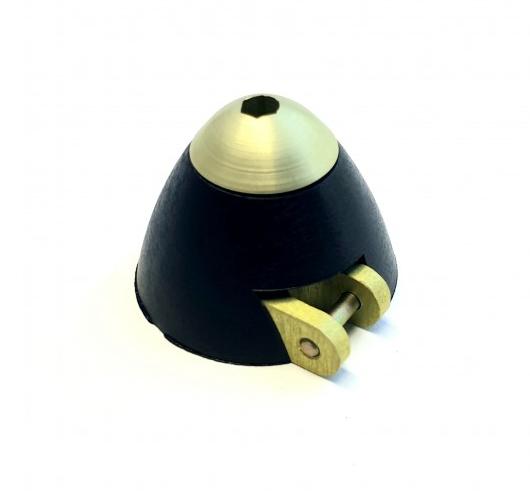

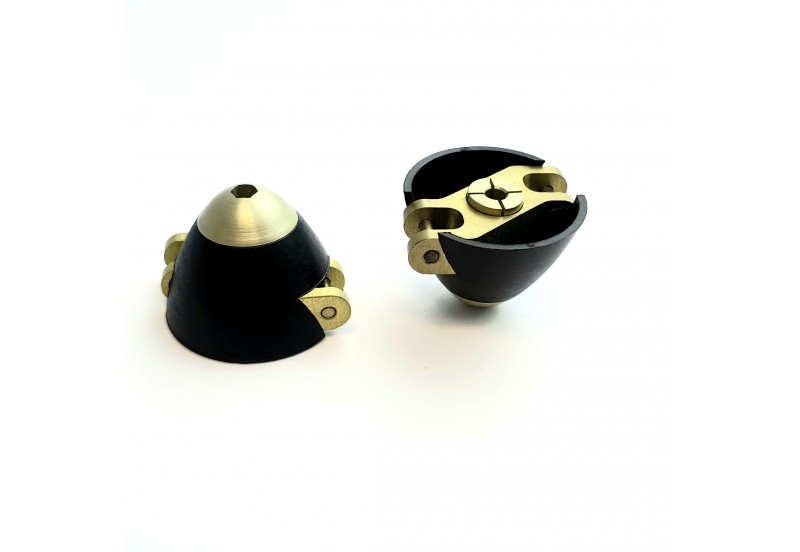

The CN Models 25/3 Spinner is a great spinner for small F5K class type electric gliders. It has a diameter of 25 mm and is suitable for motors with a 3 mm output shaft. The yoke/hub is beautifully CNC machined from aluminium alloy and anodised to increase the surface hardness and corrosion resistance. The black shock proof cone is molded from a glass/nylon composite.

The yoke has been designed to help ensure that the prop blades fold closer to the fuselage to minimise drag when gliding.

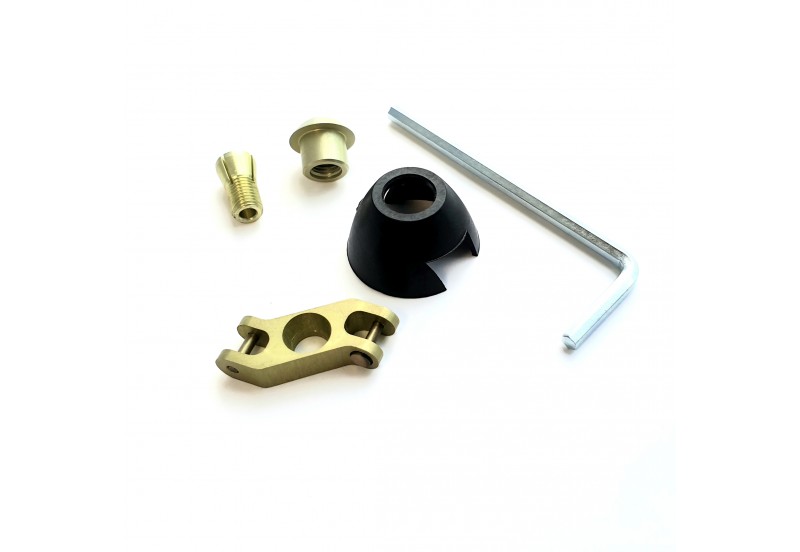

The spinner is attached to the shaft by a 3mm hole collet (supplied) which is tightened using the included allen key applied to the front of the assembly.

CN Models 25/3 Spinner Specification
Diameter	25 mm
Motor shaft	3 mm
Distance across hinge pins	19 mm
Prop hinge pin diameter	2 mm
Prop blade root width	5 mm
Weight	5.5 g

Reviews 4

11/05/2024 11:30

Review by: Tony Truelove

Spinner, great

Brilliant little 25mm spinner, beautiful engineering, for my elec DLG. The service, as usual was excellent, next day here in the UK. Thank Neil

22/09/2023 15:47

Review by: Faust Parker

Great hub for small electric folding props, but a little overpriced especially for those of us not on the sterling pound. Same for the GM 6.5 X 4 folding props.

25/05/2022 13:30

Review by: Glen

Little gem of a spinner

CN Models make some very high quality items and this is definitely one of them. Glad Hyperflight is able to offer these, and at a good price too.
Fits perfect to my F5k model. Looking forward to getting it into the air soon now

12/05/2021 12:48

Review by: Derek Richards

excellent service next day delivery, very good quality.
