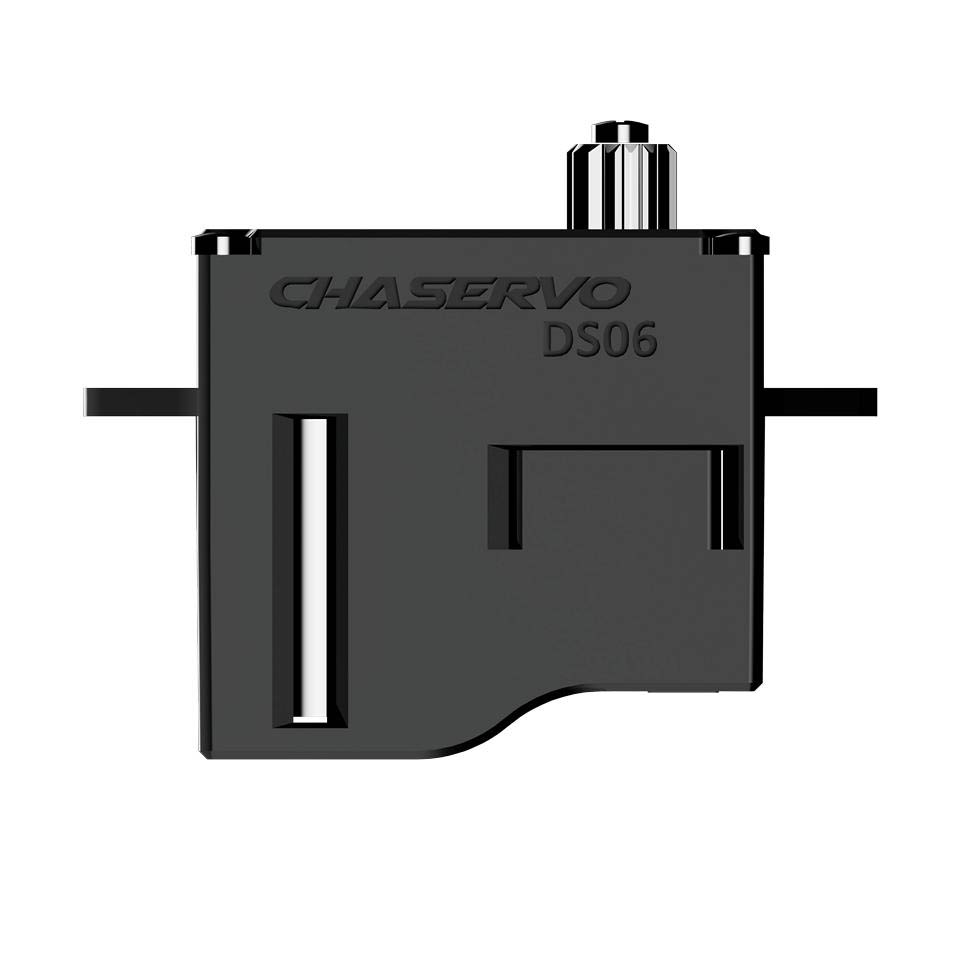

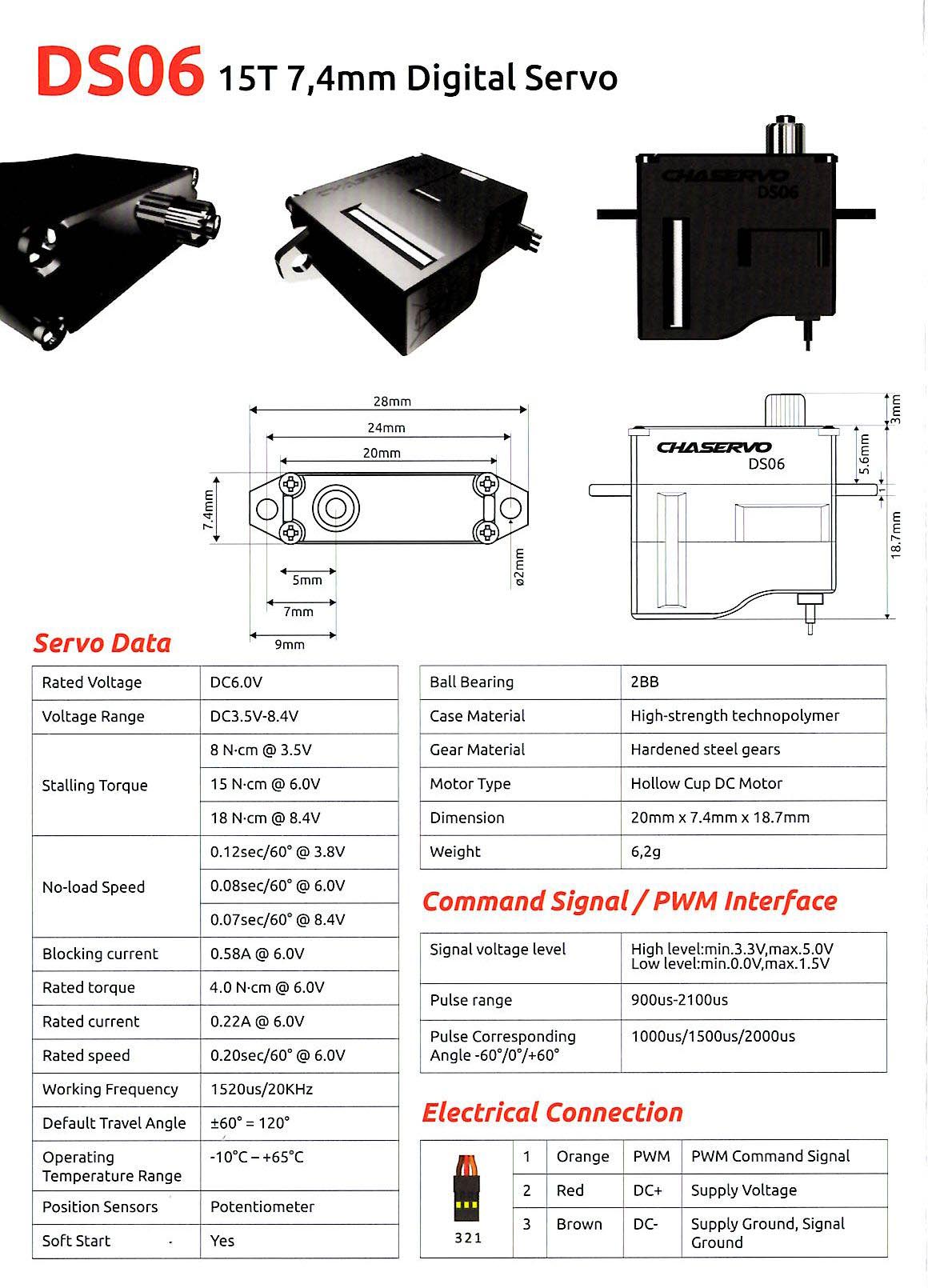

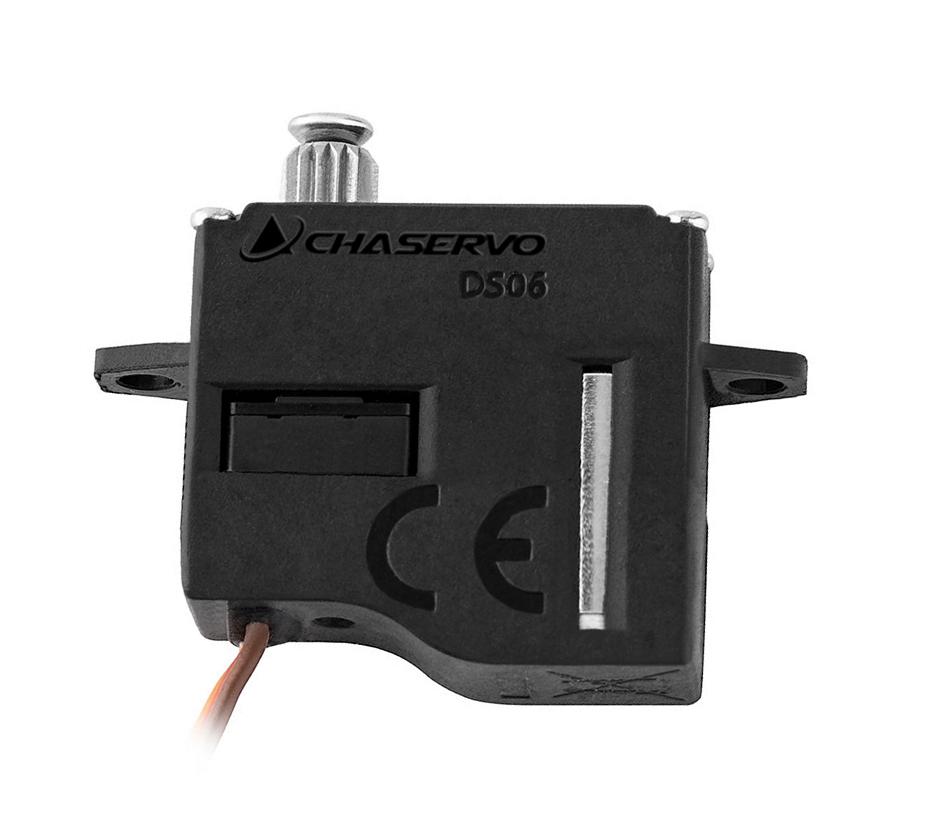

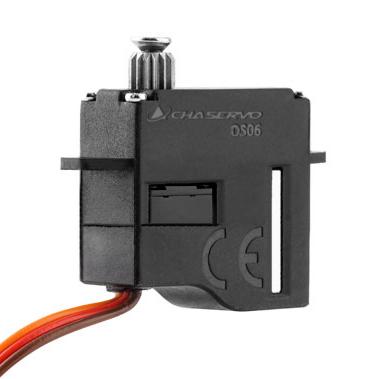

| CHA DS06 Servo Specifications | ||
|---|---|---|

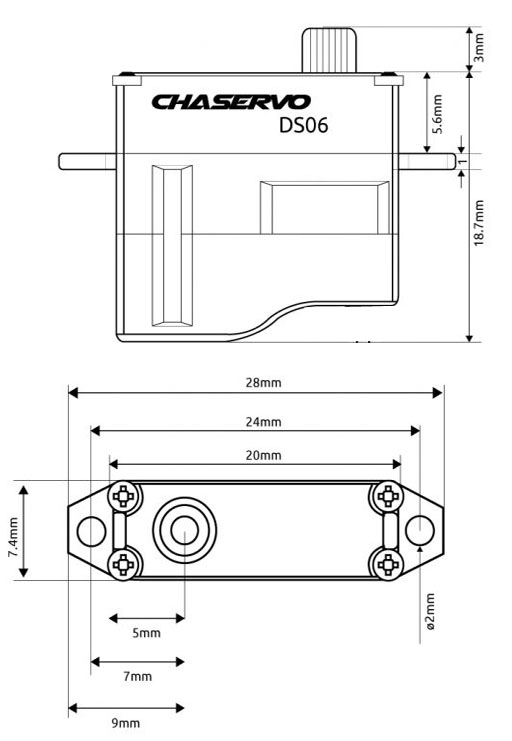

| Body dimensions | 20.0 mm wide x 7.4 mm thick x 18.7 mm high | 0.79" wide x 0.29" thick x 0.74" high |
| Max dimensions | 28.0 mm wide x 7.4 mm thick x 22.0 mm high | 1.10" wide x 0.29" thick x 0.87" high |
| Stall torque (3.8V) | 0.8 Kg.cm | 11 oz.in |
| Stall torque (6V) | 1.5 Kg.cm | 21 oz.in |
| Stall torque (8.4V) | 1.8 Kg.cm | 25 oz.in |
| Weight | 6.2 g | 0.22 oz |
| Lead length | 14 cm | 5.5 in |
| Operating speed (3.8V) | 0.12 sec/60° | |
| Operating speed (6V) | 0.08 sec/60° | |
| Operating speed (8.4V) | 0.07 sec/60° | |
| Operating voltage | 3.8V to 8.4V | |
| Operating temperature | -10°C - +65 °C | |
| Bearings | 2 ball bearings | |
| Gear material | Hardened steel | |
| Case material | High strength technopolymer | |
| Motor type | 7mm coreless | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 1 µs | |
| Pulse width for ± 60º | (60°L) 1000 µs - (0°) 1500 µs- (60°R) 2000 µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |

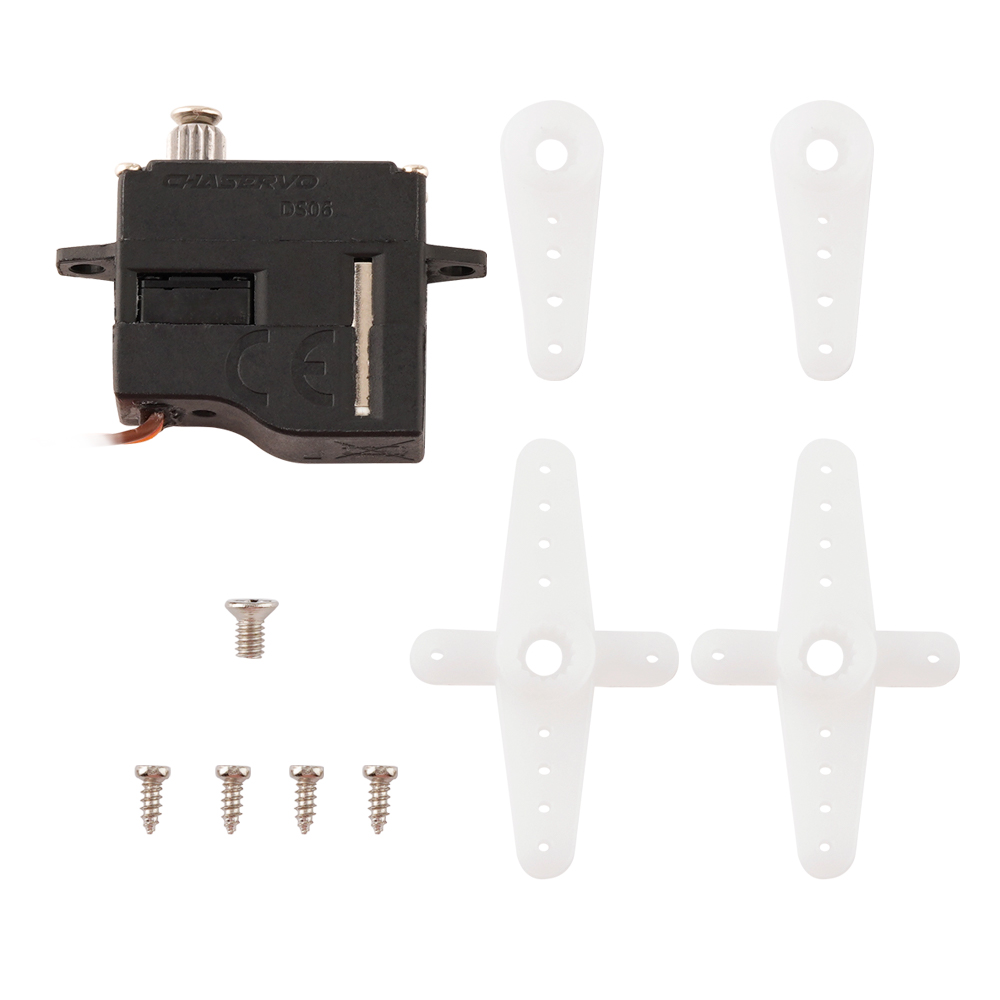

| Supplied accessories | 2 large plastic output arms, 2 smaller plastic arms, 1 arm retaining screw, 4 mounting screws | |
| Optional accessories | Ply Frame for CHA DS06, Ply Frame for Two CHA DS06 | |
Review by: Chris Goins
My current favorite D47 replacementCheaper than MKS HV4070, cheaper than KST X06, but really just as good. Bonus, the pulley for KST servos also fits these servos. I have them in an NRJ, a Strike 3, and a Deviant. Excellent performance on 1S HV Lipo. No double centering in any of them, would recommend to anyone from sport flyer to competition pilot.
Review by: Roland
Lots of choice, fast service and delivery, I recommend it.
Review by: Rex A
Cha DS06 servoVery happy with my previous purchase of 3 servos. The 2 in use currently do the job perfectly so I've bought another to give me a pair for the next build. Took a while to get here but that's not uncommon with international shipping.
Review by: Rex A.
CHA DS06 ServoSuperb service as usual halfway around the world to NZ. These tiny servos look well made and bench test as expected. Soon to be fitted to an F5K model so haven't used them yet and can't comment further.
Review by: Jon
Arrived promptly as always. 👍
Review by: Artis Kirsteins
Came fast, in small bubble letter one servo.
Product great, precise, robist, fast, thin.
Review by: JOHN jay CARPENTER
Better prices and lower shipping cost than a close US supplier.
