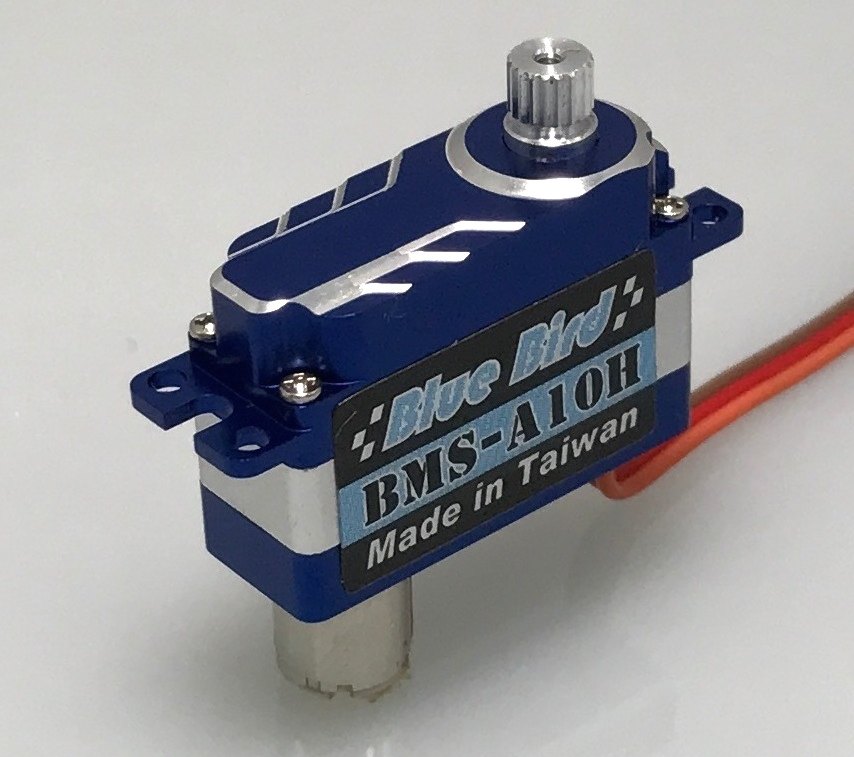

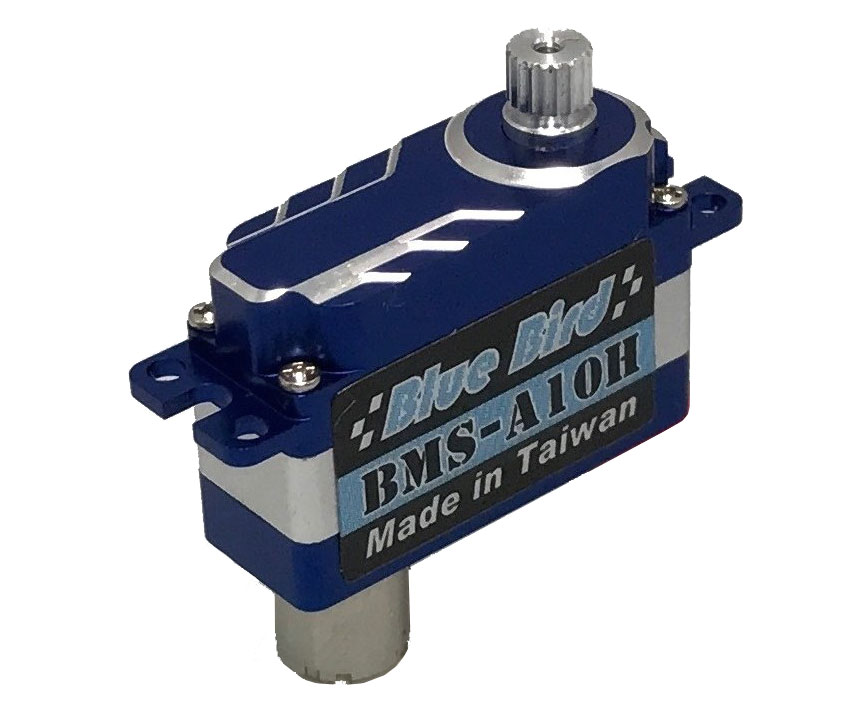

| Blue Bird BMS-A10H Servo Specifications | ||
|---|---|---|
| Body dimensions | 22.0 mm wide x 8.0 mm thick x 15.3 mm high | 0.87" wide x 0.31" thick x 0.60" high |
| Max dimensions | 28.0 mm wide x 8.0 mm thick x 25.3 mm high | 1.10" wide x 0.31" thick x 1.00" high |
| Stall torque (3.7V) | 1.6 Kg.cm | 22 oz.in |
| Stall torque (6V) | 2.4 Kg.cm | 33 oz.in |
| Stall torque (8.4V) | 3.2 Kg.cm | 44 oz.in |
| Weight | 7.4 g | 0.26 oz |
| Lead length | 15 cm | 5.9 in |
| Operating speed (3.7V) | 0.15 sec/60° | |
| Operating speed (6V) | 0.1 sec/60° | |
| Operating speed (8.4V) | 0.07 sec/60° | |
| Operating voltage | 3.7V to 8.4V | |
| Operating temperature | -20 to 60 °C | |
| Bearings | 2 ball bearings | |
| Gear material | Precision metal | |
| Case material | Aluminium alloy | |
| Motor type | Coreless | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 2 µs | |
| Pulse width for ± 60º | 1100 - 1900 µs µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |

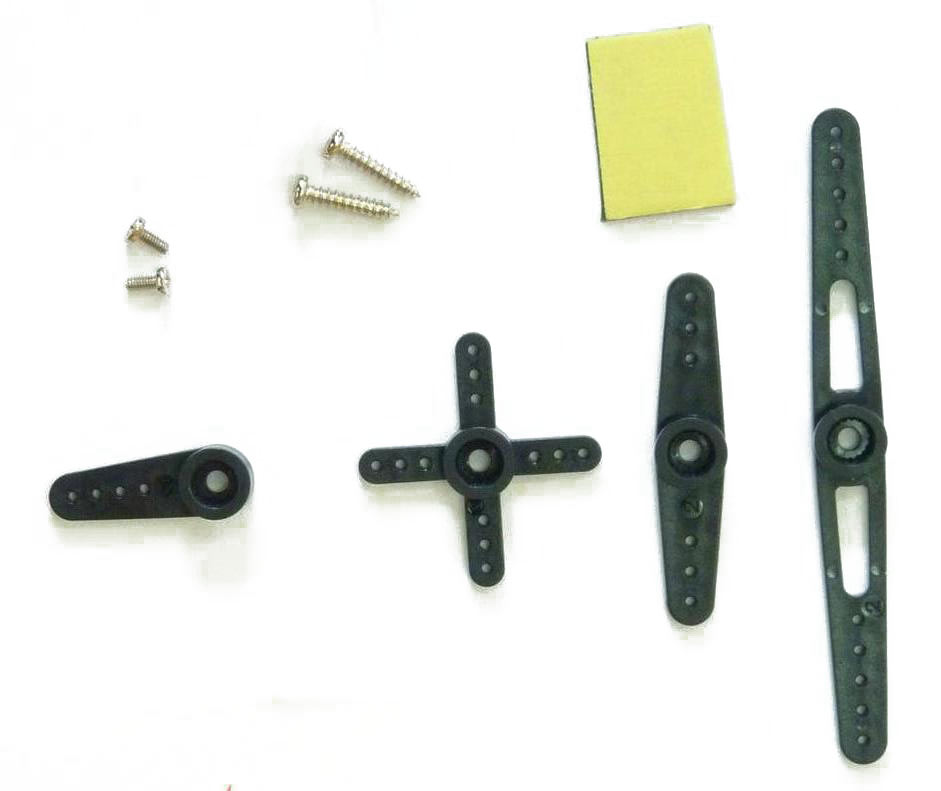

| Supplied accessories | 4 plastic output arms, 2 arm retaining screw, 2 mounting screws | |
| Optional accessories | ||
Review by: Tom Adrian
Måtte ha en slik til hurtig feste for skuffer på hjulaster, den kom og virka heil supert 😊
Review by: Rod
Great service and quality productNeeded these servos for my thesis research. Ordered them on Sunday, shipped on Monday and received 'm on Wednesday in The Netherlands. Great products, quality service and fast shipping, simply excellent!
Review by: Andynr
these servos have just been fitted inside a vtail as it needed an 8mm thick servo. not flown as yet but they seem very good quality and to me a good choice where they are fitted in areas difficult to maintain. Would buy the servos again. The service from Neil has been excellent, second to none.
Review by: Andynr
these servos have just been fitted inside a vtail as it needed an 8mm thick servo. not flown as yet but they seem very good quality and to me a good choice where they are fitted in areas difficult to maintain. Would buy the servos again. The service from Neil has been excellent, second to none.
Review by: Andynr
these servos have just been fitted inside a vtail as it needed an 8mm thick servo. not flown as yet but they seem very good quality and to me a good choice where they are fitted in areas difficult to maintain. Would buy the servos again. The service from Neil has been excellent, second to none.
Review by: Ernie Buenafe
Blue Bird ServoThese are excellent quality servos capable of using 7.4 volts. Reasonably priced, I installed these on the Auri DLG powered with a 2-cell lipo receiver pack which increases their holding torque. I would buy them again.
Review by: jaba
Good servoUsing these in Auri with direct 2s. Everything as expected.
Review by: Michael Stern
These are very good DLG servos. They are impressively fast on 1S, so fast I would be afraid to run them on 2S! I have used them in 3 DLGs so far. 2 went to the recent World Champs with my brother and performed faultlessly. One servo had centering issues on arrival and Neil replaced it asap.
The only thing I would say is that, due to them being so fast, they do use more battery capacity than say the KST 08's. I feel the BB may have better centering, but time will tell. I get noticeably more flying time with my KST equipped DLG's.
Review by: Olivier
Excellent servo for F3K. Works very well on 1S
Review by: Claudio Zunino
Very Good micro servos.Surprise with these micro machine. I put the 6 servos in my F5J glider and very well center, power and fast. Thank you Neil from Chile.
Review by: Tommy Westlin
Trying out these Blue Birds for the first time. First impressions are good, they are quite fast on 1s LiPo and center well. Will see how they perform in the long run, but have no reason to doubt them. Thank you Neil for your usual fast service!
Review by: KC
Blue-Bird Got a bad REP when they first started but now they are making some very good high quality servos. These little things are no different! And check out the A207's if you need something bigger.
