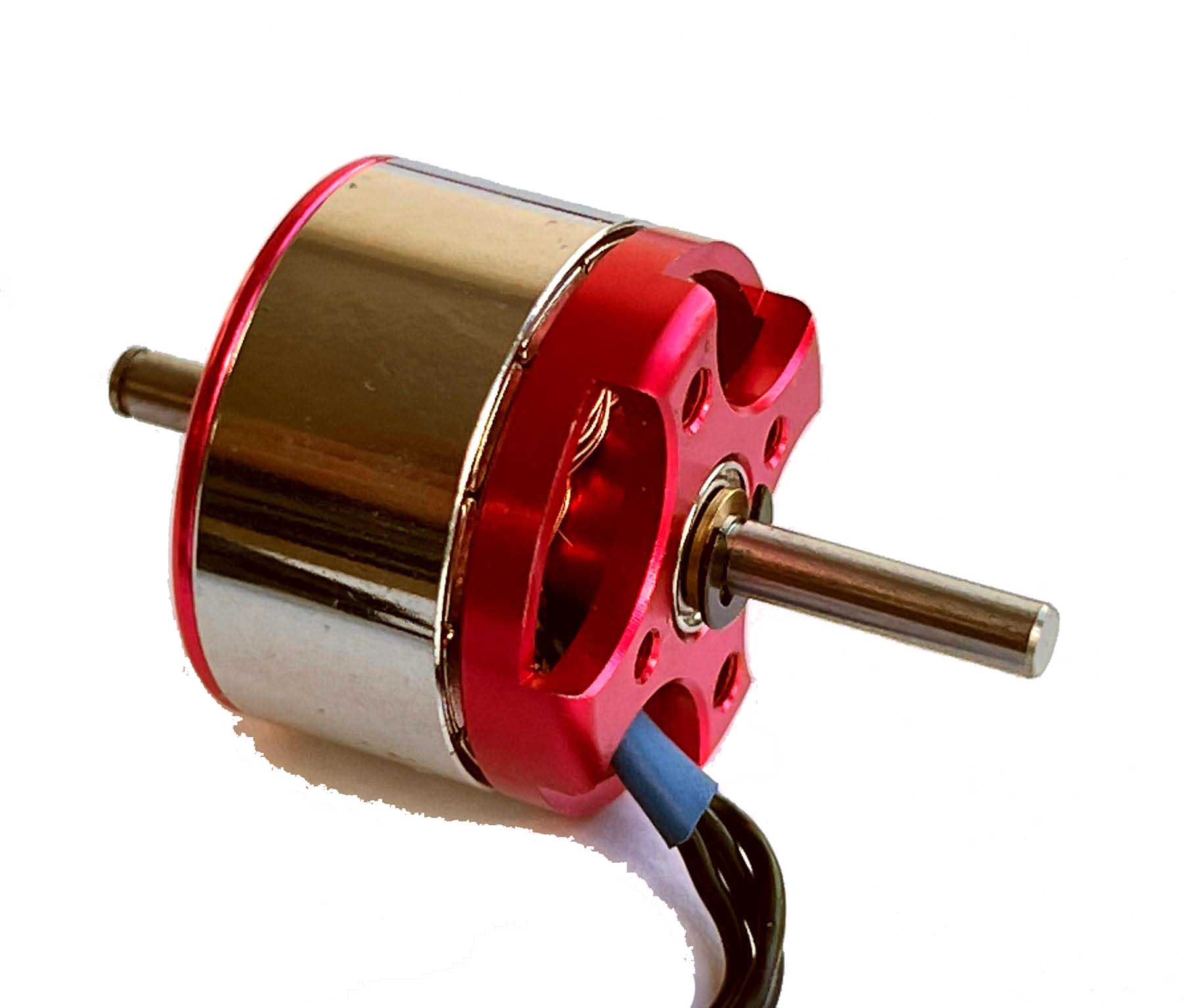

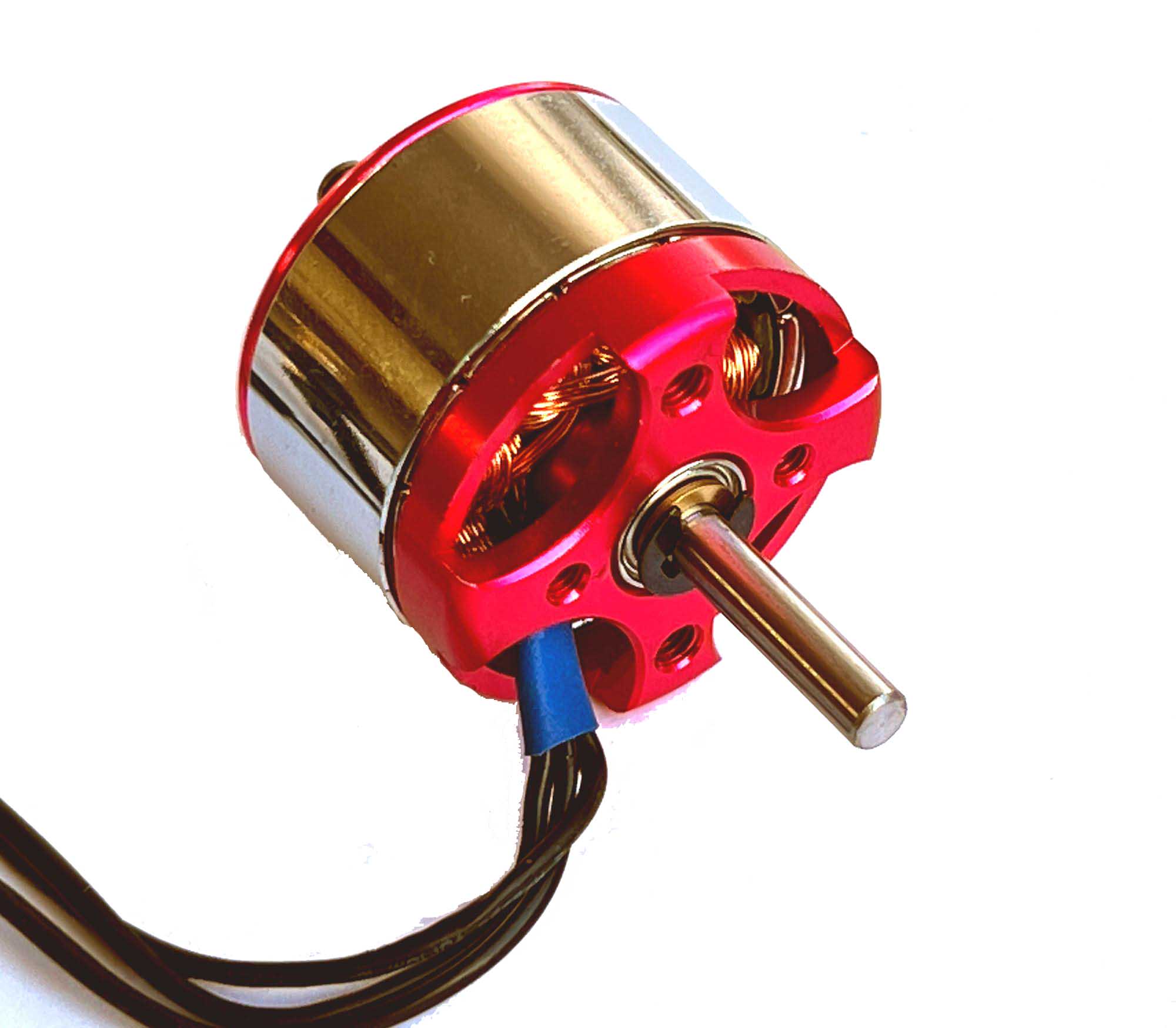

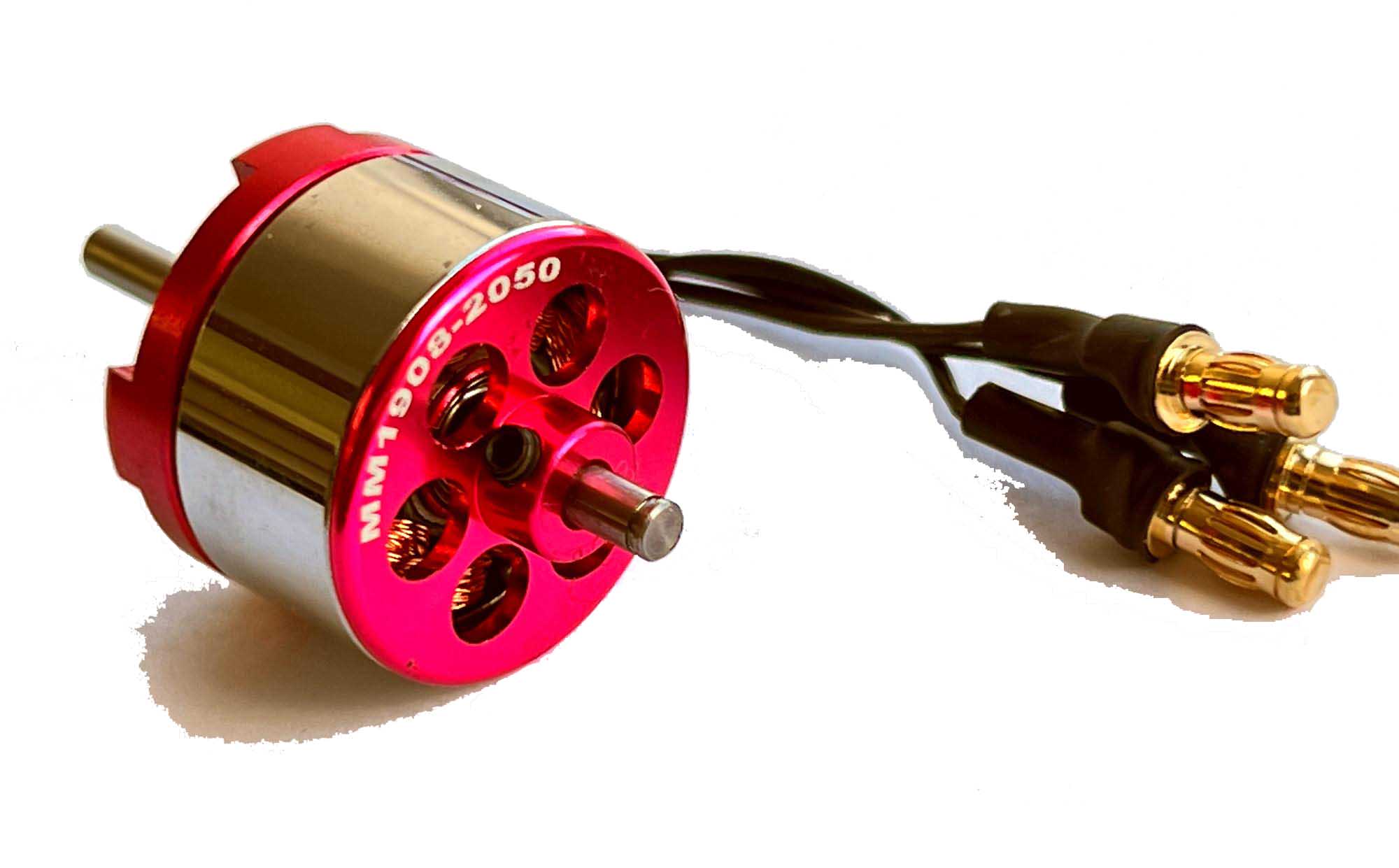

| AEO RC MM1908-2050 / C20 Specifications | |
|---|---|
| Weight | 26g |
| Dimension | 22 mm long by 23 mm diameter |
| Voltage | 7.2V~11.1v, 2S~3s Lipo |
| Kv | 2050 rpm/V |
| Shaft | 3mm diameter |
| Shaft length | 9.5mm |
| Max Power | 14A or 140W |
| Thrust | about 560g on a 7x3.5 prop on a 3S LiPo |
| Thrust | about 490g on a 8x4 prop 2S LiPo |
| Mounting | On the same side to the prop shaft. |
| 2S Prop | 6x3, 6x4, 7x3.5, 7x4 |
| 3S Prop | 5x4, 6x3 |
Review by: Tony Truelove
MotorBrilliant little motor for elec DLG. The service, as usual was excellent, next day here in the UK. Thank Neil.
Review by: Tony Truelove
Great power train for LongshotJust done an elec conversation on my Longshot DLG.
ADH C20 / MM1908-2050 2050 RPM/V 26g Front Mount Outrunner
28amp BLHELI-32 ESC with 3A SBEC
CN-SPINNER-25-3 CN Models 25mm Spinner for 3mm shaft
OA 6x4 Folding prop blades (2mm hinge pin)
What an excellent combination. Goes up like a rocket with a 2s Lipo.
Brillant, next day service from Neil, can't recomend Hyperflight enough!
Review by: Jeff
Neat little motorA neat little motor that I needed for an EPP flying wing. Works fine and can be changed from front to rear mounting.
Review by: Gunther
Great little motor!This is a really well made brushless motor that I use for my scratch built 1.3m glider (250gr). I use it with a 7x3.5 prop and 3s 450mah. Heaps of power for this size of engine and no problems with overheating at all. I use a 15A brushless controller.
Review by: ferruccio
review not possibleUnfortunately I never received the motorea even if I requested it.
I am amazed because I know your seriousness and precision but I cannot write anything.
